UT-08931 - Homelite Blower Carburetor And Fuel Tank Parts Diagram

Blower

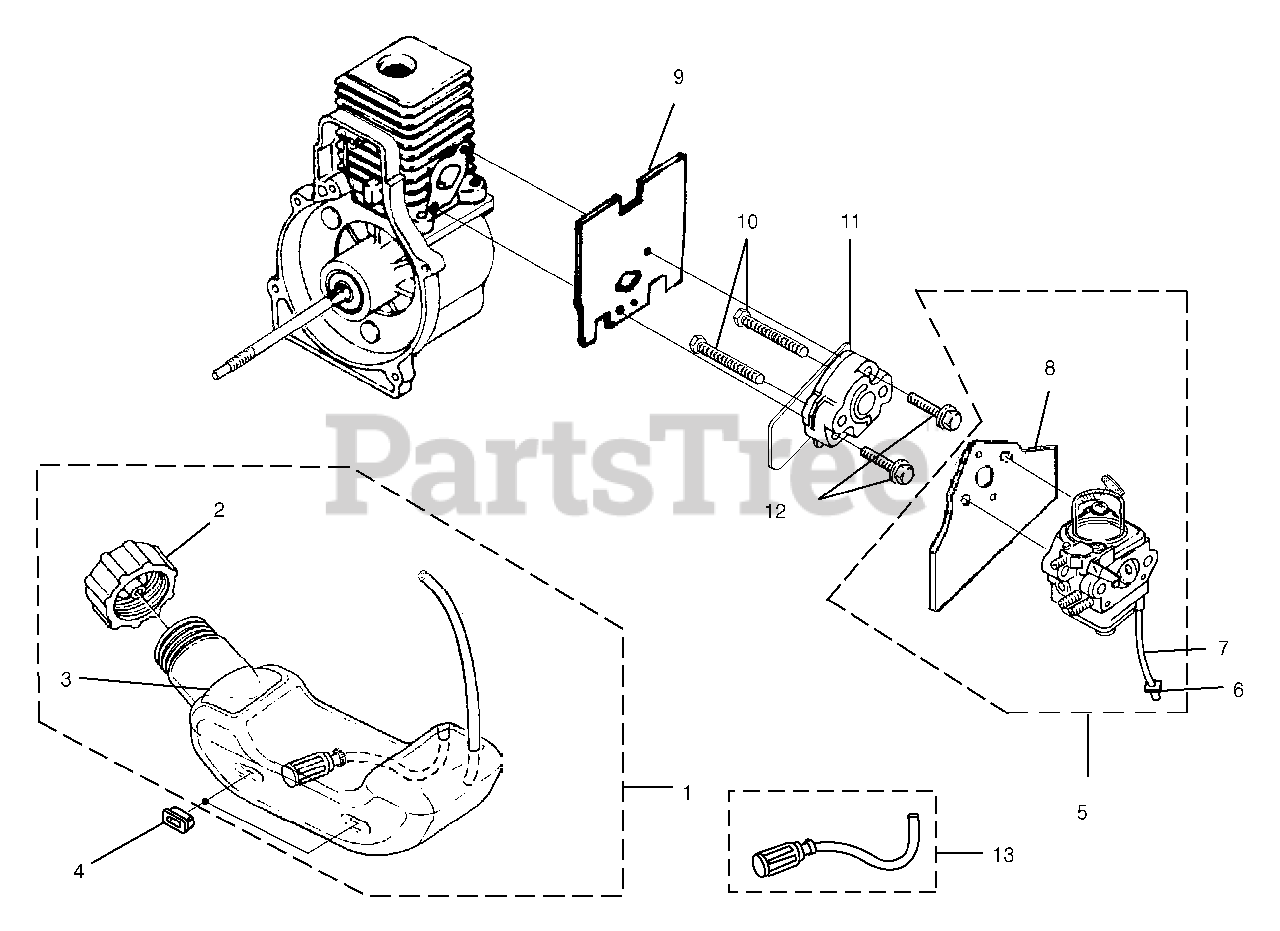

Carburetor And Fuel Tank Parts Diagram

  • Title

1

Homelite 984907001

FUEL TANK KIT
(Superseded to 308123004)

Note: INCLUDES 1-3

$

$

Not available

2

Homelite A09116

FUEL TANK CAP
(Superseded to 300758006)

$

$

Not available

3

Homelite 08684

HEAT SHIELD
(Superseded to 900955001)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 98792

RUBBER BUMPER

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 985232001

CARBURETOR KIT
(Superseded to 000998275)

Note: INCLUDES 5-7

$

$

Not available

6

Homelite 985304001

INLINE FUEL FITTING

$1.99

$

In Stock, Qty 7

0

7

Homelite 0143912

RUBBER TUBBING (3 in.)
(Superseded to 570259003)

$

$

Not available

8

Homelite 983925001

CARBURETOR GASKET

$

$

Not available

9

Homelite 00775A

HEAT DAM GASKET
(Superseded to 900950001)

$1.49

$

In Stock, only 2 left!

0

10

Homelite 04474

SCREW (10-24 x 1 in. HEX HD )

Note: PURCHASE LOCALLY

$

$

Not available

11

Homelite 98768A

HEAT DAM
(Superseded to 518070001)

$

$

Not available

12

Homelite 093221

SCREW (10-24 x 1110 in. PAN HD)
(Superseded to 660662001)

Note: PURCHASE LOCALLY

$

$

Not available

13

Homelite 985077001

FUEL FILTER KIT
(Superseded to 000998272)

$9.49

$

Usually ships in 3-7 days

0
