UT-08930-A - Homelite Yard Sweeper Vac Blower Volute, Fan And Tubes Parts Diagram

Yard Sweeper Vac Blower

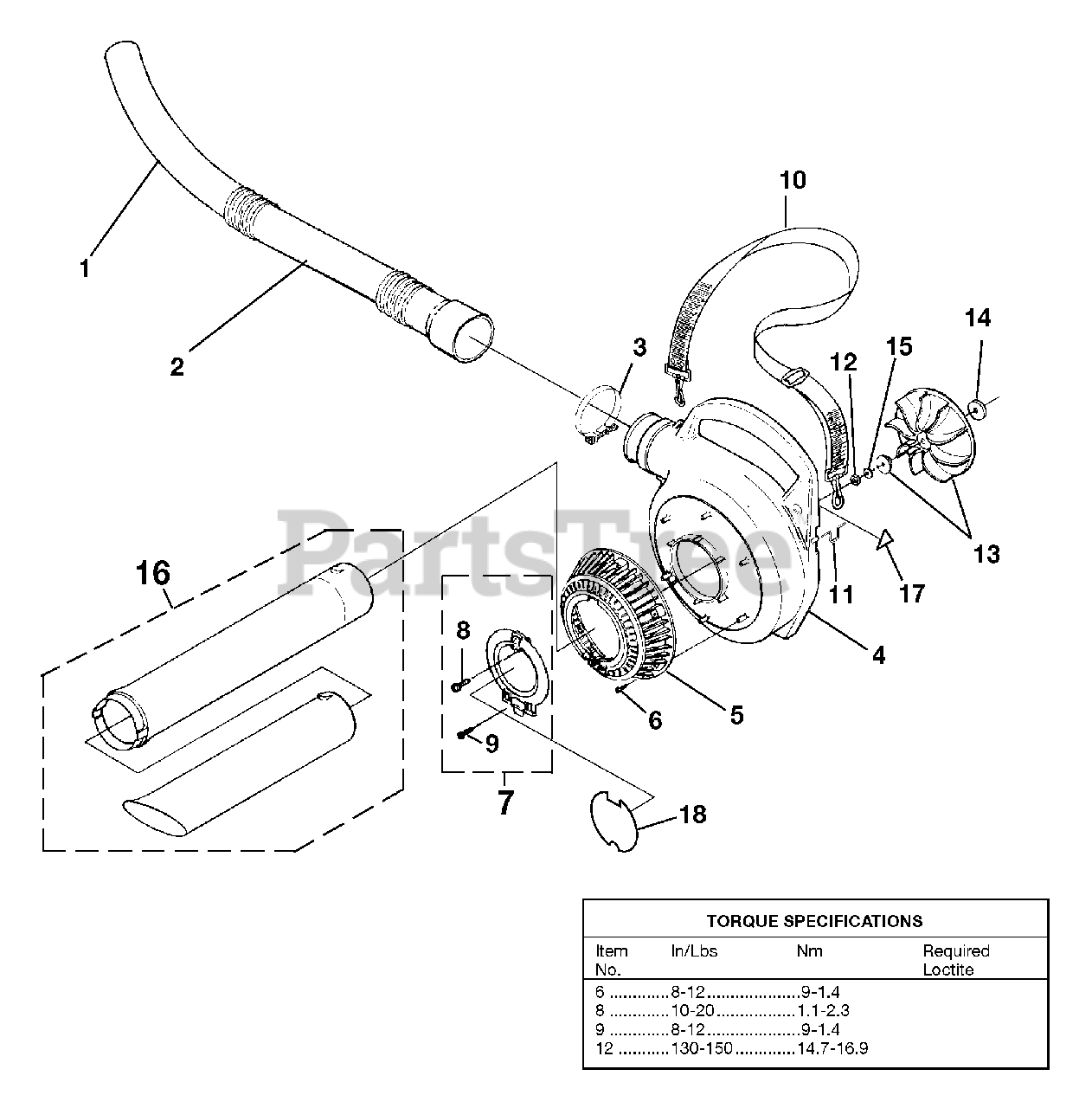

Volute, Fan And Tubes Parts Diagram

  • Title

1

Homelite PS02942

NOZZLE, ROUND

$

$

Not available

2

Homelite PS02885

TUBE, UPPER YB

$

$

Not available

3

Homelite 00433B

CLAMP w/Fasteners
(Superseded to 348005003)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite PS03169

OUTER VOLUTE HOUSING

$

$

Not available

5

Homelite 00320

BLOWER VAC GRILLE

$

$

Not available

6

Homelite 82528

SCREW-Thread Form. (#6 X 3/8)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 984910001

ACCESS DOOR KIT

Note: INCLUDES 7-9

$

$

Not available

8

Homelite 82312

SCREW-Thread Rolling (#10 X 5/8)

$

$

Not available

9

Homelite 82376

SCRE W-Thread Form. (#8 X 1/2)
(Superseded to 660669001)

$1.49

$

In Stock, only 3 left!

0

10

Homelite 96337C

SHOULDER STRAP

$

$

Not available

11

Homelite 00398

WIRE LOOP

$

$

Not available

12

Homelite 81124A

NUT-Hex (3/8-24)

$

$

Not available

13

Homelite 984911001

BLOWER FAN KIT
(Superseded to UP06826A)

$

$

Not available

14

Homelite 03165

WASHER-Flat
(Superseded to 650016001)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 03163

WASHER-Bellville (3/8)

$

$

Not available

16

Homelite 984909001

TUBE Kit w/Decals(Vacuum units only)

$

$

Not available

17

Homelite 09201

DECAL-Idle Adjustment

$2.49

$

Usually ships in 3-7 days

0

18

Homelite PS01679

DECAL-Model ID

$2.49

$

Usually ships in 3-7 days

0
