UT-08929-A - Homelite Yard Sweeper Blower Carburetor And Fuel Tank Parts Diagram

Yard Sweeper Blower

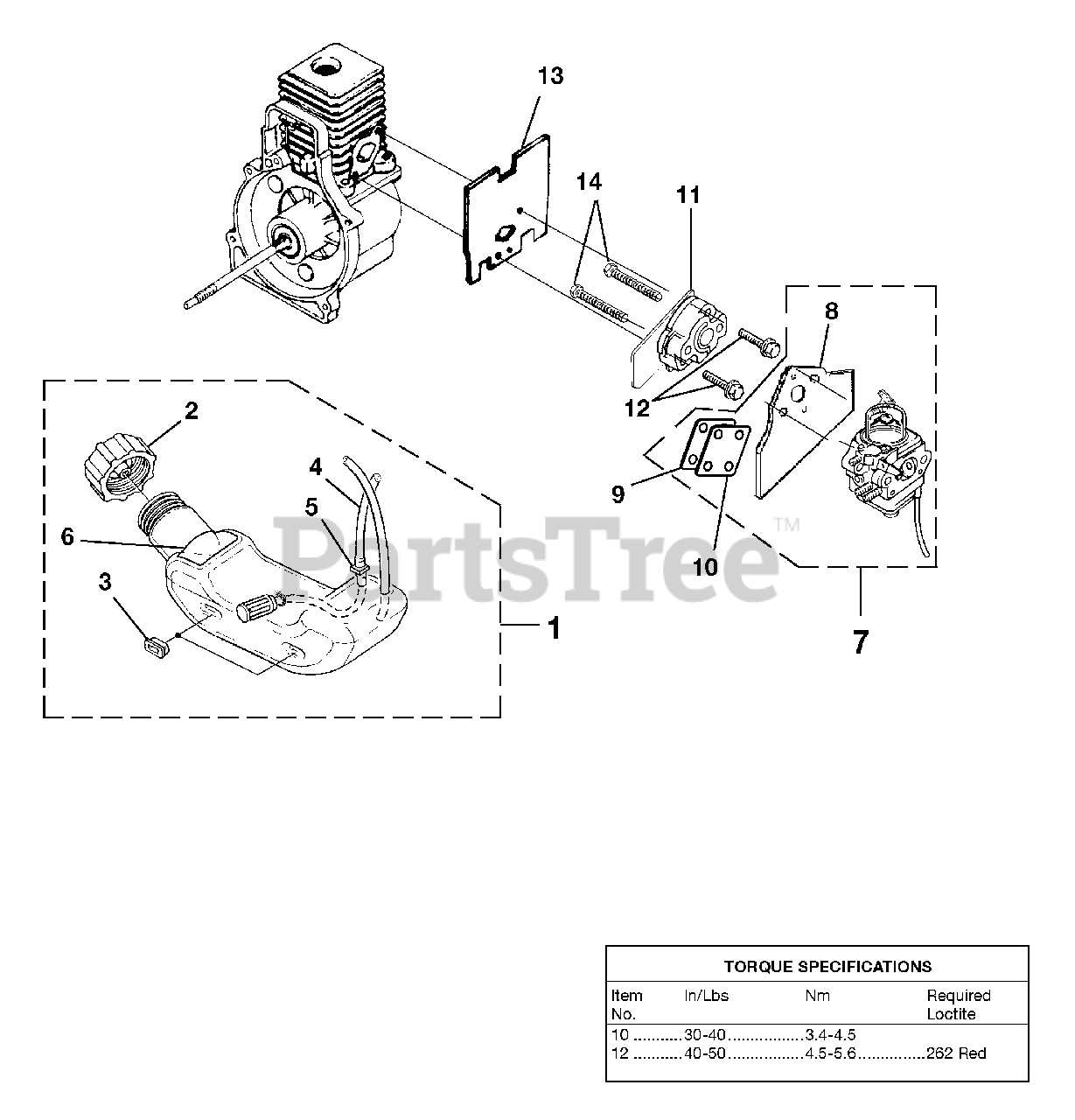

Carburetor And Fuel Tank Parts Diagram

  • Title

1

Homelite 984907001

FUEL TANK KIT (UT08929A, UT08930A)
(Superseded to 308123004)

Note: INCLUDES 1-6

$

$

Not available

1

Homelite 985202001

FUEL TANK KIT (UT08121)

Note: INCLUDES 1-6

$

$

Not available

2

Homelite A09116

FUEL CAP
(Superseded to 300758006)

$

$

Not available

3

Homelite 98792

BUMPER-Rubber

$

$

Not available

4

Homelite 0143912

TUBING-Rubber (3")
(Superseded to 570259003)

$

$

Not available

5

Homelite 07332

Fitting-Inlet (small for 2.5mm ID fuel line)
(Superseded to 985304001)

$1.99

$

In Stock, Qty 6

0

6

Homelite 08684

HEAT SHIELD
(Superseded to 900955001)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 984908001

CARBURETOR KIT (UT08929A,UT08930A)

Note: INCLUDES 7-8

$

$

Not available

8

Homelite PS06325

GASKET-Carburetor
(Superseded to 900951001)

$5.49

$

Usually ships in 3-7 days

0

7

Homelite 985074001

CARBURETOR KIT (UT08121)

Note: INCLUDES 7-10

$

$

Not available

8

Homelite 985534001

GASKET-Carburetor

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 5945603

SPACER, PLASTIC

$

$

Not available

10

Homelite 98766A

GASKET, CARBURETOR
(Superseded to 900994004)

$

$

Not available

11

Homelite 98768A

HEAT DAM
(Superseded to 518070001)

$

$

Not available

12

Homelite 093221

SCREW, SEMS (10-24 x 1.110)
(Superseded to 660662001)

$

$

Not available

13

Homelite 00775A

GASKET-Heat Dam
(Superseded to 900950001)

$1.49

$

In Stock, only 2 left!

0

14

Homelite 6634602

SCREW-Thread Form. (10-24 x 1)

$

$

Not available
