UT-08921 - Homelite Mightylite Blower, 26cc Figure B Parts Diagram

Mightylite Blower, 26cc

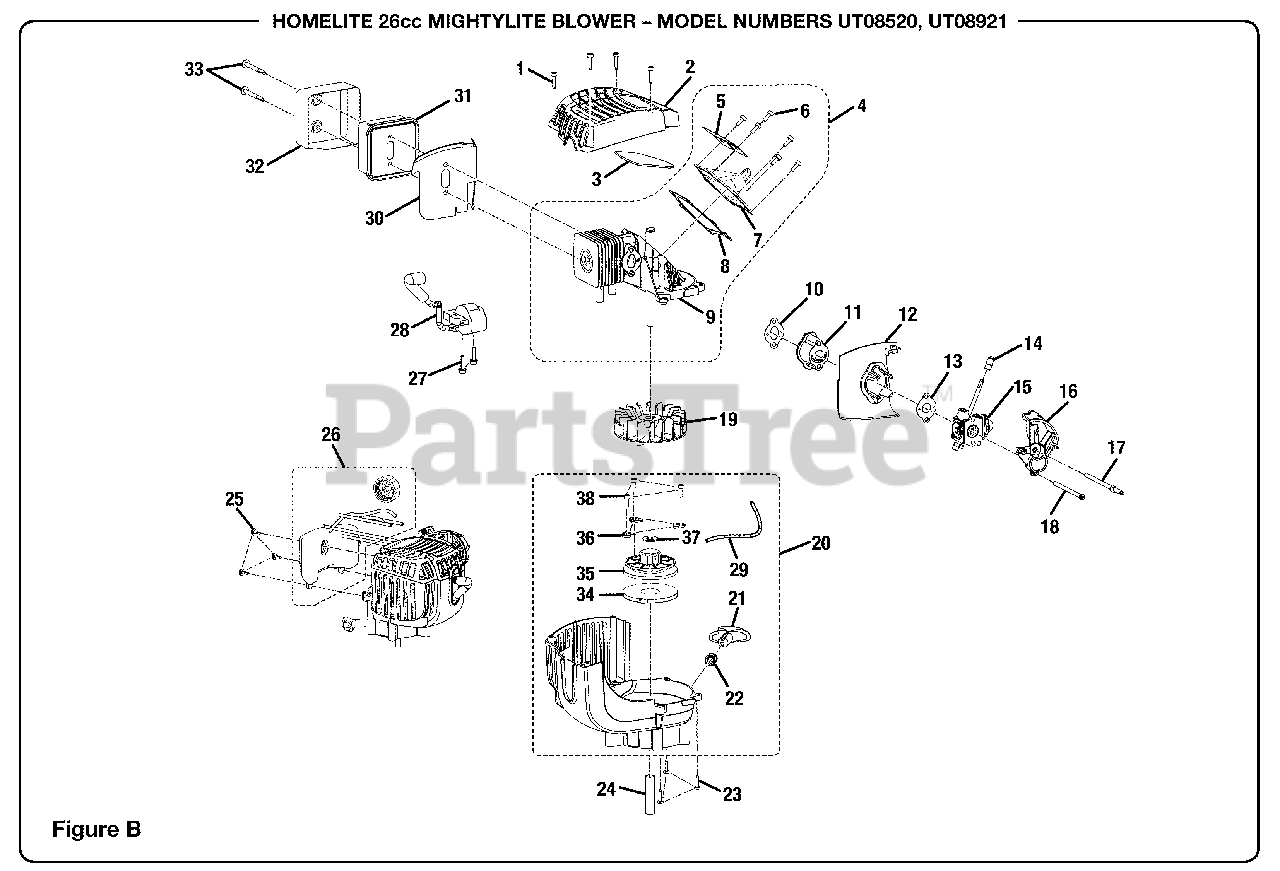

Figure B Parts Diagram

  • Title

1

Homelite 660466001

Screw (M4 x 18 mm)

Note: Purchase locally

$1.99

$

In Stock, Qty 7

0

2

Homelite 518535001

Upper Housing

$

$

Not available

3

Homelite 900951006

Heat Shield Gasket

$

$

Not available

4

Homelite 309960001

Short Block Assembly

$116.99

$

Usually ships in 3-7 days

0

5

Homelite 638442003

Cylinder Heat Shield

$1.49

$

In Stock, only 1 left!

0

6

Homelite 660925003

Screw (M4 x 12 mm)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 638337001

Crankcase Cover
(Superseded to 638337005)

$6.49

$

Usually ships in 3-7 days

0

8

Homelite 901550001

Crankcase Cover Gasket
(Superseded to 901550003)

$1.99

$

In Stock, only 4 left!

0

9

Homelite 640099001

Cylinder
(Superseded to 640098001)

$116.99

$

Usually ships in 3-7 days

0

10

Homelite 901551001

Intake Gasket

$1.99

$

In Stock, Qty 5

0

11

Homelite 518497001

Heat Dam

$3.99

$

In Stock, only 1 left!

0

12

Homelite 518690001

Baffle Plate

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 901552001

Carburetor Gasket

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 518709001

Throttle Lever

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 308028007

Carburetor

$43.99

$

In Stock, only 2 left!

0

16

Homelite 518532001

Air Box Base

$2.49

$

In Stock, only 1 left!

0

17

Homelite 660453001

Double Sided Hex Bolt

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 660454001

Screw (M5 x 70 mm)

Note: Purchase locally

$1.49

$

In Stock, only 3 left!

0

19

Homelite 308674001

Flywheel Assembly

$15.99

$

Usually ships in 3-7 days

0

20

Homelite 308889001

Lower Housing with Starter Assembly

$

$

Not available

21

Homelite 518502001

Starter Grip

$

$

Not available

22

Homelite 638088002

Eyelet

$1.99

$

In Stock, only 4 left!

0

23

Homelite 660970001

Screw (M4 x 16 mm)

Note: Purchase locally

$1.99

$

In Stock, only 1 left!

0

24

Homelite 638091006

Crankshaft Spacer

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 660970002

Screw (M4 x 10 mm Shoulder)

Note: Purchase locally

$1.99

$

In Stock, only 1 left!

0

26

Homelite 308675002

Fuel Tank with Cap Assembly

$

$

Not available

27

Homelite 660968001

Screw (M4 x 9 mm)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 850108001

Ignition Module
(Superseded to 850108002)

$30.99

$

In Stock, only 1 left!

0

29

Homelite 900849002

Starter Rope

$1.99

$

In Stock, only 1 left!

0

30

Homelite 901452003

Gasket Muffler

$2.99

$

Usually ships in 3-7 days

0

31

Homelite 308990003

Muffler Assembly

$36.99

$

Usually ships in 3-7 days

0

32

Homelite 638442002

Heat Shield

$

$

Not available

33

Homelite 660638003

Screw (M4 x 18 mm)
(Superseded to PS03999)

Note: Purchase locally

$

$

Not available

34

Homelite 638033001

Spring & Container Assembly

$5.49

$

Usually ships in 3-7 days

0

35

Homelite 518501001

Starter Pulley

$1.99

$

In Stock, Qty 6

0

36

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

37

Homelite 650017001

Flat Washer
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

38

Homelite 660967001

Screw (M4 x 14 mm)

Note: Purchase locally

$1.99

$

In Stock, only 1 left!

0
