UT-08542-A - Homelite Vac Attack II Blower Figure B Parts Diagram

Vac Attack II Blower

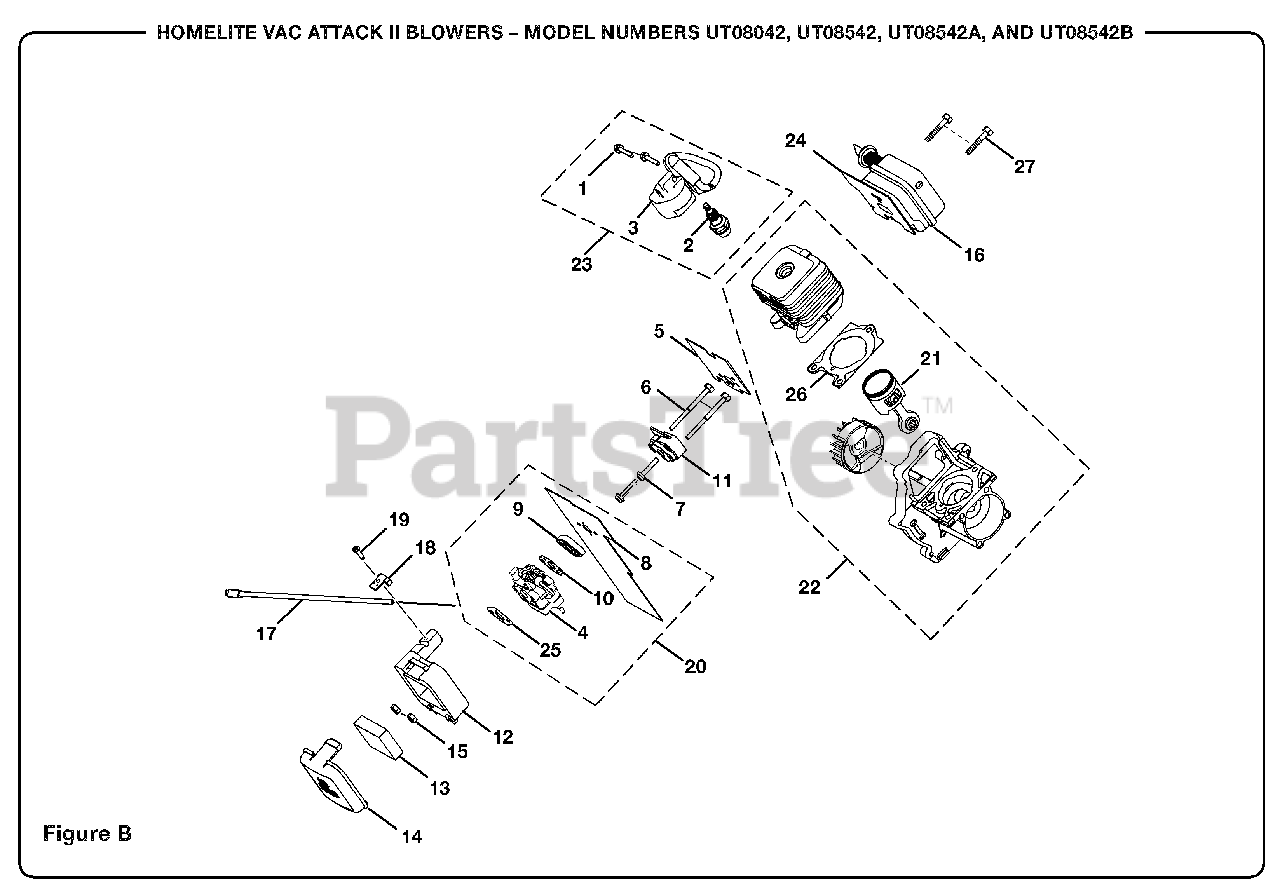

Figure B Parts Diagram

  • Title
1

Homelite 660660001

SCREW THD FORMING
(Superseded to 82540)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 870174001

SPARK PLUG CHAMPION - RCJ-6Y

$4.99

$

In Stock, Qty 20+

0

3

Homelite 850080001

IGNITION MODULE

$

$

Not available

4

Homelite 308028004

CARBURETOR

$46.99

$

In Stock, only 3 left!

0

5

Homelite 900950001

HEAT DAM GASKET

$1.49

$

In Stock, only 2 left!

0

6

Homelite 660346002

CARBURETOR MOUNTING BOLT

$

$

Not available

7

Homelite 660662001

SCREW (10-24 x 1.11 PAN HD.)
(Superseded to 093221)

Note: Purchase locally

$

$

Not available

8

Homelite 900951004

CARBURETOR GASKET

$

$

Not available

9

Homelite 518120001

SPACER
(Superseded to 984738001)

$

$

Not available

10

Homelite 900711003

GASKET
(Superseded to 9071103)

$

$

Not available

11

Homelite 518087001

HEAT DAM
(Superseded to 985430001)

$

$

Not available

12

Homelite 518248001

AIR FILTER BOX

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 900952001

AIR FILTER
(Superseded to 98760)

$

$

Not available

14

Homelite 518072001

AIR FILTER COVER
(Superseded to 09218)

$

$

Not available

15

Homelite 678027001

HEX NUT (10-24)
(Superseded to 81208)

Note: Purchase locally

$

$

Not available

16

Homelite 300748010

MUFFLER
(Superseded to 985912001)

$

$

Not available

17

Homelite 270021002

THROTTLE CABLE

$

$

Not available

18

Homelite 638133002

THROTTLE CABLE CLIP

$1.49

$

In Stock, only 1 left!

0

19

Homelite 660734001

SCREW-FILTER BOX

$1.99

$

In Stock, only 3 left!

0

20

Homelite 308281001

CARBURETOR KIT

Note: (INC. KEY NOS. 4, 8-10 AND 25)

$

$

Not available

21

Homelite 308119002

PISTON ASSEMBLY KIT

$15.99

$

Usually ships in 3-7 days

0

22

Homelite 308099003

SHORT BLOCK ASSEMBLY

Note: (INC. KEY NOS. 21, 26)

$

$

Not available

23

Homelite 308284001

IGNITION KIT

Note: (INC. KEY NOS. 1-3)

$

$

Not available

24

Homelite 990994001

MUFFLER GASKET

$

$

Currently unavailable

25

$

$

Not available

26

Homelite 900953001

CYLINDER GASKET

$

$

Not available

27

Homelite 660673001

SCREW (10-24 x 2-1/2 in. HEX HD.)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0
