UT-08514 - Homelite Vac Attack II Blower Figure B Parts Diagram

Vac Attack II Blower

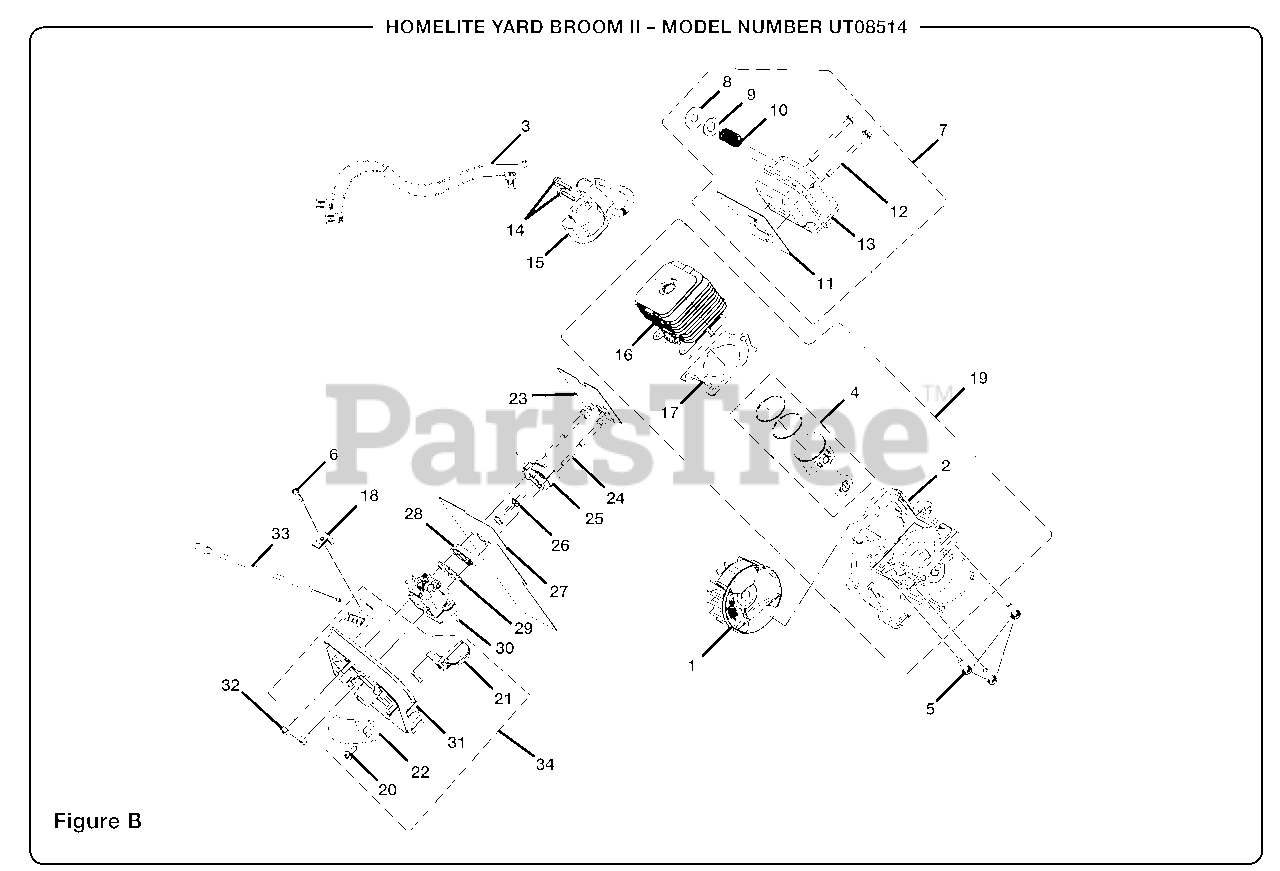

Figure B Parts Diagram

  • Title

1

Homelite 300952002

Fly Wheel Assembly

$13.99

$

In Stock, only 1 left!

0

2

Homelite 308128003

Crankcase Assembly

$

$

Not available

3

Homelite 290195004

Ignition & Switch Harness

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 308023003

Piston & Rod Assembly
(Superseded to 985872001)

$

$

Not available

5

Homelite 660342002

Screw (M5 X 20 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 660734001

Screw (M4 X 1.75 X 16 mm)

Note: Purchase locally

$1.99

$

In Stock, only 3 left!

0

7

Homelite 300748010

Muffler Assembly
(Superseded to 985912001)

Note: Inc Key Nos 8-13

$

$

Not available

8

Homelite 678046001

Insulating Washer
(Superseded to 00381)

$

$

Not available

9

Homelite 678045001

Flat Washer
(Superseded to 84117)

$

$

Not available

10

Homelite 678044001

Compression Spring
(Superseded to 00387)

$

$

Not available

11

Homelite 900994001

Muffler Gasket

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 660673001

Screw (10-24 Hex Hd.)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 300748013

Muffler

$

$

Not available

14

Homelite 660660001

Screw (8-32 X1.0 in.)
(Superseded to 82540)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 850080001

Ignition Module

$

$

Not available

16

Homelite 640069002

Cylinder
(Superseded to 640069003)

$46.99

$

Usually ships in 3-7 days

0

17

Homelite 900953001

Cylinder Gasket

$

$

Not available

18

Homelite 638133002

Throttle Cable Clip

$1.49

$

In Stock, only 1 left!

0

19

Homelite 308192005

Short Block Assembly
(Superseded to 000998333)

Note: Inc Key Nos 2, 4, 16 and 17

$

$

Not available

20

Homelite 660345001

Screw (M4)
(Superseded to 983645005)

$1.99

$

In Stock, only 4 left!

0

21

Homelite 590458001

Choke Lever
(Superseded to 5945801)

$

$

Not available

22

Homelite 590946001

Choke Plate
(Superseded to 5994601)

$1.99

$

In Stock, only 1 left!

0

23

Homelite 900950001

Heat Dam Gasket

$1.49

$

In Stock, only 2 left!

0

24

Homelite 660346002

Carburetor Mounting Bolt

$

$

Not available

25

Homelite 518087001

Heat Dam
(Superseded to 985430001)

$

$

Not available

26

Homelite 660662001

Screw (10-24 X 1.11 Pan Hd.)
(Superseded to 093221)

Note: Purchase locally

$

$

Not available

27

Homelite 900951004

Carburetor Gasket

$

$

Not available

28

Homelite 518120001

Spacer
(Superseded to 984738001)

$

$

Not available

29

Homelite 900711003

Gasket
(Superseded to 9071103)

$

$

Not available

30

Homelite 308429001

Carburetor (Walbro WYC-10)

$

$

Not available

31

Homelite 518493001

Air Filter Box

$3.49

$

In Stock, only 1 left!

0

32

Homelite 678027001

Hex Nut (10-24)
(Superseded to 81208)

Note: Purchase locally

$

$

Not available

33

Homelite 270021002

Throttle Cable

$

$

Not available

34

Homelite 308592001

Air Box Base Assembly

Note: Inc Key Nos 20-22, 31 and also Inc Key Nos 5, 6 and 12 On Page 2

$

$

Not available
