UT-08511 - Homelite Yard Broom II Blower Starter / Throttle Control Parts Diagram

Yard Broom II Blower

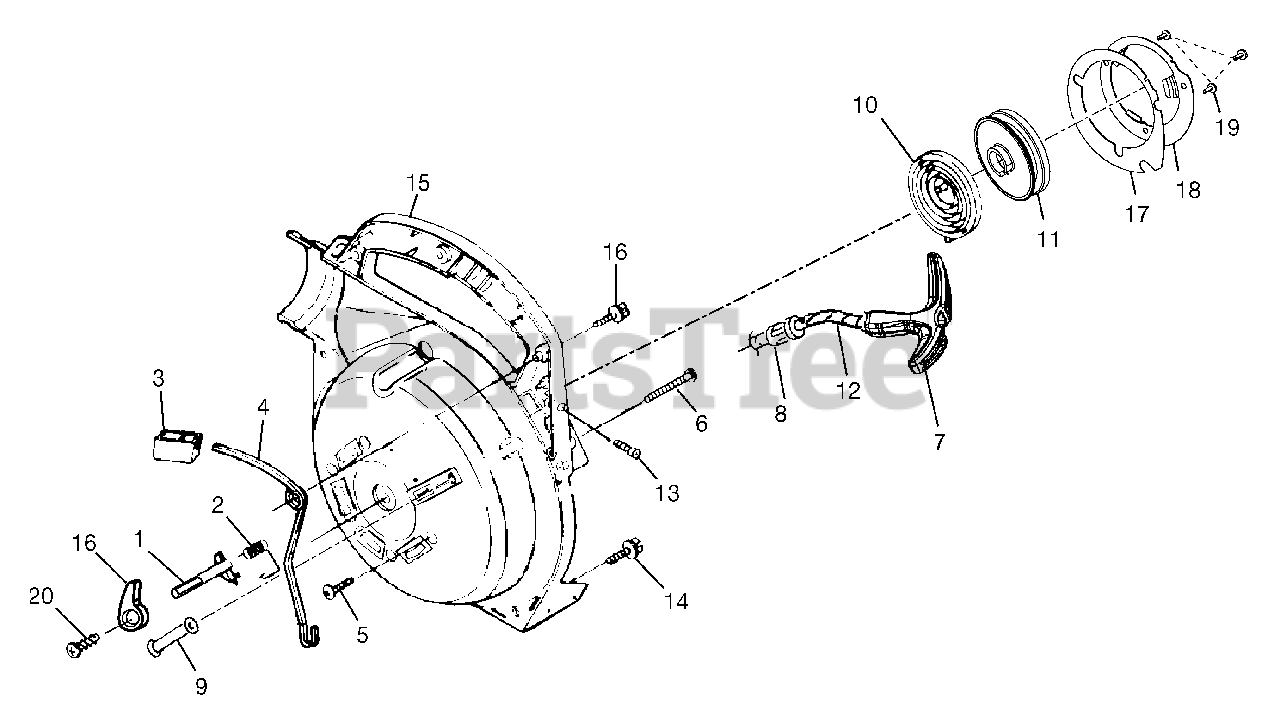

Starter / Throttle Control Parts Diagram

  • Title
1

Homelite 518082001

THROTTLE LATCH
(Superseded to 983864001)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 638075001

THROTTLE LATCH SPRING

$

$

Not available

3

Homelite 518081001

THROTTLE TRIGGER
(Superseded to 00367)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 638028001

THROTTLE LEVER
(Superseded to 00369A)

$

$

Not available

5

Homelite 660630002

SCREW (10-24 x 3/4 in TRUSS HD)
(Superseded to 82538)

Note: PURCHASE LOCALLY

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 660667001

SCREW (10 x 1-5/8 in HEX HD)
(Superseded to JA416903)

Note: PURCHASE LOCALLY

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 518073001

STARTER GRIP (YELLOW)
(Superseded to PS01200)

$2.49

$

In Stock, only 3 left!

0

8

Homelite 650014001

BUSHING STARTER
(Superseded to 969811A)

$

$

Not available

9

Homelite 650013001

STARTER ROPE GUIDE

$

$

Not available

10

Homelite 638033001

SPRING AND CONTAINER

$5.49

$

Usually ships in 3-7 days

0

11

Homelite 308134001

PULLEY ASSEMBLY
(Superseded to 308374001)

$

$

Not available

12

Homelite 900849001

STARTER ROPE

$1.99

$

In Stock, only 3 left!

0

13

Homelite 660670001

SCREW (8-32 x 5/8 in FIL HD)

Note: PURCHASE LOCALLY

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 660629001

SCREW (10-14 x 3/4 in TORX TRUSS HD)
(Superseded to 82563)

Note: PURCHASE LOCALLY

$1.99

$

In Stock, Qty 6

0

15

Homelite 518074001

INNER VOLUTE HOUSING

$48.99

$

Usually ships in 3-7 days

0

16

Homelite 518080001

THROTTLE CONTROL KNOB
(Superseded to 983856001)

$

$

Not available

17

Homelite 900957001

BAFFLE GASKET
(Superseded to 985261001)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 638032001

BAFFLE PLATE
(Superseded to PS00326)

$2.49

$

In Stock, only 1 left!

0

19

Homelite 660669001

SCREW (#8-16 X 1/2 in)

Note: PURCHASE LOCALLY

$1.49

$

In Stock, only 3 left!

0

20

Homelite 660618001

SCREW (10-14 X 1/2 in TORX)
(Superseded to 82541)

Note: PURCHASE LOCALLY

$1.99

$

In Stock, only 3 left!

0
