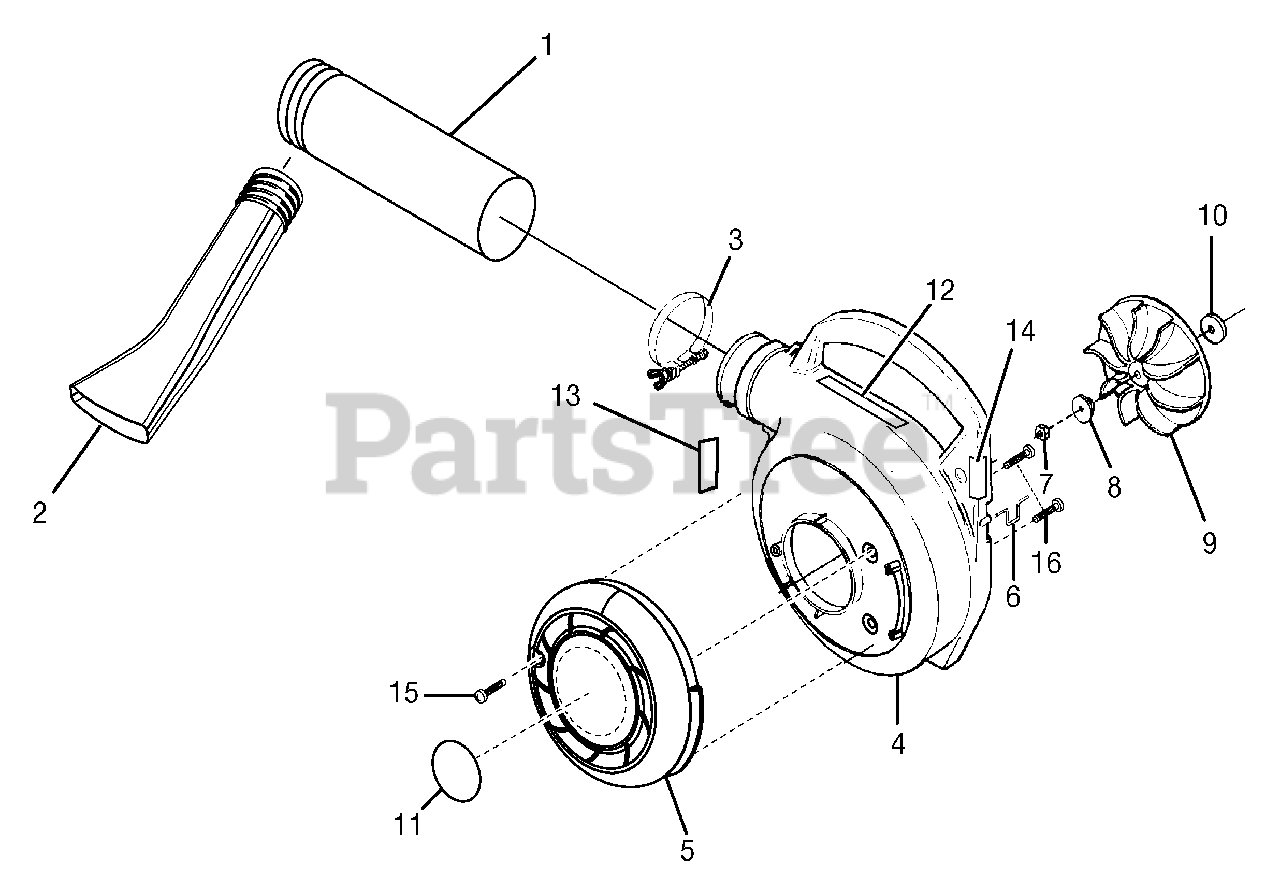

UT-08510 - Homelite Yard Broom II Blower Volute Fan And Tubes Parts Diagram

Yard Broom II Blower

Volute Fan And Tubes Parts Diagram

  • Title

1

Homelite 580555001

UPPER TUBE
(Superseded to 983916001)

$

$

Not available

2

Homelite 580556001

LOWER NOZZLE

$

$

Not available

3

Homelite 348005001

CLAMP WITH FASTENERS
(Superseded to 983906001)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 518076001

OUTER VOLUTE HOUSING

$57.99

$

Usually ships in 3-7 days

0

5

Homelite 518078001

DOOR

$

$

Not available

6

Homelite 638074001

WIRE LOOP
(Superseded to 00398)

$

$

Not available

7

Homelite 678043001

* HEX NUT (3/8-24)
(Superseded to 985738006)

Note: PURCHASE LOCALLY

$1.49

$

In Stock, only 1 left!

0

8

Homelite 640858001

FAN ADAPTER

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 518077001

FAN
(Superseded to PS02931)

$

$

Not available

10

Homelite 650016001

FLAT WASHER

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 940299487

DOOR YARD BROOM DECAL

$

$

Not available

12

Homelite 940299485

WARNING DECAL
(Superseded to 983901001)

$

$

Not available

13

Homelite 940299493

FAN INTAKE DECAL
(Superseded to 983912001)

$

$

Not available

14

Homelite 940299489

OUTER VOLUTE DECAL

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 660668001

SCREW (1/4-20)
(Superseded to 617205001)

Note: PURCHASE LOCALLY

$

$

Not available

16

Homelite 660618001

SCREW (10-24 X 1/2 in TORX TRUSS HD) 2
(Superseded to 82541)

Note: PURCHASE LOCALLY

$1.99

$

In Stock, only 3 left!

0

Homelite 983000424

OPERATOR'S MANUAL (960223279)

$

$

Not available

Homelite 983000424R

REPAIR SHEET (REV:02)

$

$

Currently unavailable
