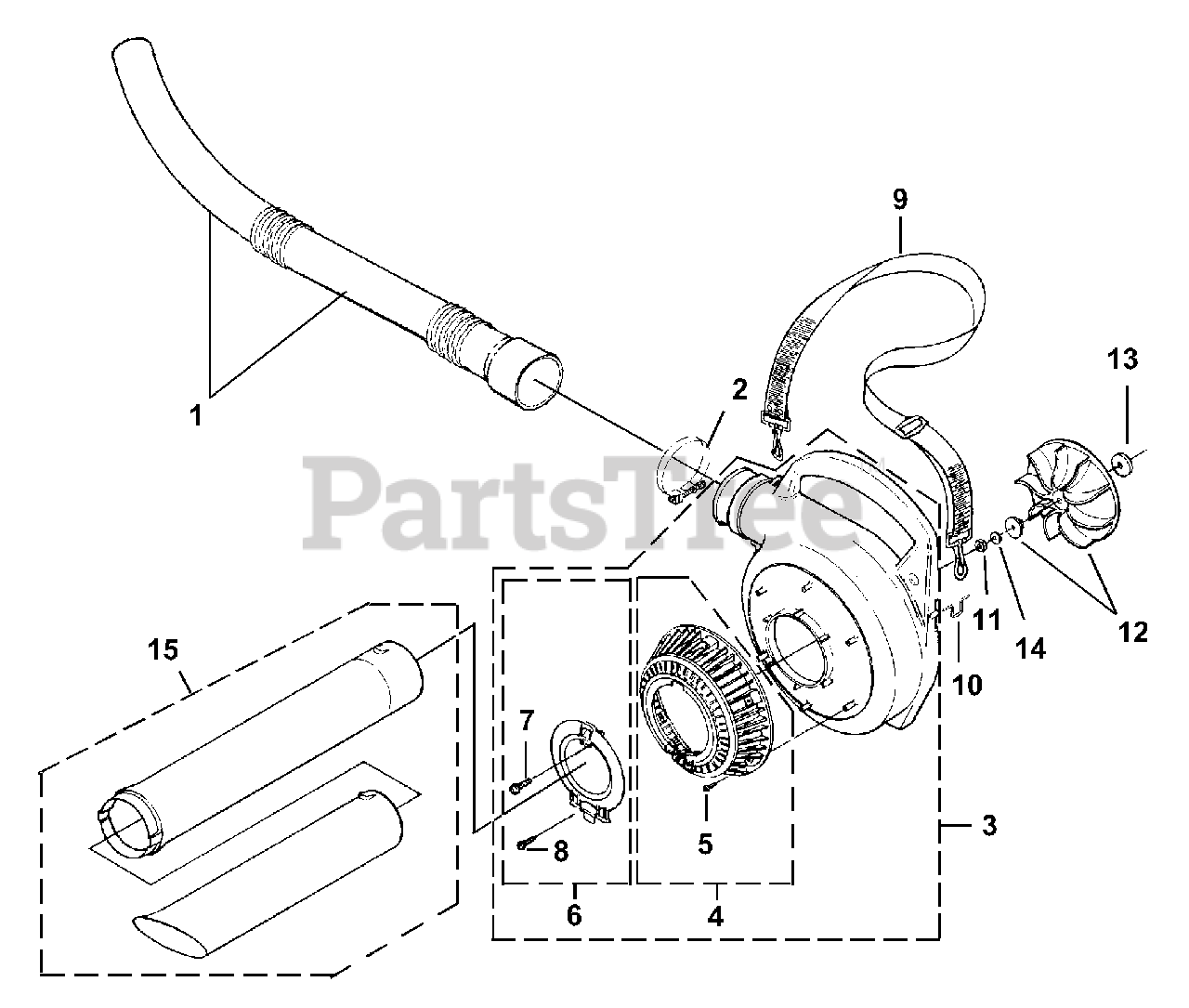

UT-08131 - Homelite Yard Sweeper Vac Blower, Eco Power Volute, Fan & Tubes Parts Diagram

Yard Sweeper Vac Blower, Eco Power

Volute, Fan & Tubes Parts Diagram

  • Title

1

Homelite UP05585

BLOWER TUBE KIT
(Superseded to 984917001)

$

$

Not available

2

Homelite UP03821

CLAMP w/Fasteners
(Superseded to 348005003)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite UP03861

VOLUTE HOUSING KIT
(Superseded to 984918001)

Note: Includes items 3-8

$

$

Not available

4

Homelite UP06720

BLOWER VAC GRILLE KIT
(Superseded to UP06720A)

Note: Includes item 5

$

$

Not available

5

Homelite UP03894

SCREW-Thread Form. (#6 X 3/8")
(Superseded to 82528)

Note: Torque Specs 8-12 In/Lbs, .9-1.4 Nm.

$2.49

$

Usually ships in 3-7 days

0

6

Homelite UP06613

ACCESS DOOR KIT
(Superseded to 984910001)

Note: Includes items 7-8

$

$

Not available

7

Homelite UP03888

SCREW-Thread Rolling (#10 X 5/8")
(Superseded to 82312)

Note: Torque Specs 10-20 In/Lbs, 1.1-2.3 Nm.

$

$

Not available

8

Homelite UP03893

SCREW-Thread Form. (#8 X 1/2")
(Superseded to 82376)

Note: Torque Specs 8-12 In/Lbs, .9-1.4 Nm.

$1.49

$

In Stock, only 3 left!

0

9

Homelite UP06723

SHOULDER STRAP
(Superseded to 96337C)

$

$

Not available

10

Homelite UP03818

WIRE LOOP
(Superseded to 00398)

$

$

Not available

11

Homelite UP03884

NUT-Hex (3/8-24)
(Superseded to 81124A)

Note: Torque Specs 130-150 In/Lbs, 14.7-16.9 Nm.

$

$

Not available

12

Homelite UP06826

BLOWER FAN KIT
(Superseded to UP06826A)

$

$

Not available

13

Homelite UP03836

WASHER-Flat
(Superseded to 650016001)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite UP03835

WASHER-Bellville (3/8")
(Superseded to 03163)

$

$

Not available

15

Homelite UP06705

TUBE Kit w/Decals
(Superseded to UP06705A)

Note: (Vacuum units only)

$

$

Not available
