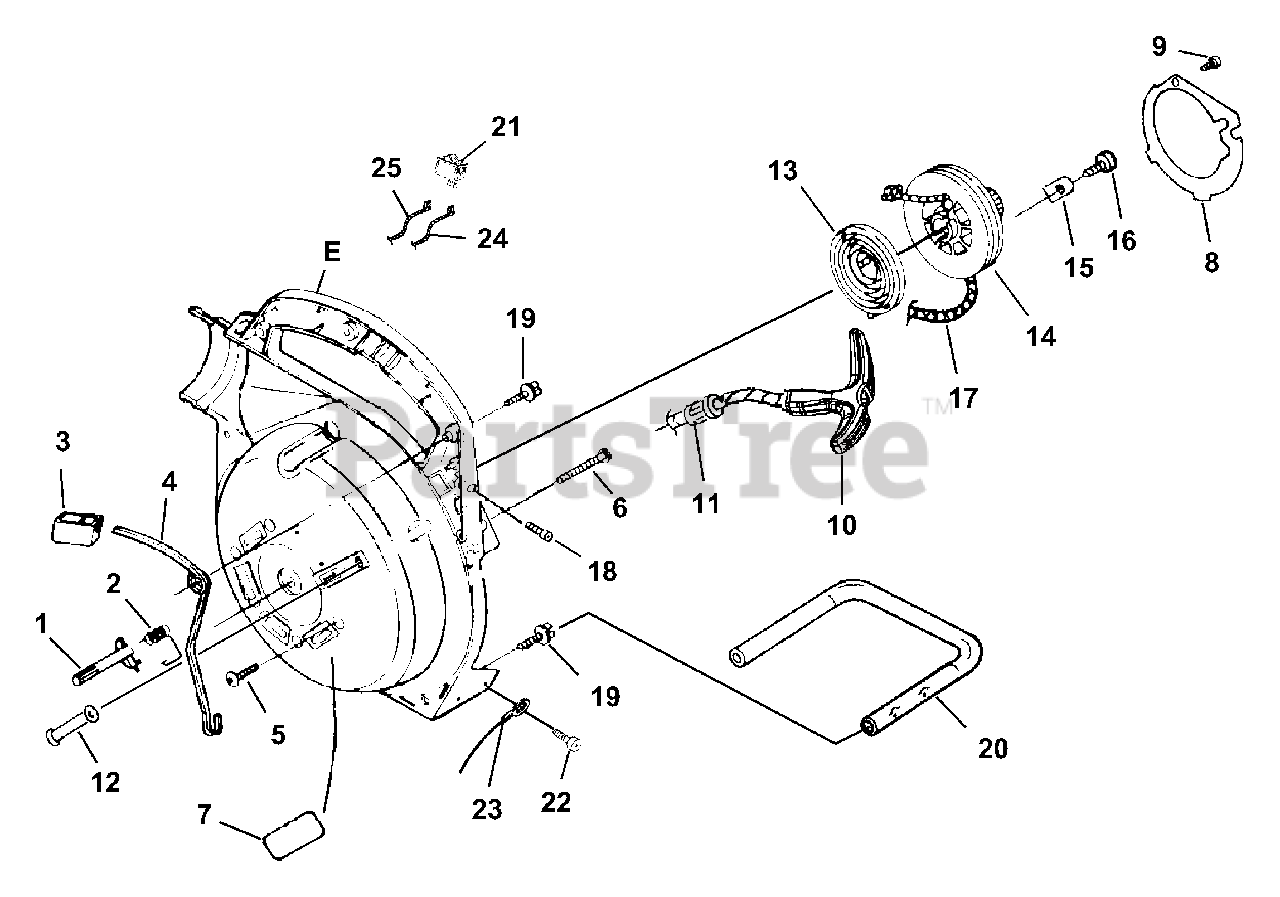

UT-08131 - Homelite Yard Sweeper Vac Blower, Eco Power Starter Parts Diagram

Yard Sweeper Vac Blower, Eco Power

Starter Parts Diagram

  • Title

1

Homelite UP07818

LATCH-Throttle

$

$

Currently unavailable

2

Homelite UP03811

SPRING-Throttle Latch
(Superseded to 638075001)

$

$

Not available

3

Homelite UP03798

TRIGGER-Throttle
(Superseded to 00367)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite UP07819

LEVER-Throttle

$

$

Currently unavailable

5

Homelite UP03406

SCREW-Thread Form. (10-24 X 3/4")
(Superseded to 82538)

Note: Torque Specs 55-60 In/Lbs, 6.2-6.8 Nm.

$1.99

$

Usually ships in 3-7 days

0

6

Homelite UP03869

SCREW-Thread Form. (#10 X 1 5/8")
(Superseded to JA416903)

Note: Torque Specs 20-30 In/Lbs, 2.3-3.4 Nm.

$2.49

$

Usually ships in 3-7 days

0

E

Homelite UP06716

VOLUTE HOUSING & STARTER

Note: Includes items 7-17

$

$

Currently unavailable

7

Homelite UP03822

KIT-Sealing
(Superseded to UP03822A)

$

$

Not available

8

Homelite UP04279

PLATE-Rotor
(Superseded to 00374)

$3.49

$

Usually ships in 3-7 days

0

9

Homelite UP03894

SCREW-Thread Form. (#6 X 1 3/8")
(Superseded to 82528)

Note: Torque Specs 8-12 In/Lbs, .9-1.4 Nm.

$2.49

$

Usually ships in 3-7 days

0

10

Homelite UP03026

GRIP-Starter (Yellow)
(Superseded to PS01200)

$2.49

$

In Stock, only 3 left!

0

11

Homelite UP03910

BUSHING-Starter
(Superseded to 969811A)

$

$

Not available

12

Homelite UP03809

GUIDE-Starter Rope
(Superseded to 00364B)

$

$

Not available

13

Homelite UP03917

SPRING & CONTAINER
(Superseded to A98773A)

$5.49

$

Usually ships in 3-7 days

0

14

Homelite UP04349

PULLEY-Starter
(Superseded to 98770A)

$3.99

$

Usually ships in 3-7 days

0

15

Homelite UP03919

BRACKET-Retaining
(Superseded to 98791)

$

$

Not available

16

Homelite UP03897

SCREW-Thread Form. (#10 X 1/2")
(Superseded to 82541)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm.

$1.99

$

In Stock, only 3 left!

0

17

Homelite UP03911

ROPE-Starter
(Superseded to 9789901)

$1.99

$

In Stock, only 3 left!

0

18

Homelite UP03887

SCREW-Phil. Hd. (8-32 X 5/8")
(Superseded to PS82146)

Note: Torque Specs 20-30 In/Lbs, 2.3-3.4 Nm.

$1.49

$

Usually ships in 3-7 days

0

19

Homelite UP03900

SCREW-Thread Form. (10-24 X 3/4")
(Superseded to 82563)

Note: Torque Specs 20-30 In/Lbs, 2.3-3.4 Nm.

$1.99

$

In Stock, Qty 6

0

20

Homelite UP03816

HANDLE
(Superseded to 00393)

$

$

Not available

21

Homelite UP05271

SWITCH-Momentary
(Superseded to PS02764)

$

$

Not available

22

Homelite UP03889

SCREW
(Superseded to PS02344)

$

$

Not available

23

Homelite UP03823

LEAD-Ground
(Superseded to A01002)

$

$

Not available

24

Homelite UP08027

Lead-Ground to Switch

$

$

Currently unavailable

25

Homelite UP08026

Lead-Ignition to Switch

$

$

Currently unavailable
