UT-08121 - Homelite The BackPacker Blower Back Pack, Tube Kit And Handle Parts Diagram

The BackPacker Blower

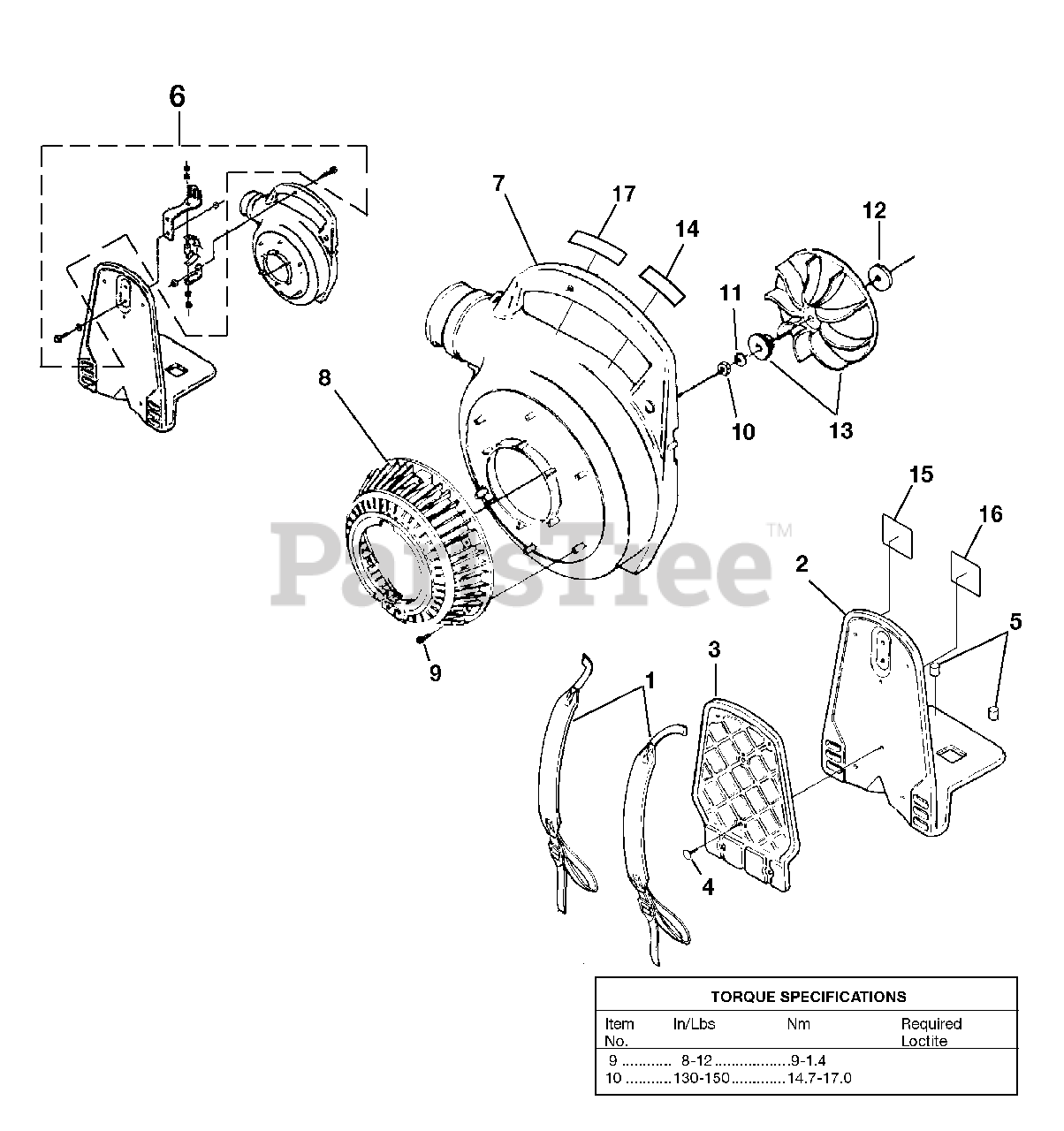

Back Pack, Tube Kit And Handle Parts Diagram

  • Title

1

Homelite 01776

HARNESS-Shoulder

$

$

Not available

2

Homelite PS01763

FRAME-Blower

$

$

Not available

3

Homelite PS02023

PAD-Foam

$23.99

$

Usually ships in 3-7 days

0

4

Homelite 01783

CLIP-Push

$4.99

$

Usually ships in 3-7 days

0

5

Homelite 01770A

VIBRATION ISOLATOR

Note: (One included in #6 kit)

$

$

Not available

6

Homelite 985073001

VIBRATION ISOLATOR KIT

$

$

Not available

7

Homelite PS03169

VOLUTE HOUSING KIT

$

$

Not available

8

Homelite 00320

BLOWER VAC GRILLE KIT

$

$

Not available

9

Homelite 82528

SCREW-Thread Form. (#6 X 3/8")

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 81124A

NUT-Hex (3/8-24)

$

$

Not available

11

Homelite 03163

WASHER-Bellville (3/8")

$

$

Not available

12

Homelite 03165

WASHER-Flat
(Superseded to 650016001)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 984911001

BLOWER FAN KIT
(Superseded to UP06826A)

$

$

Not available

14

Homelite PS02310

DECAL-Decible Level 69 d B (A)

$

$

Not available

15

Homelite PS01856

DECAL-Zip Start

$

$

Not available

16

Homelite 01781A

DECAL-WARNING

$

$

Not available

17

Homelite PS02145

LABEL-Backpacker

$

$

Not available
