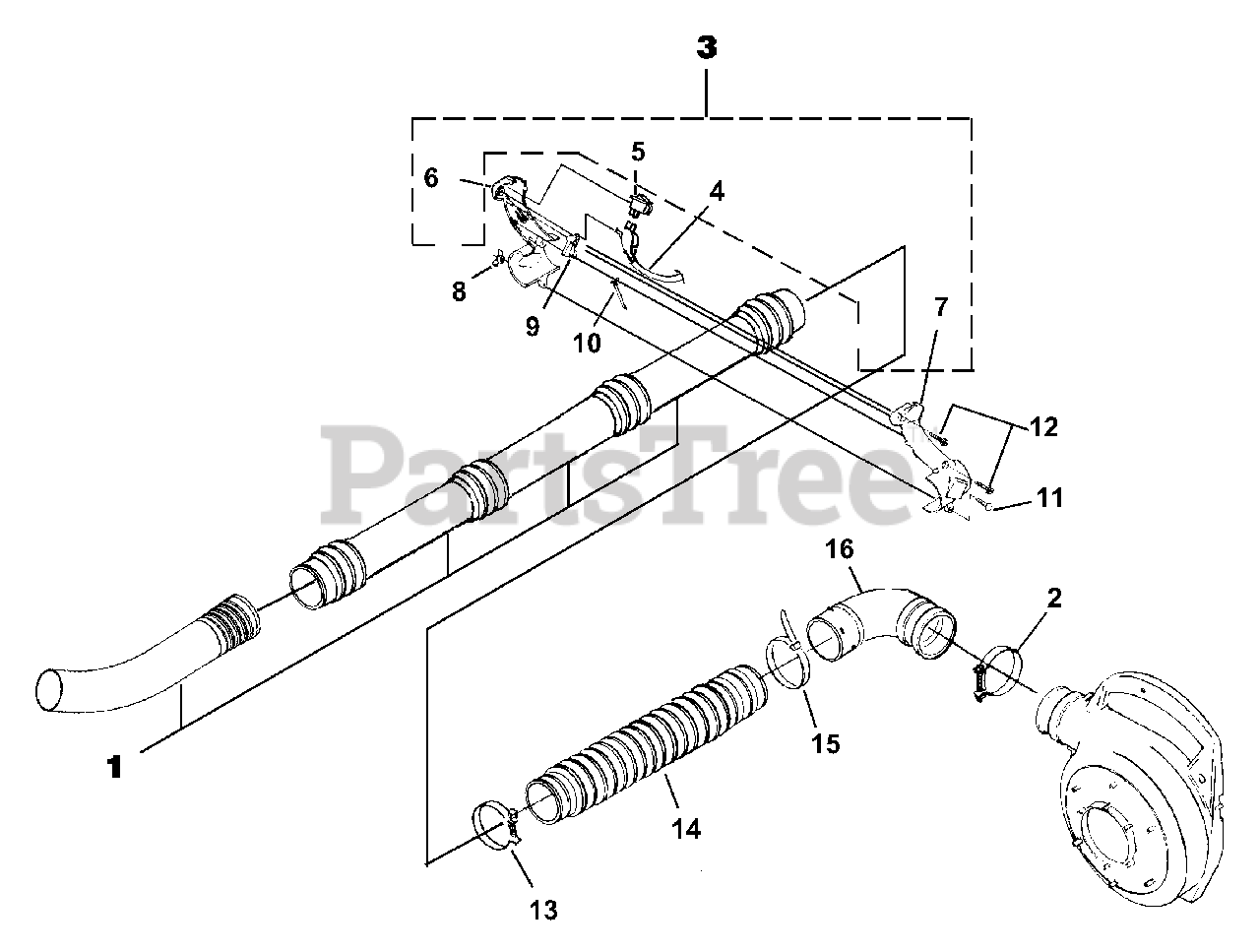

UT-08115 - Homelite The BackPacker Blower, Eco Power Tubes Parts Diagram

The BackPacker Blower, Eco Power

Tubes Parts Diagram

  • Title

1

Homelite UP07714

BLOWER TUBE KIT

$

$

Currently unavailable

2

Homelite UP07167

CLAMP
(Superseded to 004335)

$

$

Not available

3

Homelite UP03794

HANDLE & SWITCH KIT
(Superseded to UP03794A)

Note: Includes items 4-7

$

$

Not available

4

Homelite UP06782

CABLE-Throttle w/ Ignition Leads
(Superseded to PA00666)

$13.99

$

Usually ships in 3-7 days

0

5

Homelite UP03833

SWITCH
(Superseded to 985703001)

$

$

Not available

6

Homelite UP04300

HANDLE-Control (Right)
(Superseded to 03922)

$

$

Not available

7

Homelite UP04301

HANDLE-Control (Left)
(Superseded to 580568001)

$

$

Not available

8

Homelite UP03886

NUT - Wing (10-24)
(Superseded to 81281)

$

$

Not available

9

Homelite UP04346

TRIGGER
(Superseded to 94452B)

$2.49

$

In Stock, only 4 left!

0

10

Homelite UP03908

LATCH-Trigger
(Superseded to 95906A)

$

$

Not available

11

Homelite UP03892

BOLT-Rib Neck, Rnd. Hd. (10-24 X 7/8")
(Superseded to 82375)

$

$

Not available

12

Homelite UP03900

SCREW-Thread Form. (10-14 X 3/4")
(Superseded to 82563)

Note: Torque Specs 20-30 In/Lbs, 2.3-3.4 Nm.

$1.99

$

In Stock, Qty 6

0

13

Homelite UP03819

CLAMP (#87)
(Superseded to 004331)

$5.99

$

Usually ships in 3-7 days

0

14

Homelite UP03827

BELLOWS-Plastic
(Superseded to 01772)

$

$

Not available

15

Homelite UP04568

CABLE-Tie
(Superseded to 900972001)

$

$

Not available

16

Homelite UP04297

ELBOW-Curved
(Superseded to 580565001)

$3.99

$

In Stock, only 1 left!

0
