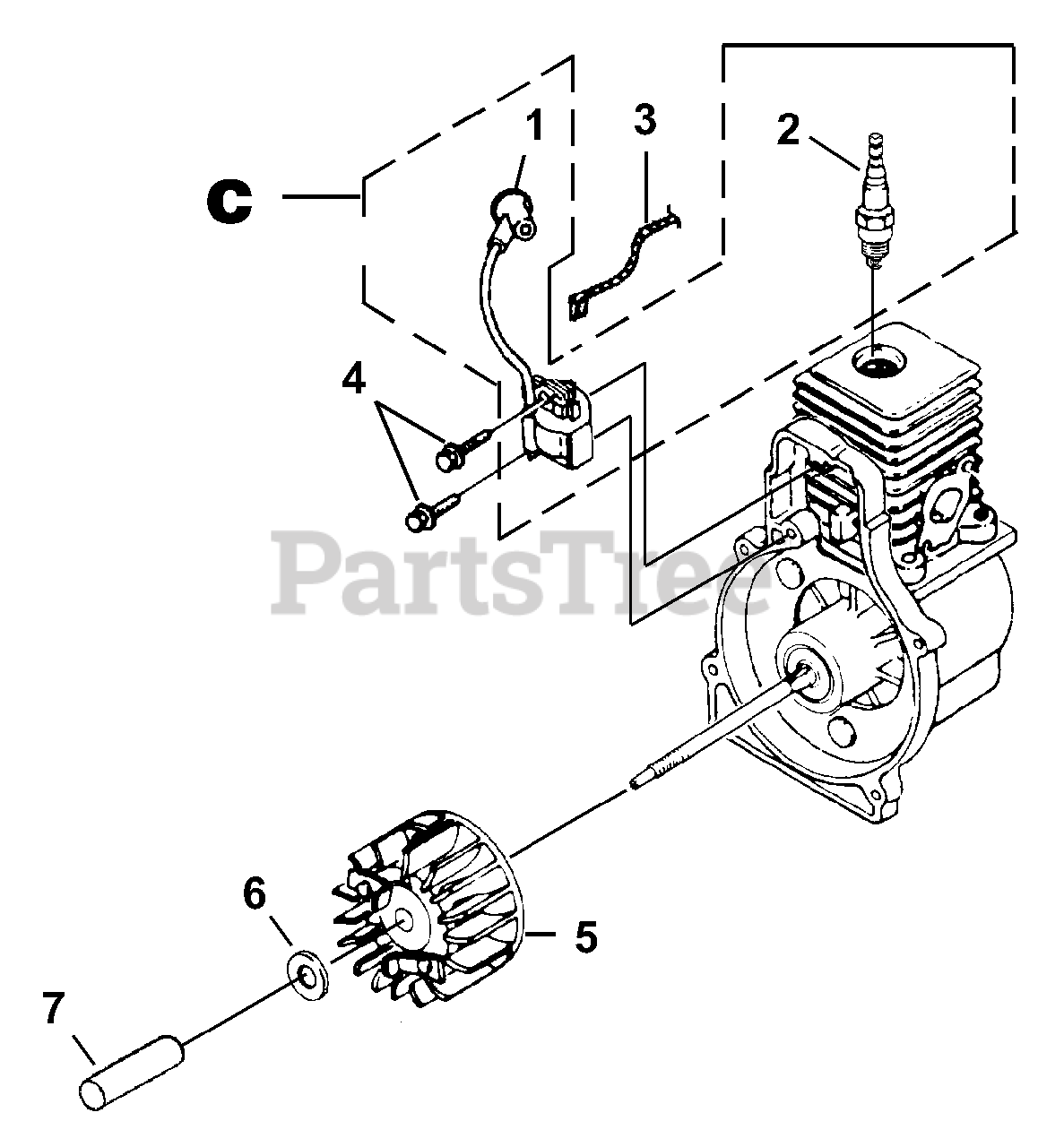

UT-08115 - Homelite The BackPacker Blower, Eco Power Ignition With Rotor Parts Diagram

The BackPacker Blower, Eco Power

Ignition With Rotor Parts Diagram

  • Title

C

Homelite UP06784

IGNITION KIT w/ Module

Note: Includes items 2-3

$

$

Not available

1

Homelite UP03868

TERMINAL-Hi-Tension
(Superseded to A33055)

$

$

Not available

2

Homelite UP05875

SPARK PLUG
(Superseded to PS02227)

Note: Torque Specs 120-180 In/Lbs, 13.6-20.3

$4.49

$

In Stock, Qty 20+

0

3

Homelite UP06782

CABLE-Throttle w/Ignition Leads (Back Packer)
(Superseded to PA00666)

$13.99

$

Usually ships in 3-7 days

0

Homelite UP08026

Lead-Ignition to Switch (Yard Sweeper)

$

$

Currently unavailable

4

Homelite UP03896

SCREW-Thread Form. (8-32 x 1")
(Superseded to 82540)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm. Required Loctite 242 Blue

$2.49

$

Usually ships in 3-7 days

0

5

Homelite UP07817

ROTOR & STARTER PAWLS
(Superseded to 984531001)

$13.99

$

In Stock, only 1 left!

0

6

Homelite UP03906

WASHER-Flat
(Superseded to 95479A)

$

$

Not available

7

Homelite UP03854

SPACER-Fan
(Superseded to PS03566)

$

$

Not available
