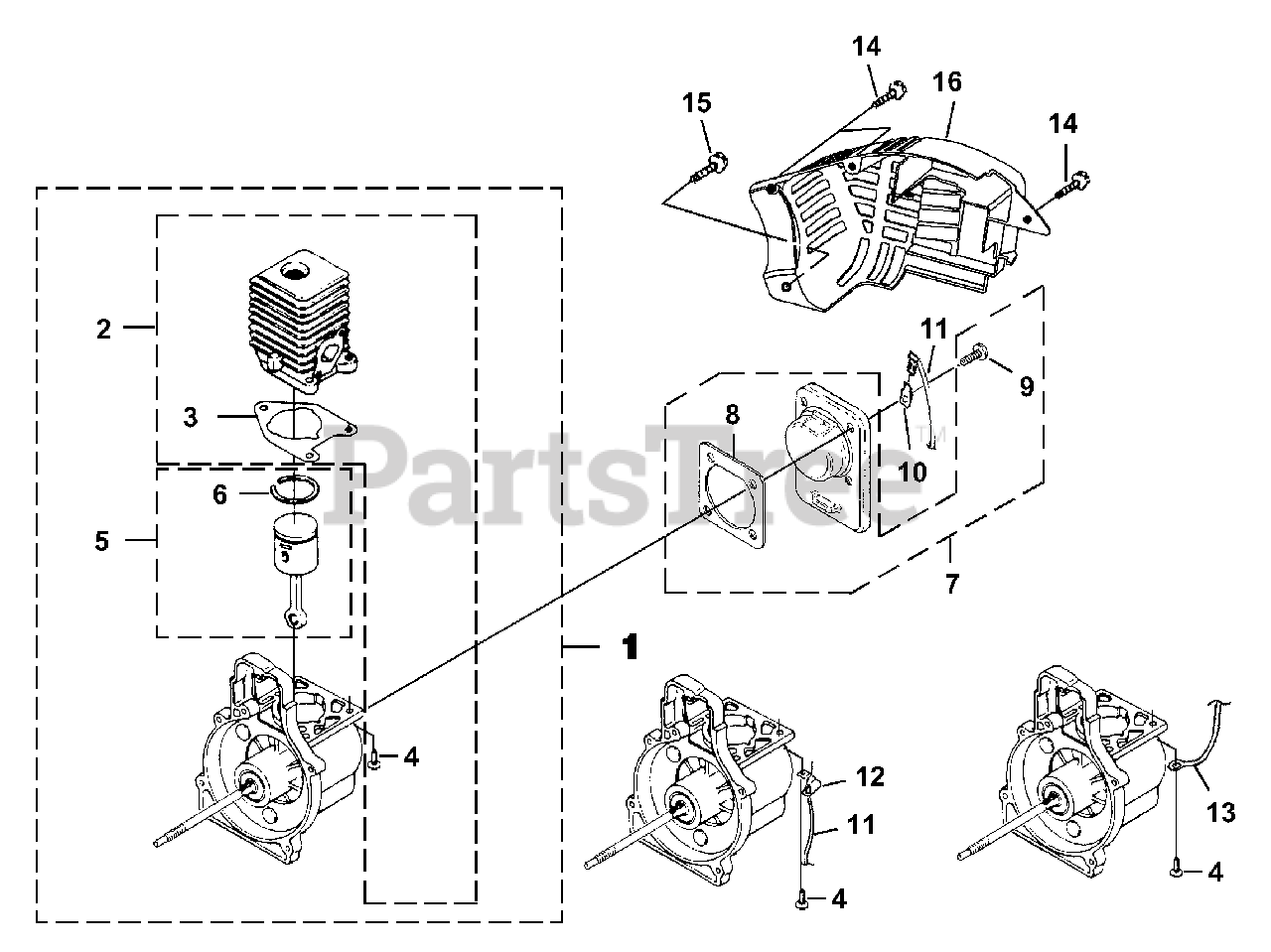

UT-08115 - Homelite The BackPacker Blower, Eco Power Engine Internal Parts Diagram

The BackPacker Blower, Eco Power

Engine Internal Parts Diagram

  • Title

1

Homelite UP07815

SHORT BLOCK (25cc)

Note: Includes items 2-9

$

$

Currently unavailable

2

Homelite UP06348

25 CC CYLINDER KIT

Note: Includes items 3-4

$

$

Not available

3

Homelite UP03857

GASKET-Cylinder
(Superseded to 900953001)

$

$

Not available

4

Homelite UP04345

SCREW, SEMS (12-24 x 3/4)
(Superseded to PS02807)

Note: Torque Specs 55-65 In/Lbs, 6.2-7.3 Nm. Required Loctite 262 Red

$2.49

$

Usually ships in 3-7 days

0

5

Homelite UP06347

25 CC PISTON & ROD
(Superseded to UP06347A)

Note: Includes item 6

$

$

Not available

6

Homelite UP06346

RING-Piston
(Superseded to PS04468)

$2.99

$

Usually ships in 3-7 days

0

7

Homelite UP00019

CRANKCASE COVER-Stamped Steel
(Superseded to UP00019A)

Note: Includes items 8-9

$

$

Not available

8

Homelite UP03862

GASKET-Crankcase
(Superseded to 900954001)

Note: Also included with Cylinder Kits

$

$

Not available

9

Homelite UP04295

SCREW, SEMS (10-24 x .56)
(Superseded to PS01565)

Note: Torque Specs 55-65 In/Lbs, 6.2-7.3 Nm. Required Loctite 262 Red

$2.49

$

Usually ships in 3-7 days

0

10

Homelite UP03834

TAB-Male
(Superseded to 02851)

$

$

Not available

11

Homelite UP06782

CABLE-Throttle w/Ignition Leads (Back Packer)
(Superseded to PA00666)

$13.99

$

Usually ships in 3-7 days

0

12

Homelite UP04296

CABLE BRACKET (Back Packer)
(Superseded to A01767)

$

$

Not available

13

Homelite UP08027

Lead-Ground to Switch (Yard Sweeper)

$

$

Currently unavailable

14

Homelite UP03893

SCREW-Thread Form. (#8 X 1/2")
(Superseded to 82376)

Note: Torque Specs 8-12 In/Lbs, .9-1.4 Nm.

$1.49

$

In Stock, only 3 left!

0

15

Homelite UP03900

SCREW-Thread Form. (#10 X 3/4")
(Superseded to 82563)

Note: Torque Specs 20-30 In/Lbs, 2.3-3.4 Nm.

$1.99

$

In Stock, Qty 6

0

16

Homelite UP06718

SHROUD

$

$

Currently unavailable
