UT-08111-A - Homelite The BackPacker Blower Muffler And Air Cleaner Parts Diagram

The BackPacker Blower

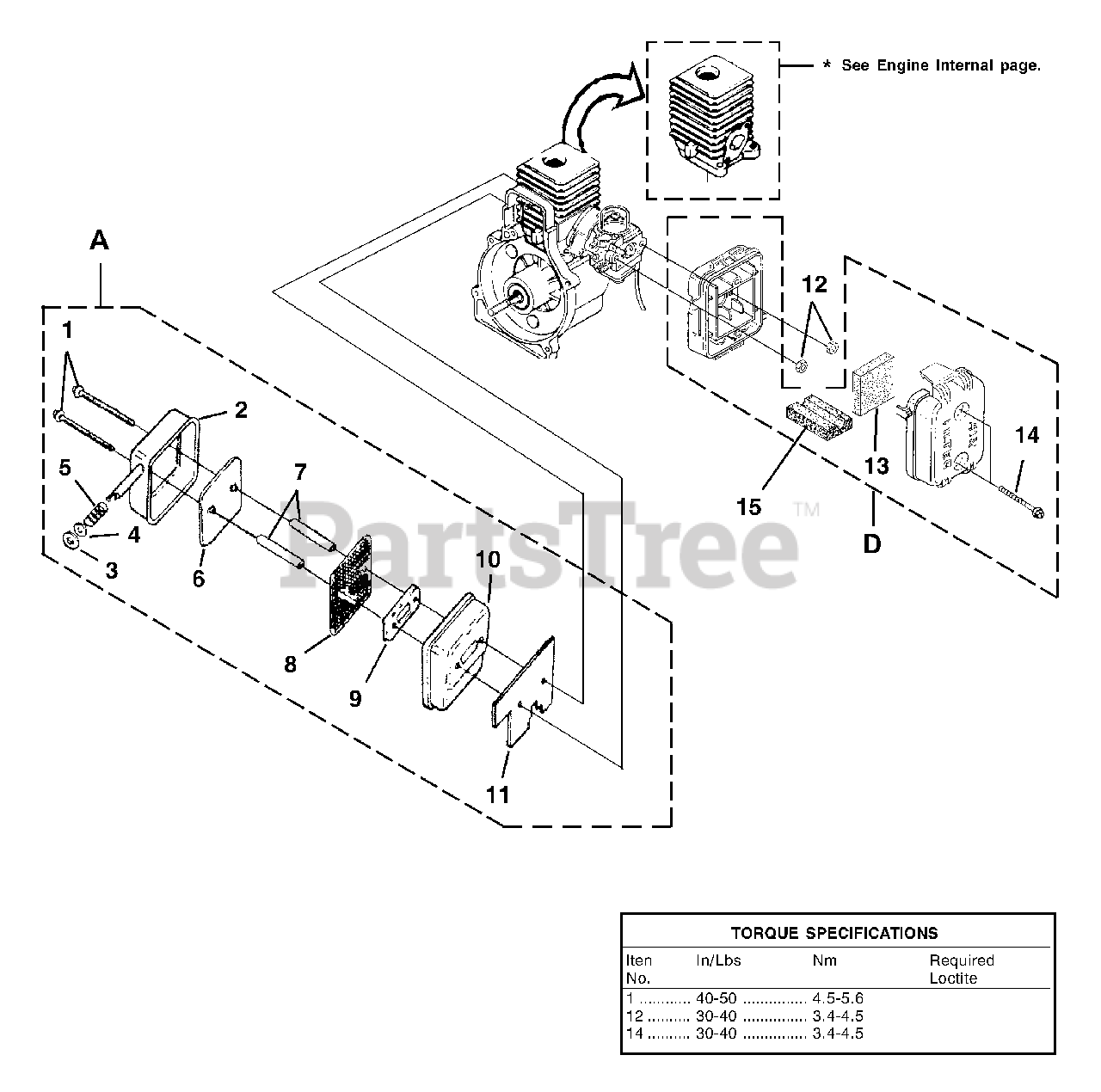

Muffler And Air Cleaner Parts Diagram

  • Title
A

Homelite PA01181

MUFFLER-Complete

Note: Includes Items 1-11

$

$

Not available

1

Homelite 88060

SCREW-Sems Hex Hd. (10-24 x 2 1/2")
(Superseded to 660673001)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite A00366

MUFFLER COVER

$

$

Not available

3

Homelite 00381

WASHER-Insulating

$

$

Not available

4

Homelite 84117

WASHER-Flat

$

$

Not available

5

Homelite 00387

SPRING-Compression

$

$

Not available

6

Homelite 00777

DEFLECTOR-Muffler

$5.49

$

Usually ships in 3-7 days

0

7

Homelite 04785

SPACER-Muffler

$

$

Not available

8

Homelite 00388B

SCREEN-Spark Arrestor

$

$

Not available

9

Homelite 98783

PLATE-Reinforcing

$

$

Not available

10

Homelite 98781

BODY-Muffler
(Superseded to 04710)

$28.99

$

Usually ships in 3-7 days

0

11

Homelite 00394B

GASKET-Muffler

Note: Also included with Short block & Cylinder Kits.

$

$

Not available

12

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

D

Homelite UP00011

AIR FILTER KIT

Note: Includes items 13-14

$

$

Not available

13

Homelite 98760

AIR FILTER

$

$

Not available

14

Homelite 093221

SCREW-Thd. Form. (#8-16 x 3/4")
(Superseded to 660662001)

$

$

Not available

15

Homelite 04857

FOAM AIR FILTER

Note: Not Used on UT08111 and UT08111A

$

$

Not available
