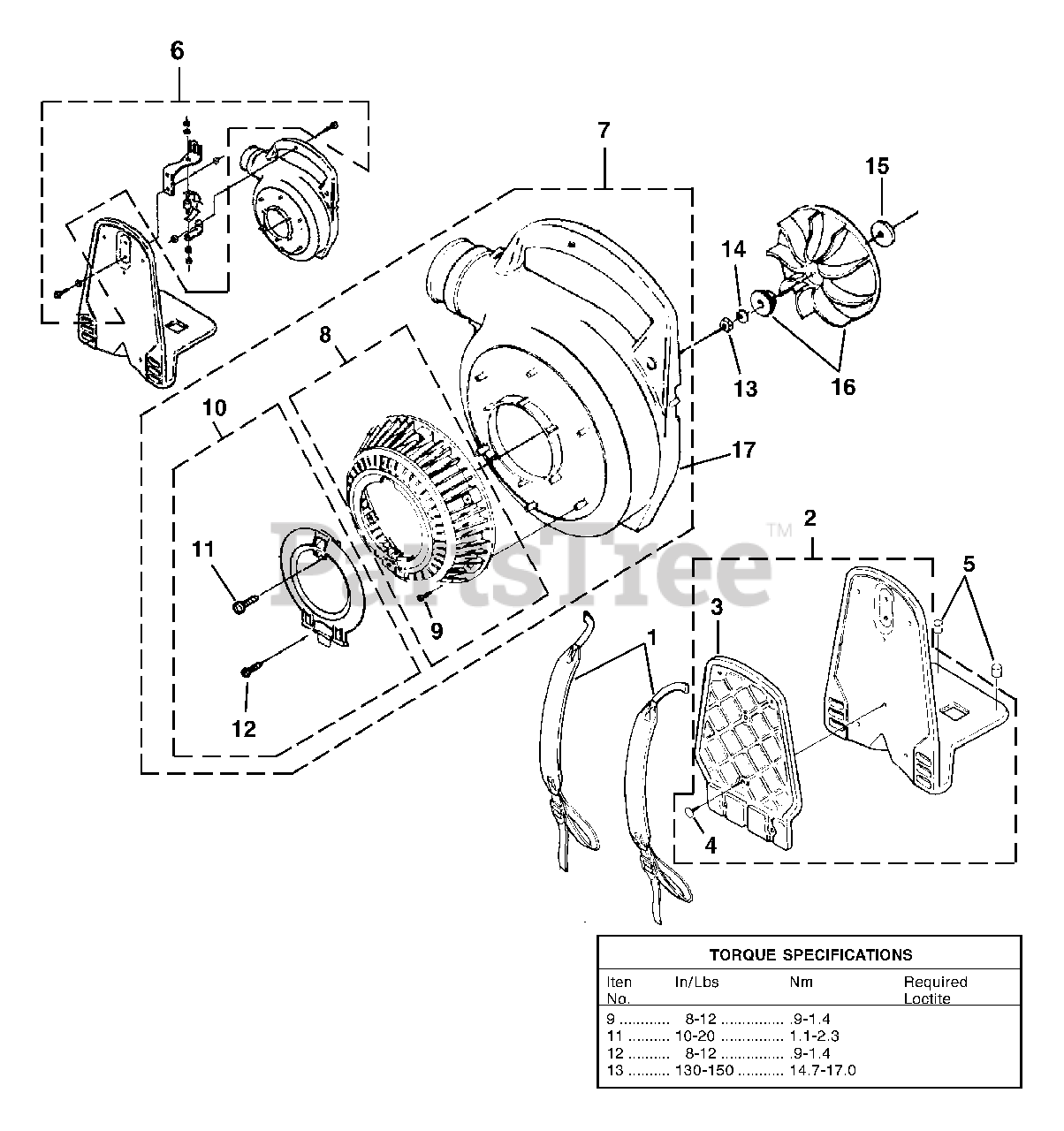

UT-08083 - Homelite The BackPacker Blower Back Pack, Tube Kit & Handle Parts Diagram

The BackPacker Blower

Back Pack, Tube Kit & Handle Parts Diagram

  • Title

1

Homelite 01776

HARNESS-Shoulder

$

$

Not available

2

Homelite UP04405A

FRAME-Blower

Note: Includes Items 3-4

$

$

Not available

3

Homelite PSO2023

PAD-Foam

$

$

Currently unavailable

4

Homelite 01783

CLIP-Push

$4.99

$

Usually ships in 3-7 days

0

5

Homelite 01770A

VIBRATION ISOLATOR

Note: (One included in #6 kit)

$

$

Not available

6

Homelite UP06885A

VIBRATION ISOLATOR KIT
(Superseded to 985073001)

$

$

Not available

7

Homelite 984918001

VOLUTE HOUSING KIT

Note: Includes Items 8-12;Not Used on UT08111 and UT08111A

$

$

Not available

8

Homelite UP06720A

BLOWER VAC GRILLE KIT

Note: Includes Item 9

$

$

Not available

9

Homelite 82528

SCREW-Thread Form. (#6 X 3/8")

Note: Includes Items 10-12

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 984910001

ACCESS DOOR KIT **

$

$

Not available

11

Homelite 82312

SCREW-Thread Rolling (#10 X 5/8")

Note: Not Used on UT08111 and UT08111A

$

$

Not available

12

Homelite 82376

SCREW-Thread Form. (#8 X 1/2")
(Superseded to 660669001)

$1.49

$

In Stock, only 3 left!

0

13

Homelite 81124A

NUT-Hex (3/8-24)

$

$

Not available

14

Homelite 03163

WASHER-Bellville (3/8")

$

$

Not available

15

Homelite 03165

WASHER-Flat
(Superseded to 650016001)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite UP06826A

BLOWER FAN KIT
(Superseded to 000998274)

$

$

Not available

17

Homelite 985121001

VOLUTE OUTER - SVC
(Superseded to PS03169)

$

$

Not available
