UT-05064 - Homelite Dolly Kit Handle Assembly Parts Diagram

Dolly Kit

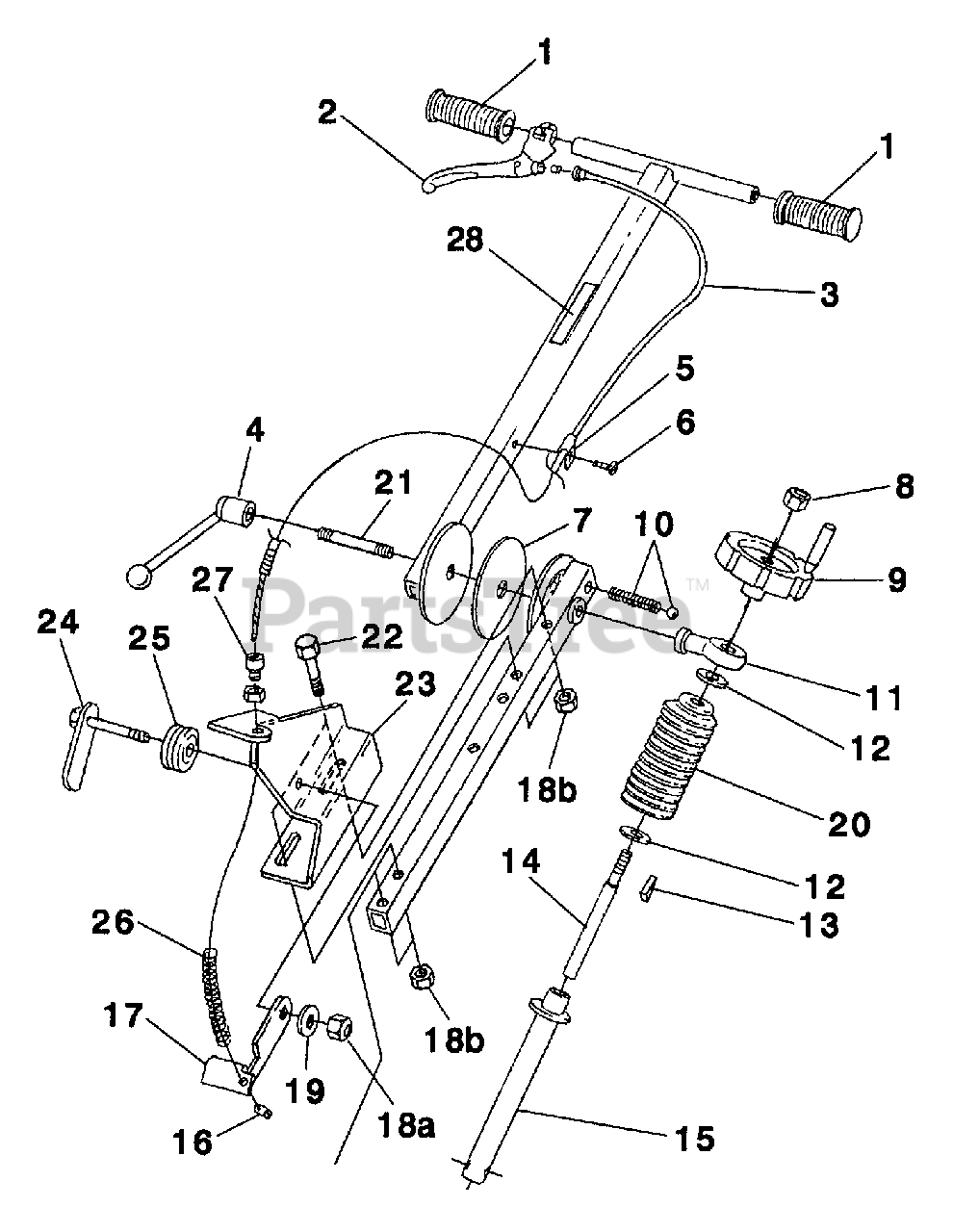

Handle Assembly Parts Diagram

  • Title

1

Homelite 0889727

Handle Grip

$

$

Not available

2

Homelite 0889728

Throttle Lever

$

$

Currently unavailable

3

Homelite A0889738

Throttle Cable

$

$

Currently unavailable

4

Homelite A0889729

Locking Handle

$

$

Currently unavailable

5

Homelite 0889743

Cable Casing Clamp

$

$

Currently unavailable

6

Homelite 80648

Screw, Slotted 10-32 x .5

Note: Torque Specs. 15-20 In/Lbs, 1.7-2.3 Nm

$

$

Not available

7

Homelite 0889730

Neoprene Disk

$

$

Not available

8

Homelite 81218

Nut 3/16-18
(Superseded to UP06646)

Note: Torque Specs. 140-160 In/Lbs, 15.8-18.1 Nm

$

$

Not available

9

Homelite 0889719

Handwheel

$

$

Currently unavailable

10

Homelite 0889723

Detent & Spring

$

$

Not available

11

Homelite 0889717

Rod end

$

$

Currently unavailable

12

Homelite 84126

Flat Washer (.438)

$

$

Currently unavailable

13

Homelite 0889722

Woodruff Key

$

$

Not available

14

Homelite 0889720

Depth Screw

$

$

Not available

15

Homelite 0889718

Depth Adjusting Tube

$

$

Not available

16

Homelite 0889740

Locking Barrel & Screw

$

$

Currently unavailable

17

Homelite 0889733

Trigger Lever

$

$

Not available

18A

Homelite JA993720

Nut 5/16

Note: Torque Specs. 15-25 In/Lbs, 1.7-2.8 Nm

$

$

Not available

18B

Homelite JA993720

Nut 5/16

Note: Torque Specs. 80-100 In/Lbs, 9.0-11.3 Nm

$

$

Not available

19

Homelite 84001

Flat Washer

$

$

Not available

20

Homelite 0889721

Boot

$

$

Currently unavailable

21

Homelite 0889716

Handle Stud

$

$

Currently unavailable

22

Homelite 80268

Bolt 5/16-18 x 2.25

$

$

Not available

23

Homelite 0889732

Rear Handle Bracket

$

$

Currently unavailable

24

Homelite A0889731

Clamp & Bolt Assembly

$

$

Currently unavailable

25

Homelite 0889726

Grommet

$

$

Not available

26

Homelite 0889742

Throttle Spring

$

$

Not available

27

Homelite 0889739

Barrel Adjuster

$

$

Not available

28

Homelite 09274

Warning Decal

$

$

Currently unavailable
