UT-05048 - Homelite Dolly Kit Dolly Kit P/N UT05048 (Part 2) Parts Diagram

Dolly Kit

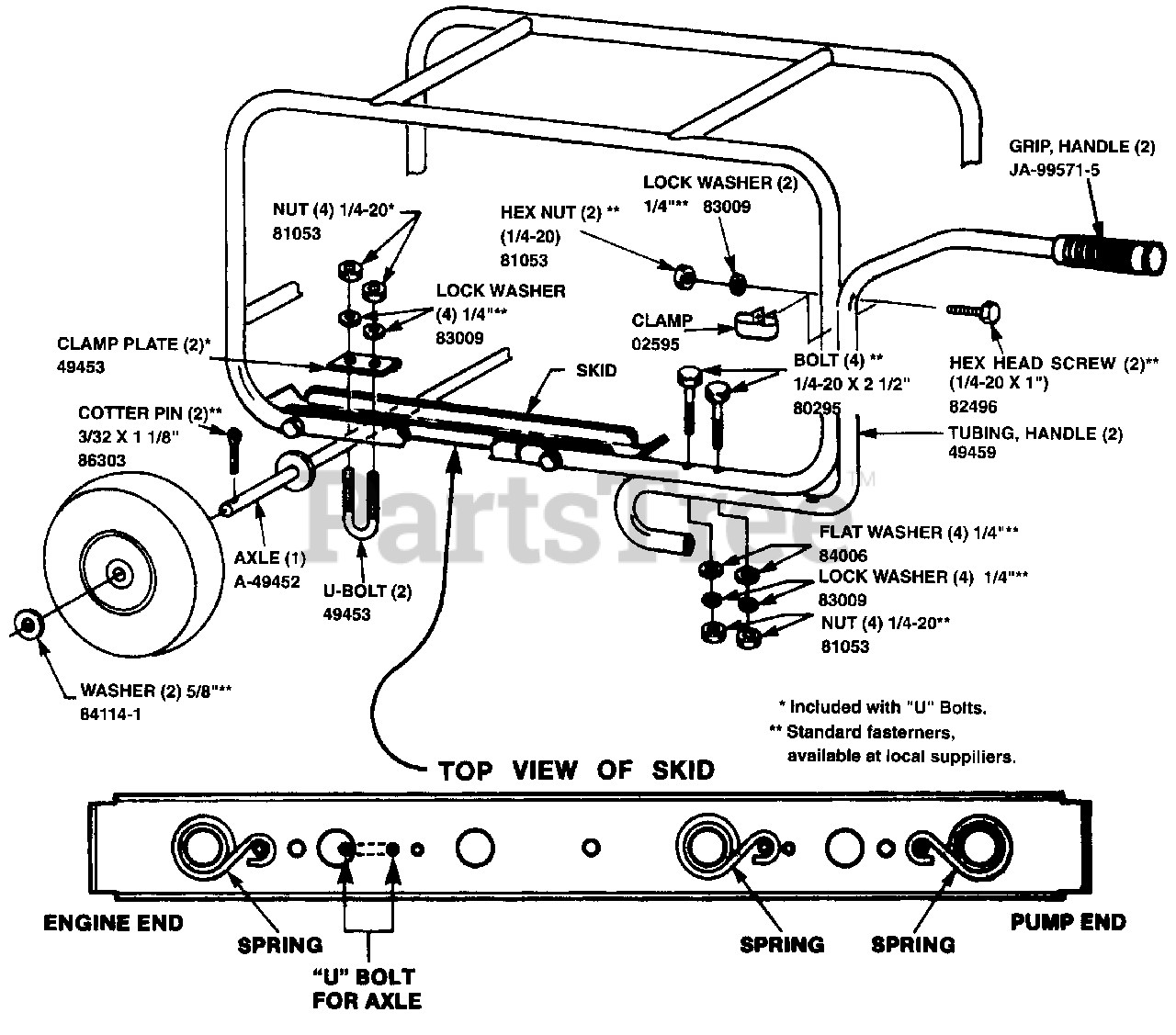

Dolly Kit P/N UT05048 (Part 2) Parts Diagram

  • Title

49453

Homelite 49453

Clamp Plate
(Superseded to UP05656)

Note: Included with "U" bolts.

$

$

Not available

86303

Homelite 86303

Cotter Pin 3/32 x 1 1/8"

Note: Standard fastener available at local suppliers.

$

$

Not available

A49452

Homelite A49452

Axle

$

$

Currently unavailable

841141

Homelite 841141

Washer 5/8"

Note: Standard fastener available at local suppliers.

$

$

Not available

49453

Homelite 49453

U-Bolt
(Superseded to UP05656)

$

$

Not available

81053

Homelite 81053

Hex Nut 1/4-20

Note: Standard fastener available at local suppliers. Included with "U" bolts.

$

$

Not available

83009

Homelite 83009

Lock Washer 1/4"

Note: Standard fastener available at local suppliers.

$8.49

$

Usually ships in 3-7 days

0

02595

Homelite 02595

Clamp

$24.99

$

Usually ships in 3-7 days

0

80295

Homelite 80295

Bolt 1/4-20 x 2 1/2"

Note: Standard fastener available at local suppliers.

$4.99

$

Usually ships in 3-7 days

0

84006

Homelite 84006

Flat Washer 1/4"

Note: Standard fastener available at local suppliers.

$

$

Not available

82496

Homelite 82496

Hex Head Screw 1/4-20 x 1"

Note: Standard fastener available at local suppliers.

$

$

Not available

JA995715

Homelite JA995715

Grip, Handle

$9.49

$

Usually ships in 3-7 days

0

49450

Homelite 49450

Tubing, Handle

$219.99

$

Usually ships in 3-7 days

0
