UT-05032-B - Homelite Dolly Kit Dolly Kit Parts Diagram

Dolly Kit

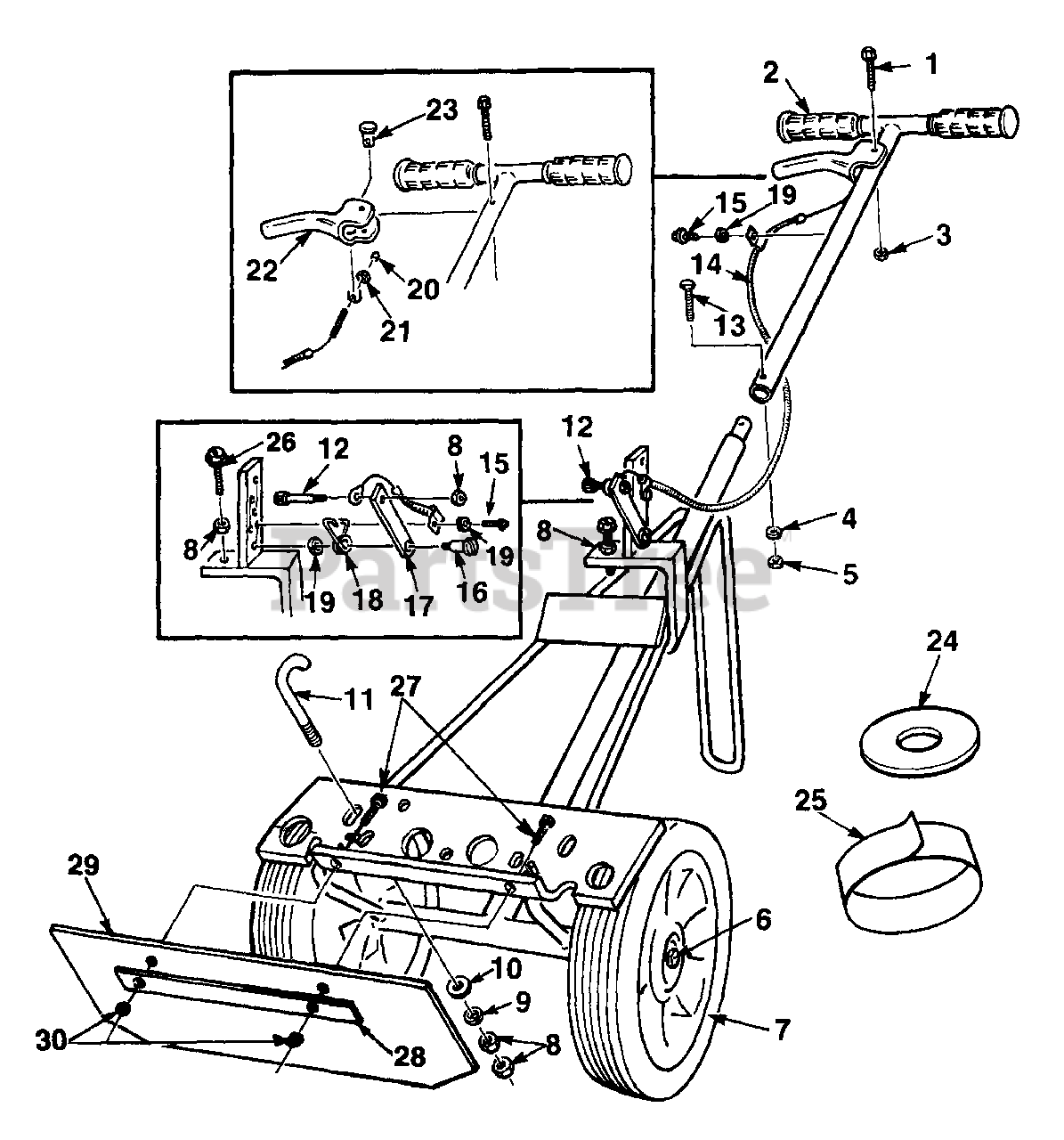

Dolly Kit Parts Diagram

  • Title

1

Homelite 82278

SCREW- Hex Head (1/4-20 X 1 1/2")

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 04601

GRIP- Handle

$

$

Not available

3

Homelite 81204

NUT- Lock (1/4-20)

$5.99

$

Usually ships in 3-7 days

0

4

Homelite 83003

WASHER- Lock (5/16")
(Superseded to UP03791)

$

$

Not available

5

Homelite 81018

NUT- Hex (5/16-18)

$

$

Not available

6

Homelite JA992138

AXLE- Wheel
(Superseded to UP06685)

$

$

Currently unavailable

7

Homelite JA993958

WHEEL/TIRE ASSEMBLY
(Superseded to UP06670)

$

$

Not available

8

Homelite 81267

NUT- Hex (1/4-20)

$

$

Not available

9

Homelite 83009

WASHER- Lock (1/4")

$8.49

$

Usually ships in 3-7 days

0

10

Homelite 84020

WASHER- Flat (1/4")

$

$

Not available

11

Homelite 49251

"J" BOLT

$

$

Not available

12

Homelite 80295

SCREW- Socket Head Cap (1/4-20 x 2")

$4.99

$

Usually ships in 3-7 days

0

13

Homelite 80087

SCREW- Hex Head (5/16 x 18 x 1 1/2")

$

$

Not available

14

Homelite 49246

CABLE- Throttle

$

$

Not available

15

Homelite 80870

SCREW- Sems Hex Head (10-32 x 3/8")

$4.99

$

Usually ships in 3-7 days

0

16

Homelite 63855A

SCREW- Shoulder (#10-32)

$

$

Not available

17

Homelite 49248A

PLATE- Trigger Lever

$

$

Currently unavailable

18

Homelite 49247

SPRING- Return

$

$

Not available

19

Homelite 83006

WASHER- Lock (#10)

$

$

Not available

20

Homelite 49308

CAP

$

$

Not available

21

Homelite 81256

NUT- Lock (#10-24)

$

$

Not available

22

Homelite 49249

LEVER- Throttle

$

$

Not available

23

Homelite JA990258

SWIVEL

$113.99

$

Usually ships in 3-7 days

0

24

Homelite 840281

WASHER

Note: For DM-20

$

$

Currently unavailable

25

Homelite 49309

STRAP- Velcro

$20.99

$

Usually ships in 3-7 days

0

26

Homelite 80882

SCREW- Hex Head (1/4-20 x 1 1/2")

$

$

Not available

27

Homelite 88043

SCREW- Hex sems (8-32 x 5/8")

$

$

Not available

28

Homelite 49899

STRIP- Metal

$

$

Not available

29

Homelite 49819A

SKIRT-Rubber

$

$

Currently unavailable

30

Homelite 81223

NUT- Centerlock (#8-32)

$

$

Not available
