UMK431 UNBA (HZAD) - Honda Brush Cutter, Made in Japan (SN: HZAD-1000001 - HZAD-1999999) CLUTCH + FAN COVER Parts Diagram

Brush Cutter, Made in Japan

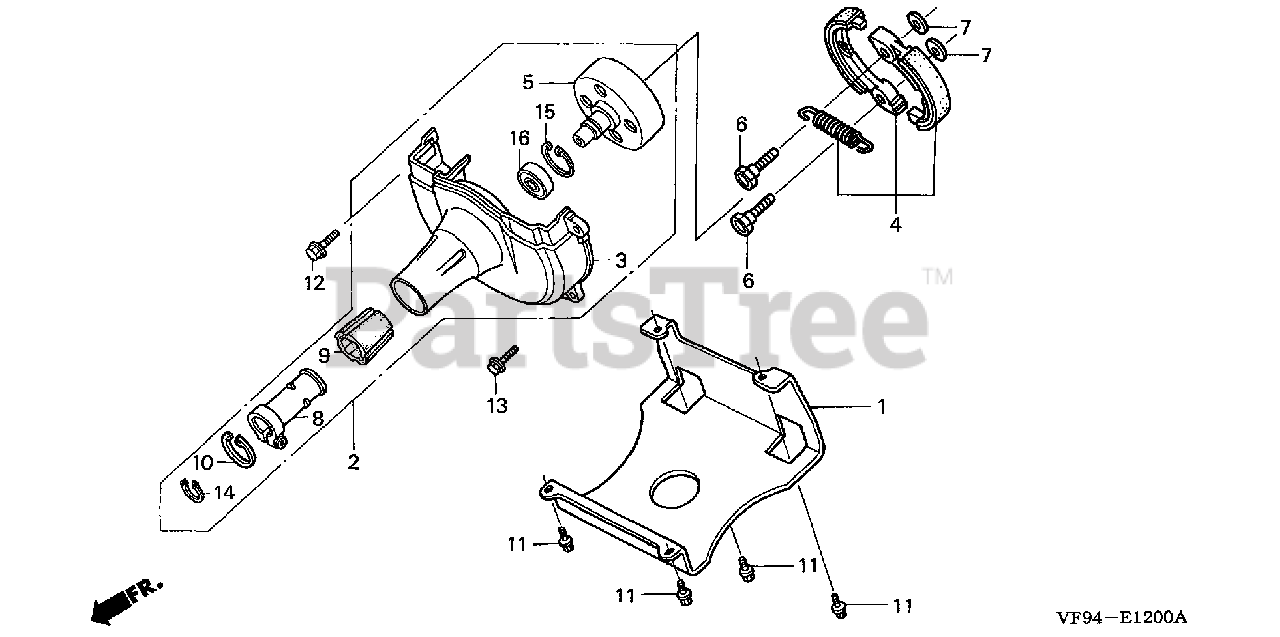

CLUTCH + FAN COVER Parts Diagram

  • Title

1

Honda 17557-VF9-A00

GUARD, TANK

$26.99

$

Usually ships in 3-6 days

0

2

Honda 19600-VF9-700ZB

COVER ASSY., FAN *NH35M* (CLOUD SILVER METALLIC)

$184.99

$

Usually ships in 3-6 days

0

3

Honda 19611-VF9-700ZB

COVER, FAN *NH35M* (CLOUD SILVER METALLIC)

$82.99

$

Usually ships in 3-6 days

0

4

Honda 22000-ZM5-003

CLUTCH ASSY.

$38.99

$

In Stock, only 1 left!

0

5

Honda 22100-VF9-700

CLUTCH (OUTER)

$56.99

$

Usually ships in 3-6 days

0

6

Honda 22253-ZM5-003

BOLT, CLUTCH (8MM)

$3.99

$

Usually ships in 3-6 days

0

7

Honda 22254-ZM5-003

WASHER, CLUTCH (8X17)

$1.99

$

Usually ships in 3-6 days

0

8

Honda 50225-VF9-700

BRACKET, ENGINE MOUNTING

$

$

Not available

9

Honda 50237-VF9-700

RUBBER, ENGINE MOUNTING

$

$

Not available

10

Honda 53549-VF9-700

CIRCLIP (INNER) (45MM)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 90003-892-000

BOLT, FLANGE (5X12)

$1.99

$

In Stock, only 1 left!

0

12

Honda 90005-ZM3-000

BOLT, FLANGE (5X18)

$1.99

$

In Stock, Qty 16

0

13

Honda 90112-GK8-010

BOLT, FLANGE (5X22)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 94510-15000

CIRCLIP (OUTER) (15MM)

$1.99

$

In Stock, Qty 9

0

15

Honda 94520-35000

CIRCLIP (INNER) (35MM)

$2.99

$

In Stock, only 2 left!

0

16

Honda 96130-62020-10

BEARING, RADIAL BALL (6202)

$19.99

$

Usually ships in 3-6 days

0
