UMK431 K1 UNBA (HZAD) - Honda Brush Cutter, Made in Japan (SN: HZAD-2000001 - HZAD-2049999) THROTTLE LEVER (4) Parts Diagram

Brush Cutter, Made in Japan

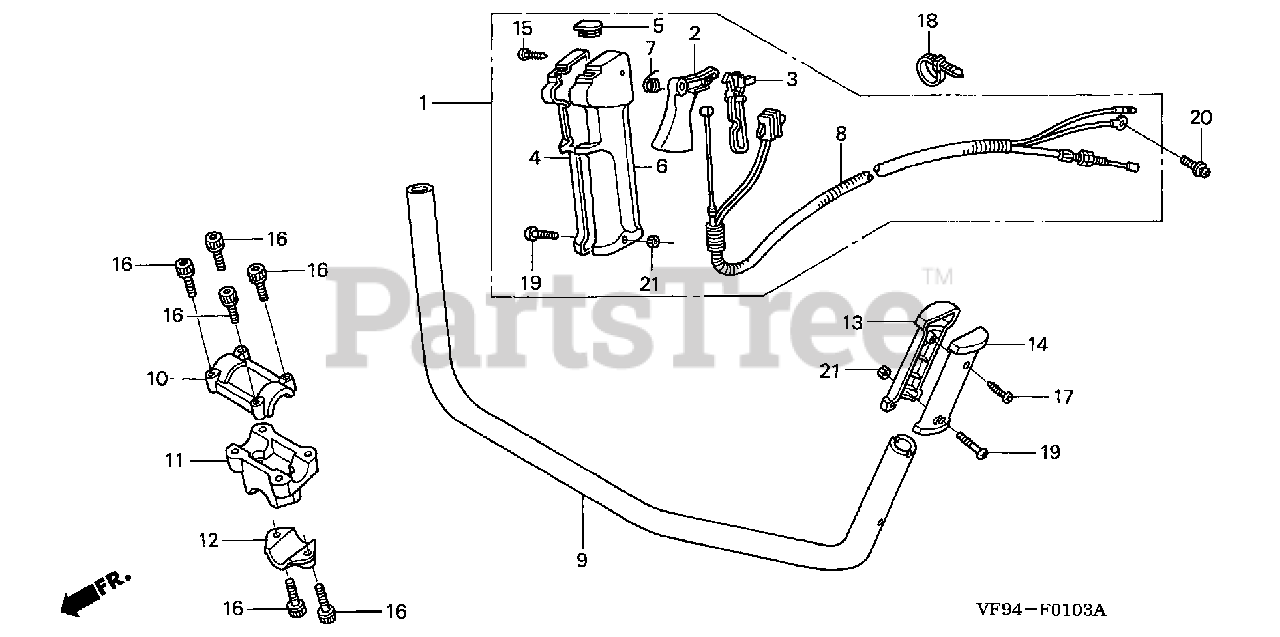

THROTTLE LEVER (4) Parts Diagram

  • Title

1

Honda 17850-VF9-V31

LEVER ASSY., THROTTLE (U)

$

$

Not available

2

Honda 17851-VF9-V31

LEVER, THROTTLE

$

$

Not available

3

Honda 17852-VF9-V31

LEVER, THROTTLE LOCK

$

$

Not available

4

Honda 17853-VF9-V31

GRIP, R. THROTTLE LEVER

$7.99

$

Usually ships in 3-6 days

0

5

Honda 17854-VF9-V31

CAP, THROTTLE LEVER

$1.49

$

In Stock, Qty 7

0

6

Honda 17856-VF9-V31

GRIP, L. THROTTLE LEVER

$7.99

$

In Stock, only 1 left!

0

7

Honda 17859-VF9-V31

SPRING, THROTTLE LEVER

$1.99

$

Usually ships in 3-6 days

0

8

Honda 32100-VF9-V31

WIRE HARNESS ASSY.

$20.99

$

Usually ships in 3-6 days

0

9

Honda 53111-VF9-V30

PIPE, HANDLE

$56.99

$

Usually ships in 3-6 days

0

10

Honda 53136-VF9-A01

HOLDER A, HANDLE

$11.99

$

Usually ships in 3-6 days

0

11

Honda 53137-VF9-A01

HOLDER B, HANDLE

$21.99

$

Usually ships in 3-6 days

0

12

Honda 53138-VF9-A01

HOLDER C, HANDLE

$7.99

$

Usually ships in 3-6 days

0

13

Honda 53165-VF9-V31

GRIP A, HANDLE

$11.99

$

Usually ships in 3-6 days

0

14

Honda 53166-VF9-V31

GRIP B, HANDLE

$11.99

$

Usually ships in 3-6 days

0

15

Honda 90101-VF9-V31

SCREW, TAPPING (4X20)

$1.99

$

In Stock, Qty 5

0

16

Honda 90107-VF9-A00

BOLT, SOCKET (6X30)

$3.49

$

In Stock, only 4 left!

0

17

Honda 90111-VF9-V31

SCREW, TAPPING (5X16) (PO)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 90651-MA6-720

BAND, WIRE HARNESS

$5.99

$

Usually ships in 3-6 days

0

19

Honda 93500-05030-0G

SCREW, PAN (5X30)

$

$

Not available

20

Honda 93893-05012-00

SCREW-WASHER (5X12)

$1.99

$

In Stock, only 3 left!

0

21

Honda 94002-05070-0S

NUT, HEX. (5MM)

$0.99

$

In Stock, Qty 6

0
