UMK431 K1 UNBA/A (HZAD) - Honda Brush Cutter, Made in Japan (SN: HZAD-2050001 - HZAD-9999999) GEAR CASE (2) Parts Diagram

Brush Cutter, Made in Japan

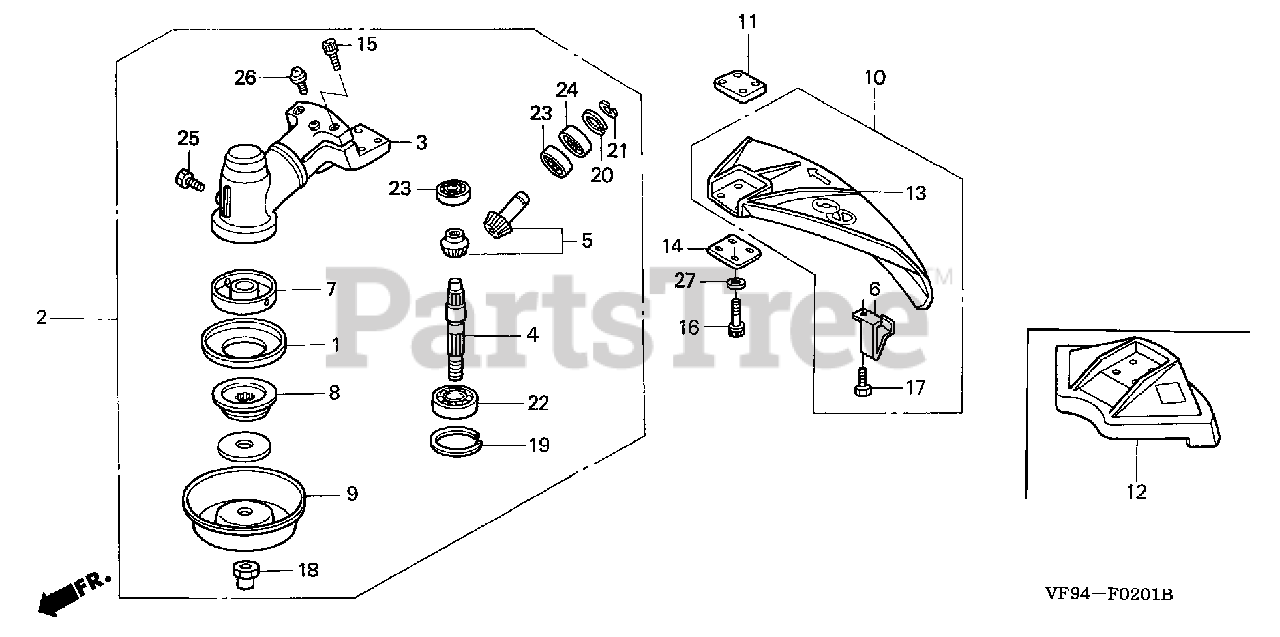

GEAR CASE (2) Parts Diagram

  • Title
1

Honda 21912-VF9-J01

SEE PART DETAILS - SUP; GUARD, GRASS

$

$

Not available

2

Honda 41100-VF9-M01

SEE PART DETAILS - SUP; CASE ASSY., GEAR
(Superseded to 41100-VL1-023)

$178.99

$

Usually ships in 3-6 days

0

3

Honda 41101-VF9-K01

CASE, GEAR

$

$

Not available

4

Honda 41123-VF9-B01

SHAFT, GEAR

$

$

Not available

5

Honda 41125-VF9-B01

GEAR ASSY., BEVEL

$

$

Not available

6

Honda 72571-VF9-K01

PLATE, NYLON CUTTING

$

$

Not available

7

Honda 72611-VF9-J01

SEE PART DETAILS - SUP; HOLDER A, BLADE
(Superseded to 76210-VK4-A01)

$39.99

$

Usually ships in 3-6 days

0

8

Honda 72621-VF9-003

HOLDER B, BLADE

$591.99

$

Usually ships in 3-6 days

0

9

Honda 72623-VF9-A01

COVER, NUT
(Superseded to 72623-VL6-P31)

$556.99

$

Usually ships in 3-6 days

0

10

Honda 76240-VF9-K01

DEFLECTOR ASSY., GRASS

$31.99

$

Usually ships in 3-6 days

0

11

Honda 76242-VF9-V30

SPACER, DEFLECTOR

$3.49

$

Usually ships in 3-6 days

0

12

Honda 76247-VF9-D60

DEFLECTOR, GRASS

$28.99

$

Usually ships in 3-6 days

0

13

Honda 76247-VF9-J01

DEFLECTOR, GRASS

$

$

Not available

14

Honda 76259-VF9-J01

PLATE, DEFLECTOR

$4.49

$

In Stock, only 2 left!

0

15

Honda 90102-VF9-003

BOLT, SOCKET (5X20)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90109-VF9-J00

BOLT, SOCKET (5X30)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90112-VF9-J01

BOLT, SOCKET (5X15)
(Superseded to 90101-VJ3-003)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90301-VF9-A01

NUT, HEX. (10MM)

$20.99

$

Usually ships in 3-6 days

0

19

Honda 90652-VF9-A01

CIRCLIP (INNER) (28MM)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90654-VF9-B01

CIRCLIP (INNER) (26MM)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90655-VF9-B01

CIRCLIP (OUTER) (10MM)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 91053-VF9-A01

BEARING, RADIAL BALL (6001LL)

$17.99

$

Usually ships in 3-6 days

0

23

Honda 91055-VF9-B01

BEARING, RADIAL BALL (6000)

$16.99

$

In Stock, only 1 left!

0

24

Honda 91056-VF9-B01

BEARING, RADIAL BALL (6000Z)

$18.99

$

Usually ships in 3-6 days

0

25

Honda 93301-06008-0A

BOLT, HEX. (6X8)

$

$

Not available

26

Honda 93892-05010-07

SCREW-WASHER (5X10)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 94101-05000

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 3 left!

0
