UMK431 K1 UNBA/A (HZAD) - Honda Brush Cutter, Made in Japan (SN: HZAD-2050001 - HZAD-9999999) FUEL TANK Parts Diagram

Brush Cutter, Made in Japan

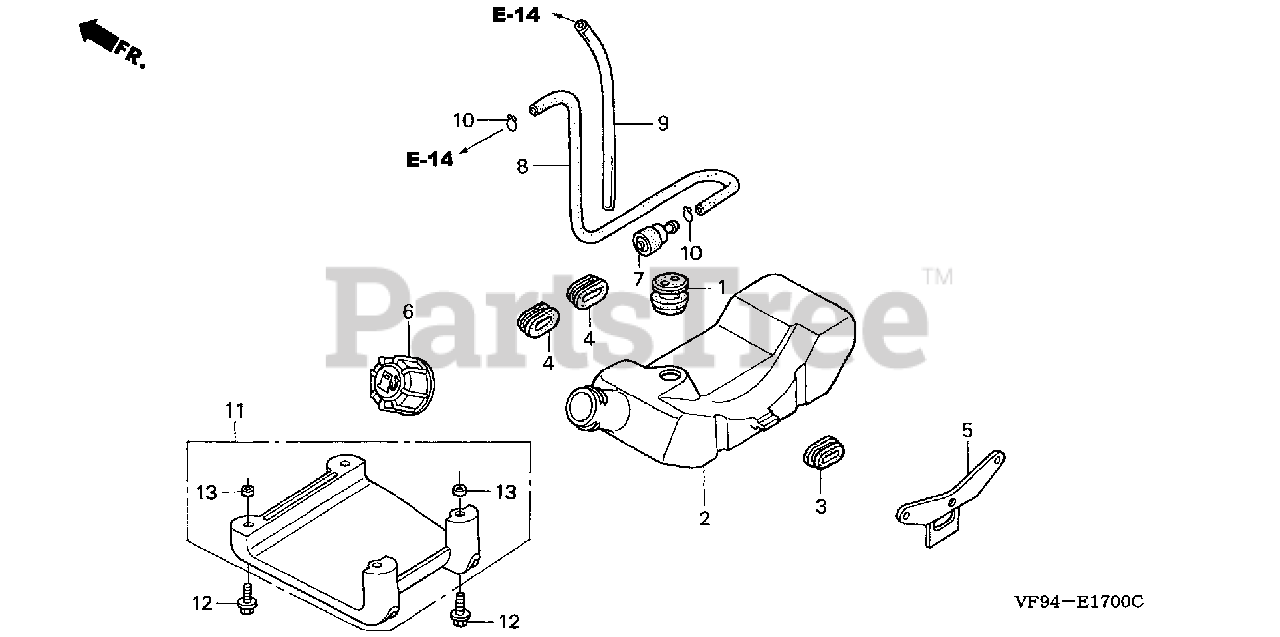

FUEL TANK Parts Diagram

  • Title

1

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

$4.49

$

In Stock, Qty 19

0

2

Honda 17511-ZM5-023

SEE PART DETAILS - PRI; TANK, FUEL

$31.99

$

In Stock, only 1 left!

0

3

Honda 17532-ZM3-010

SEE PART DETAILS - PRI; RUBBER A, TANK MOUNTING

$2.49

$

In Stock, Qty 6

0

4

Honda 17533-ZM3-000

SEE PART DETAILS - SUP; RUBBER B, TANK MOUNTING
(Superseded to 17532-ZM3-010)

$2.49

$

In Stock, Qty 6

0

6

Honda 17620-ZM3-053

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZM3-073)

$13.99

$

In Stock, only 2 left!

0

7

Honda 17672-ZM3-003

SEE PART DETAILS - SUP; FILTER, FUEL
(Superseded to 17672-Z0H-003)

Note: Use up to Engine SN 2168923.

$6.99

$

In Stock, only 2 left!

0

7

Honda 17672-Z0H-003

SEE PART DETAILS - PRI; FILTER, FUEL

Note: Use from Engine SN 2168924.

$6.99

$

In Stock, only 2 left!

0

8

Honda 17701-ZM3-003

TUBE, FUEL

$7.99

$

In Stock, Qty 5

0

9

Honda 17702-ZM3-003

SEE PART DETAILS - PRI; TUBE, FUEL RETURN

$2.99

$

In Stock, Qty 6

0

10

Honda 91401-ZM3-003

CLIP, TUBE

$1.99

$

In Stock, Qty 5

0

11

Honda 17555-ZM3-J80

GUARD, TANK

$

$

Not available

12

Honda 90012-ZM3-U30

BOLT, FLANGE (5X14) (CT200)

$2.49

$

Usually ships in 3-6 days

0

13

Honda 91502-ZM3-000

COLLAR, TOP COVER

$1.49

$

In Stock, Qty 6

0
