UMK431 K1 LNA (HZAE) - Honda Brush Cutter, Made in Japan (SN: HZAE-2000001 - HZAE-2009999) RECOIL STARTER Parts Diagram

Brush Cutter, Made in Japan

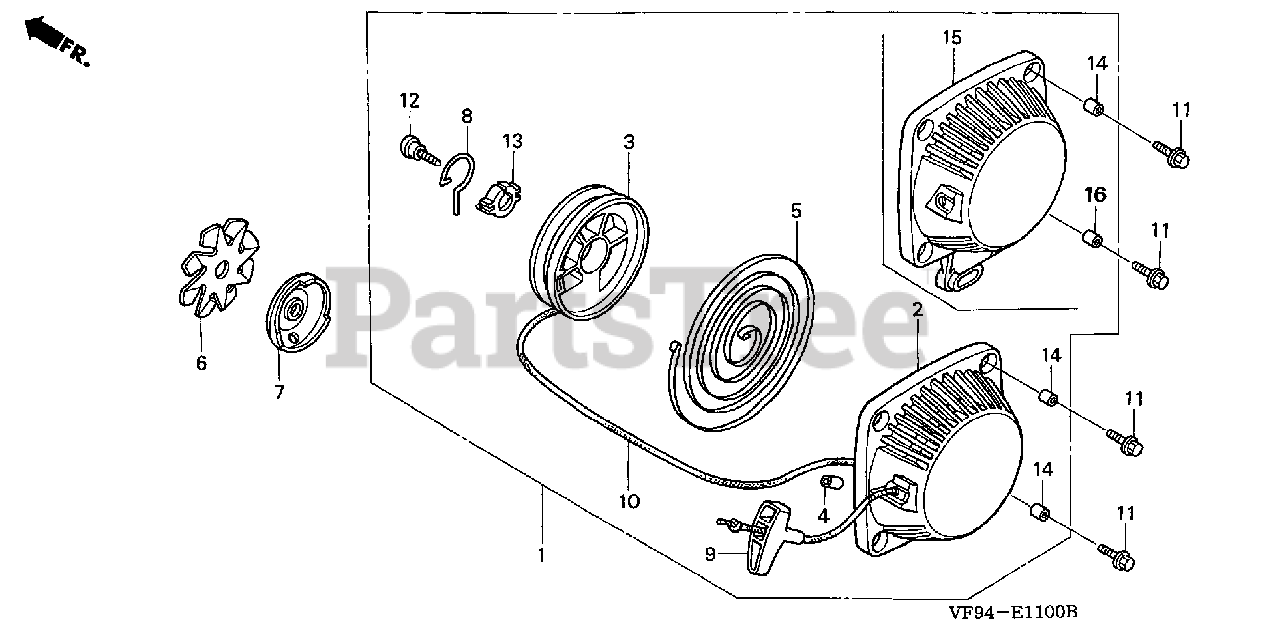

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZM3-J81ZA

STARTER ASSY., RECOIL *NH1* (BLACK)

$

$

Not available

3

Honda 28421-ZM3-003

REEL, RECOIL STARTER

$10.99

$

In Stock, Qty 6

0

4

Honda 28433-ZM3-003

GUIDE, ROPE

$2.49

$

In Stock, only 4 left!

0

5

Honda 28442-ZM3-003

SPRING, RECOIL STARTER

$13.99

$

Usually ships in 3-6 days

0

6

Honda 28447-ZM3-000

FAN, RATCHET

$3.49

$

In Stock, only 1 left!

0

7

Honda 28451-ZM3-003

PULLEY, RECOIL STARTER

$7.49

$

Usually ships in 3-6 days

0

8

Honda 28459-ZM3-003

SWINGARM

$4.99

$

In Stock, only 2 left!

0

9

Honda 28461-ZM3-003

KNOB, RECOIL STARTER

$4.49

$

Usually ships in 3-6 days

0

10

Honda 28462-ZM3-003

ROPE, RECOIL STARTER (#3.5X40")

$5.99

$

In Stock, only 1 left!

0

11

Honda 90005-ZM3-000

BOLT, FLANGE (5X18)

$1.99

$

In Stock, Qty 5

0

12

Honda 90012-ZM3-003

SCREW, SETTING

$1.99

$

Usually ships in 3-6 days

0

13

Honda 91504-ZM3-003

COLLAR

$1.99

$

In Stock, only 3 left!

0

14

Honda 91505-ZM3-003

COLLAR

$

$

Not available

15

Honda 28414-ZM3-J81ZA

CASE, RECOIL STARTER *NH1* (BLACK)

$32.99

$

Usually ships in 3-6 days

0

16

Honda 91506-ZM3-000

COLLAR A, HEAD COVER

$1.99

$

In Stock, only 4 left!

0
