UMK422 K1 LNA (HZAB) - Honda Brush Cutter, Made in Japan (SN: HZAB-2000001 - HZAB-2999999) CAMSHAFT Parts Diagram

Brush Cutter, Made in Japan

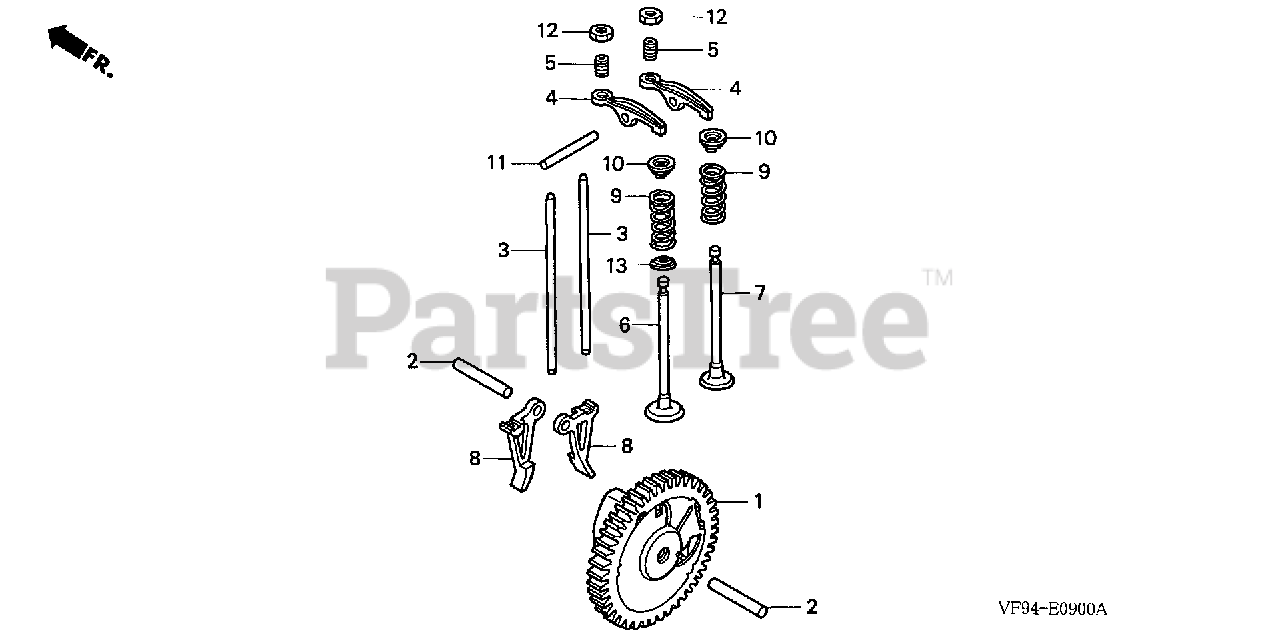

CAMSHAFT Parts Diagram

  • Title

1

Honda 14100-ZM3-010

SEE PART DETAILS - PRI; CAMSHAFT ASSY.

$28.99

$

Usually ships in 3-6 days

0

2

Honda 14126-ZM3-000

ROLLER (5X23.8)

$1.99

$

Usually ships in 3-6 days

0

3

Honda 14410-ZM3-000

ROD, PUSH

$4.99

$

Usually ships in 3-6 days

0

4

Honda 14431-ZM3-000

ARM, VALVE ROCKER

$8.99

$

Usually ships in 3-6 days

0

5

Honda 14451-ZM3-000

PIVOT, ROCKER ARM

$1.99

$

In Stock, Qty 5

0

6

Honda 14711-ZM3-000

VALVE, IN.

$16.99

$

Usually ships in 3-6 days

0

7

Honda 14721-ZM3-000

VALVE, EX.

$18.99

$

Usually ships in 3-6 days

0

8

Honda 14731-ZM3-003

LIFTER, VALVE

$7.99

$

Usually ships in 3-6 days

0

9

Honda 14751-ZM3-000

SEE PART DETAILS - SUP; SPRING, VALVE
(Superseded to 14751-ZM3-010)

$1.49

$

In Stock, only 2 left!

0

9

Honda 14751-ZM3-010

SEE PART DETAILS - PRI; SPRING, VALVE

$1.49

$

In Stock, only 2 left!

0

10

Honda 14771-ZM3-010

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING
(Superseded to 14771-ZDF-000)

$1.49

$

In Stock, only 3 left!

0

11

Honda 41313-PL3-000

ROLLER (4X28)

$6.49

$

Usually ships in 3-6 days

0

12

Honda 90206-ZM3-000

NUT, TAPPET ADJUSTING

$1.49

$

In Stock, only 1 left!

0

13

Honda 12209-ZM3-003

SEE PART DETAILS - SUP; SEAL, VALVE STEM

Note: Use up to Engine SN 1227310.

$

$

Currently unavailable

13

Honda 12209-ZM3-013

SEE PART DETAILS - PRI; SEAL, VALVE STEM

Note: Use from Engine SN 1227311.

$

$

Not available
