UMC435 A LAAT/A (HAHT) - Honda Brush Cutter, Made in Thailand (SN: HAHT-2000001 - HAHT-9999999) MUFFLER (UMC435) Parts Diagram

Brush Cutter, Made in Thailand

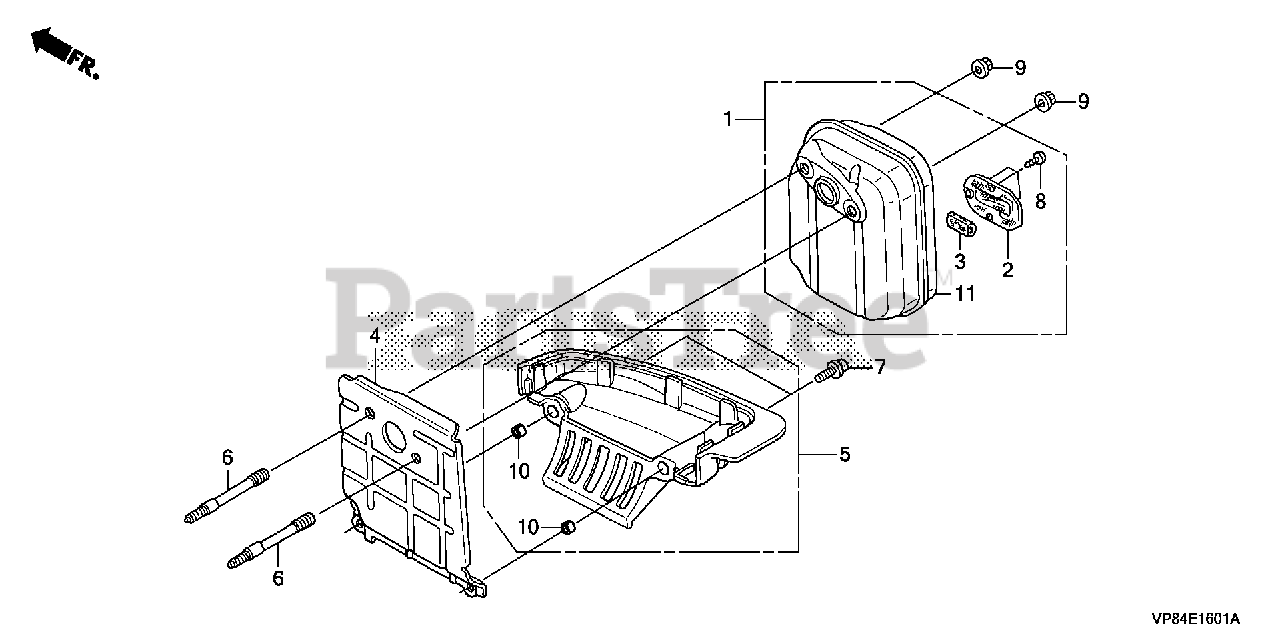

MUFFLER (UMC435) Parts Diagram

  • Title
1

Honda 18310-Z0Z-802

SEE PART DETAILS - PRI; MUFFLER (ARRESTER)

$12.99

$

Usually ships in 3-6 days

0

2

Honda 18350-Z0Z-801

ARRESTER, SPARK

$2.99

$

Usually ships in 3-6 days

0

3

Honda 18354-Z0Z-800

FILTER, EX.

$5.49

$

Usually ships in 3-6 days

0

4

Honda 18515-Z0Z-300

GUIDE, AIR

$4.49

$

In Stock, only 2 left!

0

5

Honda 18518-Z0Z-020

GUIDE, AIR (LOWER)

$8.49

$

In Stock, only 1 left!

0

6

Honda 90001-Z0Z-013

BOLT, STUD (5X56.5)

$4.49

$

Usually ships in 3-6 days

0

7

Honda 90018-Z3E-901

BOLT, SOCKET (5X16)

$4.99

$

Usually ships in 3-6 days

0

8

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)

$1.49

$

In Stock, Qty 11

0

9

Honda 90136-SM4-901

NUT, SELF-LOCK (5MM)

$7.99

$

Usually ships in 3-6 days

0

10

Honda 91506-ZM3-000

COLLAR A, HEAD COVER

$1.99

$

In Stock, only 4 left!

0
