UMC435 A LAAT/A (HAHT) - Honda Brush Cutter, Made in Thailand (SN: HAHT-2000001 - HAHT-9999999) FUEL TANK (UMC435) Parts Diagram

Brush Cutter, Made in Thailand

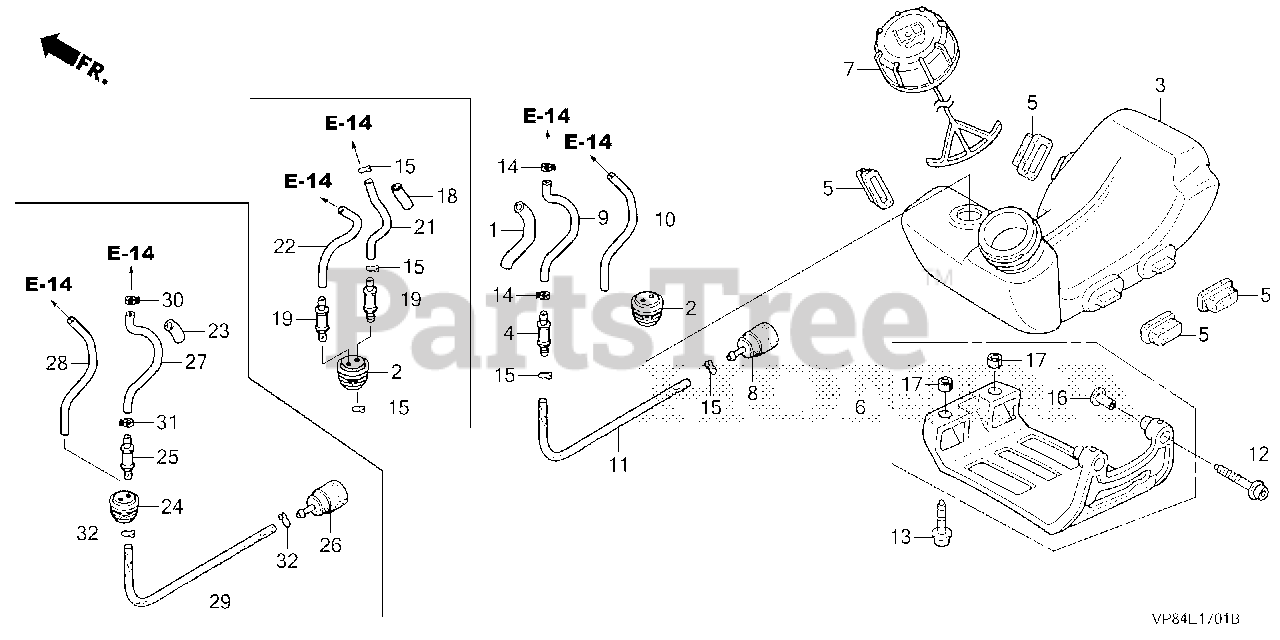

FUEL TANK (UMC435) Parts Diagram

  • Title

3

Honda 17511-Z6K-821

SEE PART DETAILS - PRI; TANK, FUEL

$51.99

$

Usually ships in 3-6 days

0

5

Honda 17533-Z0H-000

RUBBER, TANK MOUNTING

$1.99

$

In Stock, Qty 20+

0

6

Honda 17555-Z0Z-000

GUARD, TANK

$23.99

$

Usually ships in 3-6 days

0

7

Honda 17620-Z3E-M02

CAP ASSY., FUEL TANK

$15.99

$

Usually ships in 3-6 days

0

12

Honda 90010-Z3E-901

BOLT, SOCKET (5X30)

$0.99

$

Usually ships in 3-6 days

0

13

Honda 90018-Z3E-901

BOLT, SOCKET (5X16)

$4.99

$

Usually ships in 3-6 days

0

16

Honda 91501-Z0H-000

COLLAR, TANK GUARD

$1.99

$

Usually ships in 3-6 days

0

17

Honda 91506-ZM3-000

COLLAR A, HEAD COVER

$1.99

$

In Stock, only 4 left!

0

23

Honda 16865-Z6J-010

PROTECTOR, TUBE

$2.99

$

In Stock, only 2 left!

0

24

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

$4.49

$

In Stock, Qty 12

0

25

Honda 17519-Z6J-003

JOINT, FUEL TANK

$2.49

$

In Stock, Qty 8

0

26

Honda 17672-Z0H-003

SEE PART DETAILS - PRI; FILTER, FUEL

$6.99

$

Usually ships in 3-6 days

0

27

Honda 17701-Z6K-882

TUBE, FUEL (FKM)
(Superseded to 17701-Z6K-883)

$

$

Not available

28

Honda 17702-Z0H-003

TUBE, FUEL RETURN

$2.49

$

In Stock, only 4 left!

0

29

Honda 17703-Z6K-801

TUBE A, FUEL

$6.49

$

In Stock, only 3 left!

0

30

Honda 90601-Z6J-801

CLAMP, TUBE (D5.5)

$0.99

$

In Stock, Qty 10

0

31

Honda 90601-Z6J-801

CLAMP, TUBE (D5.5)

$0.99

$

In Stock, Qty 10

0

32

Honda 91401-Z3E-000

CLIP, TUBE (B1 5)

$0.99

$

In Stock, Qty 8

0
