UMC425 A LAAT/A (HAGT) - Honda Brush Cutter, Made in Thailand (SN: HAGT-2000001 - HAGT-9999999) CRANKSHAFT@PISTON Parts Diagram

Brush Cutter, Made in Thailand

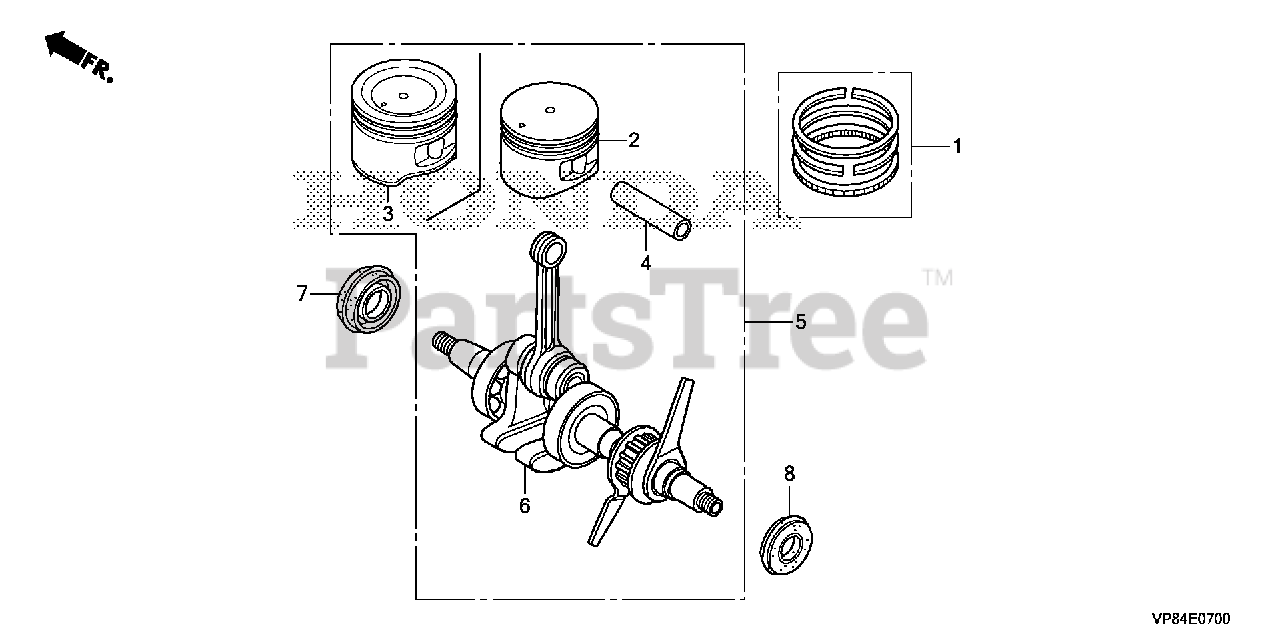

CRANKSHAFT@PISTON Parts Diagram

  • Title

1

Honda 13010-Z0H-000

RING SET, PISTON

$14.99

$

In Stock, only 1 left!

0

1

Honda 13010-Z3E-003

RING SET, PISTON (TPR)

$13.99

$

Usually ships in 3-6 days

0

2

Honda 13101-Z3E-000

SEE PART DETAILS - PRI; PISTON (STD)

$23.99

$

Usually ships in 3-6 days

0

4

Honda 13111-Z0H-000

PIN, PISTON

$3.99

$

In Stock, only 1 left!

0

5

Honda 13310-Z3E-000

SEE PART DETAILS - PRI; CRANKSHAFT

Note: Use up to Engine SN 4109384.

$73.99

$

Usually ships in 3-6 days

0

5

Honda 13310-Z3E-900

CRANKSHAFT

Note: Use from Engine SN 4109385.

$71.99

$

Usually ships in 3-6 days

0

6

Honda 13310-Z3E-305

CRANKSHAFT

Note: (Optional).Use up to Engine SN 4109384.

$127.99

$

Usually ships in 3-6 days

0

6

Honda 13310-Z3E-309

CRANKSHAFT

Note: (Optional).Use from Engine SN 4109385.

$129.99

$

Usually ships in 3-6 days

0

7

Honda 91211-Z3E-003

SEE PART DETAILS - PRI; OIL SEAL (12X24X5)

$1.49

$

In Stock, only 3 left!

0

8

Honda 91212-Z3E-003

OIL SEAL (10X20X5)

$1.99

$

In Stock, Qty 20+

0
