UltraBelt GD (BG48KA) - Ferris UltraBelt GD Series 48" Walk-Behind Mower, 13hp Kawasaki (SN: BDG101 & Above) Ground Drive Group Parts Diagram

UltraBelt GD Series 48" Walk-Behind Mower, 13hp Kawasaki

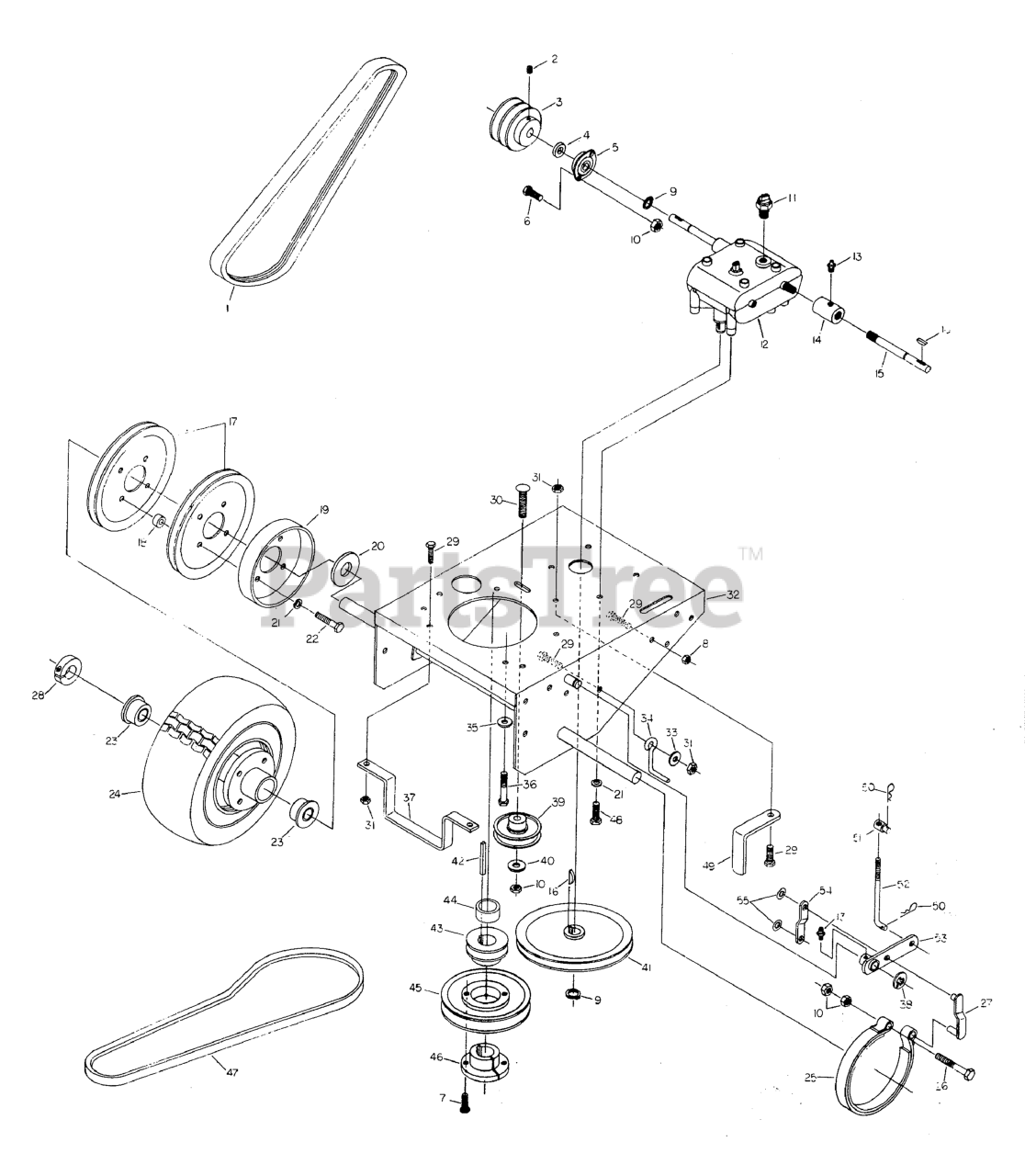

Ground Drive Group Parts Diagram

  • Title

1

Ferris 5021447

BELT, Double-A Section

$101.99

$

Usually ships in 2-12 days

0

2

Ferris 5025061X3

SET SCREW, 5/16-18 X 3/8"

$2.49

$

Usually ships in 2-12 days

0

3

Ferris 5021445

PULLEY, Double-A Section

$109.99

$

Usually ships in 2-12 days

0

4

Ferris 5800037

Transmission Shaft Spacer

$

$

Currently unavailable

5

Ferris 5800085

Bearing With Flange

$

$

Currently unavailable

6

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

7

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

8

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

9

Ferris 5020107

RING, External, Snap

$2.99

$

Usually ships in 2-12 days

0

10

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

11

Ferris 5800065

Transmission Switch

$

$

Currently unavailable

12

Ferris 5021544

Model 700-032 5 Speed Gear Box

$

$

Currently unavailable

13

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

14

Ferris 5800022

Coupler With Zerk

$

$

Currently unavailable

15

Ferris 5800032

Shaft Extension

$

$

Currently unavailable

16

Ferris 5020051

KEY, #9 Woodruff

$

$

Currently unavailable

17

Ferris 5021439

PULLEY, Ground Drive

$39.99

$

In Stock, only 2 left!

0

18

Ferris 5021440

SPACER, Pulley
(Superseded to 5102581YP)

$11.99

$

Usually ships in 2-12 days

0

19

Ferris 5021441

BRAKE DRUM

$32.99

$

Usually ships in 2-12 days

0

20

Ferris 5025162

WASHER, 1" SAE
(Superseded to 5025162SM)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

22

Ferris 5025011X12

BOLT, 5/16-18 x 1-1/2
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

23

Ferris 5800060

Wheel Bearing

$

$

Currently unavailable

24

Ferris 5021443

Wheel/Tire Assembly

$202.99

$

Usually ships in 2-12 days

0

25

Ferris 5800058

Brake Bank

$

$

Currently unavailable

26

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

27

Ferris 5800009

Brake Connector Assembly

$

$

Currently unavailable

28

Ferris 5020602

COLLAR, 1" Split
(Superseded to 5020602SM)

$22.99

$

In Stock, only 1 left!

0

29

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

30

Ferris E107501

3/8-16 x 2 Carriage Bolt

$

$

Currently unavailable

31

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

32

Ferris E362010

Rear Deck Assembly

$

$

Currently unavailable

33

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

34

Ferris 5800036

Round Belt Guide

$

$

Currently unavailable

35

Ferris E363223

Disc Spring

$

$

Currently unavailable

36

Ferris 5025237X25

BOLT, M8-1.25 X 25MM GR 8.8
(Superseded to 5025237X25YP)

$3.99

$

Usually ships in 2-12 days

0

37

Ferris 5043612

Belt Guide

$

$

Currently unavailable

38

Ferris E108500

5/8 E Ring

$

$

Currently unavailable

39

Ferris 5043613

IDLER PULLEY ASSEMBLY
(Superseded to 5043613YP)

$56.99

$

In Stock, only 2 left!

0

40

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

41

Ferris 5800071

Transmission Pulley

$

$

Currently unavailable

42

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

43

Ferris 5800042

Pulley (To Transmission)

$

$

Currently unavailable

44

Ferris 5042303

SPACER, 1.13 X 1.50 X .50

$

$

Currently unavailable

45

Ferris 5020814

PULLEY, Spindle

$82.99

$

Usually ships in 2-12 days

0

46

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, Qty 5

0

47

Ferris 5800068

Transmission Belt

$

$

Currently unavailable

48

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

49

Ferris 5800044

Flat Belt Guide

$

$

Currently unavailable

50

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

51

Ferris 5800031

Rod Swivel

$

$

Currently unavailable

52

Ferris 5800047

Brake Rod

$

$

Currently unavailable

53

Ferris E362014

Brake Arm Assembly Right

$

$

Currently unavailable

53

Ferris E362016

Brake Arm Assembly Left

$

$

Currently unavailable

54

Ferris 5800045

Brake Connector

$

$

Currently unavailable

55

Ferris 5800059

3/8 Push Nut

$

$

Currently unavailable
