UltraBelt GD (BG48KA) - Ferris UltraBelt GD Series 48" Walk-Behind Mower, 13hp Kawasaki (SN: BDG101 & Above) Gearbox Group Parts Diagram

UltraBelt GD Series 48" Walk-Behind Mower, 13hp Kawasaki

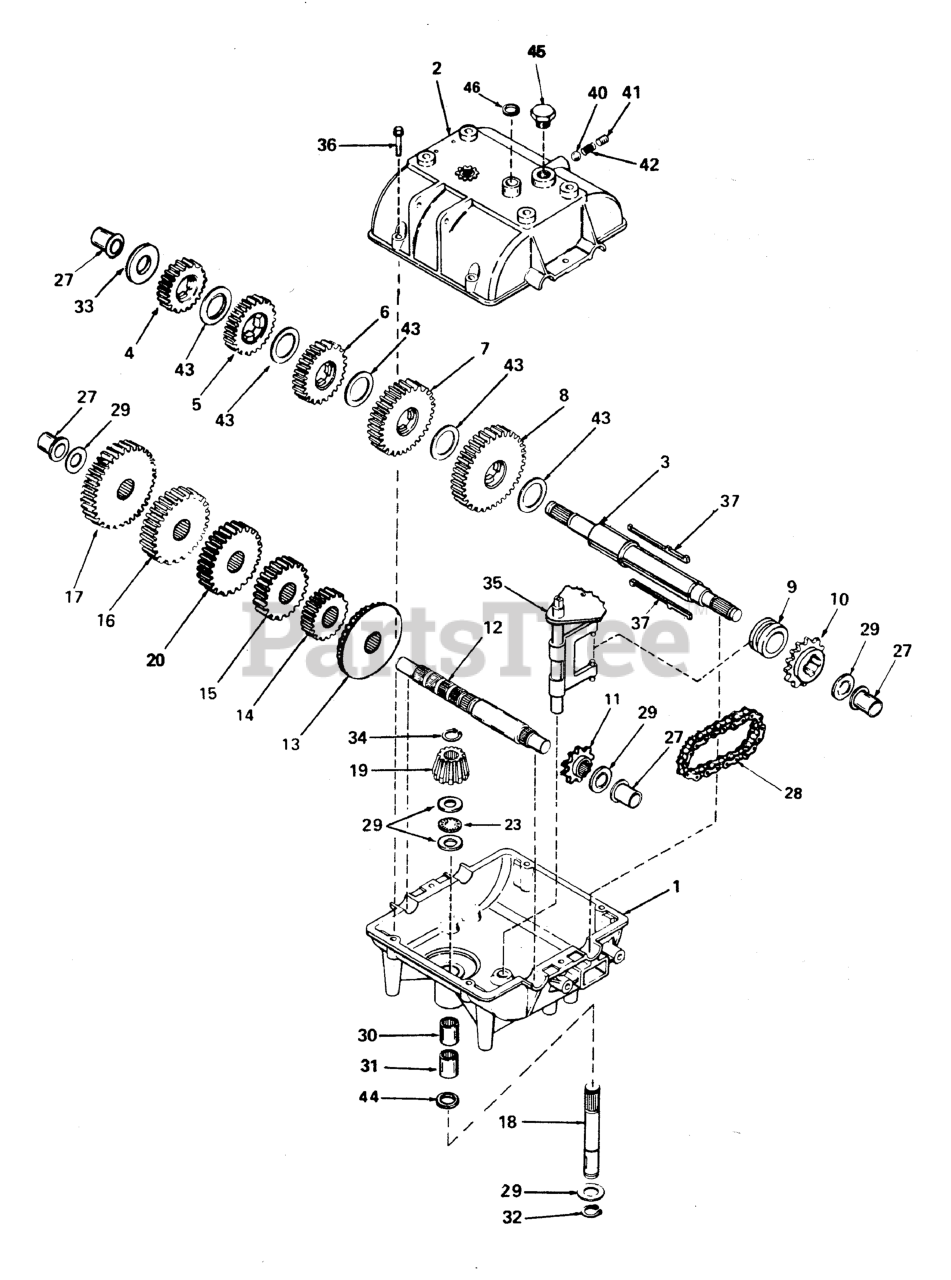

Gearbox Group Parts Diagram

  • Title

1

Ferris 5021544X1

Transmission Case

$

$

Currently unavailable

2

Ferris 5021544X2

Transmission Cover

$

$

Currently unavailable

3

Ferris 5021544X3

Output & Brake Shaft

$

$

Currently unavailable

4

Ferris 5021544X4

Spur Gear (27 Tooth)

$

$

Currently unavailable

5

Ferris 5021544X5

Spur Gear (30 Tooth)

$

$

Currently unavailable

6

Ferris 5021544X6

Spur Gear (32 Tooth)

$

$

Currently unavailable

7

Ferris 5021544X7

Spur Gear (35 Tooth)

$

$

Currently unavailable

8

Ferris 5021544X8

Spur Gear (37 Tooth)

$

$

Currently unavailable

9

Ferris 5020794X13

Shift Collar

$

$

Currently unavailable

10

Ferris 5020794X14

Sprocket (18 Tooth)

$

$

Currently unavailable

11

Ferris 5020794X15

Sprocket (9 Tooth)

$

$

Currently unavailable

12

Ferris 5021544X12

Countershaft

$

$

Currently unavailable

13

Ferris 5020794X12

Bevel Gear (42 Tooth)

$

$

Currently unavailable

14

Ferris 5020794X2A

Spur Gear (12 Tooth)

$

$

Currently unavailable

15

Ferris 5021544X15

Spur Gear (15 Tooth)

$

$

Currently unavailable

16

Ferris 5021544X16

Spur Gear (20 Tooth)

$

$

Currently unavailable

17

Ferris 5021544X17

Spur Gear (23 Tooth)

$

$

Currently unavailable

18

Ferris 5020794X49

Input Shaft

$

$

Currently unavailable

19

Ferris 5020794X17

Input Bevel Pinion

$

$

Currently unavailable

20

Ferris 5021544X20

Spur Gear (18 Tooth)

$

$

Currently unavailable

23

Ferris 5020794X23

Thrust Bearing

$16.99

$

Usually ships in 2-12 days

0

27

Ferris 5020794X26

Flanged Bushing

$

$

Currently unavailable

28

Ferris 5020794X28

Chain, Roller (#41, 24 Links)

$

$

Currently unavailable

29

Ferris 5020794X29

Thrust Washer

$3.99

$

Usually ships in 2-12 days

0

30

Ferris 5021544X30

Needle Bearing

$

$

Currently unavailable

31

Ferris 5021544X31

Needle Bearing

$

$

Currently unavailable

32

Ferris 5021544X32

Retaining Ring

$

$

Currently unavailable

33

Ferris 5020794X32

Thrust Washer

$

$

Currently unavailable

34

Ferris 5020794X25

Retaining Ring

$

$

Currently unavailable

35

Ferris 5021544X35

Shift Rod & Fork

$

$

Currently unavailable

36

Ferris 5021544X36

Screw, Flanged Hex Head, Threadforming, 1/4-20 x 1-1/4"

$

$

Currently unavailable

37

Ferris 5020794X22

Key

$

$

Currently unavailable

40

Ferris 5020794X31

Steel Ball, 5/16"

$

$

Currently unavailable

41

Ferris 5020794X33

Set Screw, 3/8-16 x 3/8"

$

$

Currently unavailable

42

Ferris 5020794X34

Spring

$

$

Currently unavailable

43

Ferris 5020794X36

Thrust Washer

$

$

Currently unavailable

44

Ferris 5021544X44

O-Ring

$

$

Currently unavailable

45

Ferris 5021544X45

Threaded Plug

$

$

Currently unavailable

46

Ferris 5021544X46

Square Cut Seal

$

$

Currently unavailable
