UltraBelt GD (BD36B) - Ferris UltraBelt GD Series 36" Walk-Behind Mower, 14hp Briggs & Stratton (SN: 0101 & Above) Handle Bar Group Parts Diagram

UltraBelt GD Series 36" Walk-Behind Mower, 14hp Briggs & Stratton

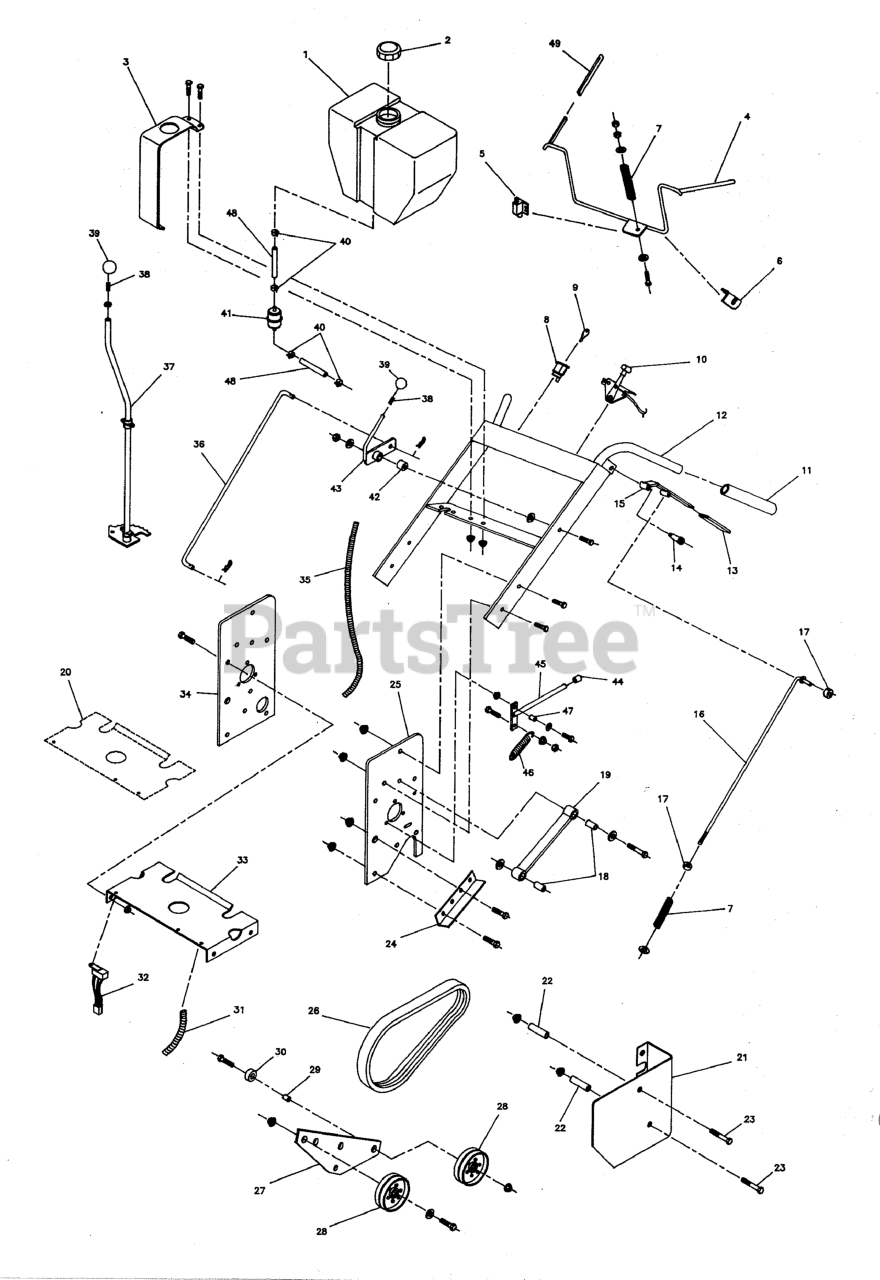

Handle Bar Group Parts Diagram

  • Title

1

Ferris 5021437

FUEL TANK, 4 Gallon

$160.99

$

Usually ships in 2-12 days

0

2

Ferris 5021468

CAP, Fuel Tank

$

$

Not available

3

Ferris 5043312

FUEL TANK STRAP

$

$

Currently unavailable

4

Ferris 5043313

Operator Presents Handle

$

$

Currently unavailable

5

Ferris 5021451

SWITCH, Plunger, NO
(Superseded to 5021451SM)

Note: (Blade Engagement, Parking Brake and Operator Presence)

$11.99

$

In Stock, Qty 16

0

6

Ferris 5043301

Operator Present Bracket Left

Note: (Shown)

$14.99

$

Usually ships in 2-12 days

0

6

Ferris 5043300

Operator Present Bracket Right

$

$

Currently unavailable

7

Ferris 5020637

SPRING, Compression
(Superseded to 5020637YP)

$5.99

$

Usually ships in 2-12 days

0

8

Ferris 5021275

SWITCH, Ignition

$49.99

$

Usually ships in 2-12 days

0

9

Ferris 5020878

Ignition Key
(Superseded to 1717163SM)

$8.99

$

In Stock, Qty 20+

0

10

Ferris 5020811

CABLE, Throttle, 38"
(Superseded to 5020811SM)

$49.99

$

Usually ships in 2-12 days

0

11

Ferris 5020837

GRIP, Foam
(Superseded to 5020837SM)

$12.99

$

Usually ships in 2-12 days

0

12

Ferris 5043274B

Handle Bar Weldment

$

$

Currently unavailable

13

Ferris 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, Qty 12

0

14

Ferris 5025220

SHOULDER BOLT, 1/2 x 1-1/2
(Superseded to 5025220SM)

$11.99

$

Usually ships in 2-12 days

0

15

Ferris 5041982B

BRAKE HANDLE

$

$

Currently unavailable

16

Ferris 5043297

Brake Rods

$

$

Currently unavailable

17

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

18

Ferris 5043295

BUSHING, Brass

$4.49

$

Usually ships in 2-12 days

0

19

Ferris 5043229

Clutch Arm

$

$

Currently unavailable

20

Ferris 5043443

Safety Walk

$

$

Currently unavailable

21

Ferris 5043261

Guard

Note: (Left Side Shown)

$

$

Currently unavailable

21

Ferris 5043262

Guard Right Side

$159.99

$

Usually ships in 2-12 days

0

22

Ferris 5043263

Belt Guide

$

$

Currently unavailable

23

Ferris 5025011X20

BOLT, 5/16-18 x 2-1/2
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

24

Ferris 5043241

Ramp Angle

$

$

Currently unavailable

25

Ferris 5043283B

Left Side Plate

$

$

Currently unavailable

26

Ferris 5021447

BELT, Double-A Section

$101.99

$

Usually ships in 2-12 days

0

27

Ferris 5043251

Clutch Lever

$

$

Currently unavailable

28

Ferris 5021442

PULLEY, Idler

$

$

Not available

29

Ferris 5041930

SPACER, .38 x .50 x .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

30

Ferris 5021454

Bearing
(Superseded to 5021454FS)

$17.99

$

Usually ships in 2-12 days

0

31

Ferris 5050833X6

WIRE LOOM, 6"
(Superseded to 5050833X6YP)

$3.49

$

Usually ships in 2-12 days

0

32

Ferris 5021452

Saftey Interlock

Note: (Kawasaki)

$68.99

$

Usually ships in 2-12 days

0

32

Ferris 5043430

Interlock

Note: (Kohler)

$128.99

$

Usually ships in 2-12 days

0

33

Ferris 5043328

Gas Tank Mount

$142.99

$

Usually ships in 2-12 days

0

34

Ferris 5043284

Right Side Plate

$

$

Currently unavailable

35

Ferris 5050833X34

WIRE LOOM, 34"

$3.49

$

Usually ships in 2-12 days

0

36

Ferris 5043299

Connecting Rod

$

$

Currently unavailable

37

Ferris 5043270

Speed Control Lever

$

$

Currently unavailable

38

Ferris 5025117X8

STUD, 5/16-18 x 1-1/4"

$

$

Currently unavailable

39

Ferris 5010551

Black Knob

$

$

Currently unavailable

40

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

41

Ferris 5021178X3

FUEL FILTER
(Superseded to 5021178X3FS)

$12.99

$

In Stock, Qty 14

0

42

Ferris 5043282

Nylon Bushing

$8.99

$

Usually ships in 2-12 days

0

43

Ferris 5043279

Blade Engagement Lever

$

$

Currently unavailable

44

Ferris 5021007

Plastic Boot

$

$

Currently unavailable

45

Ferris 5043238B

Spring Tensioner

Note: (Left Side Shown)

$

$

Currently unavailable

45

Ferris 5043237

Spring Tensioner Right Side

$

$

Currently unavailable

46

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

In Stock, Qty 11

0

47

Ferris 5041752

SPACER, .26 X .38 X .50

$4.99

$

Usually ships in 2-12 days

0

48

Ferris 5043330

4" Long Fuel Line

$

$

Currently unavailable

49

Ferris 5021490

GRIP, Vinyl
(Superseded to 5021490SM)

$4.49

$

In Stock, Qty 8

0
