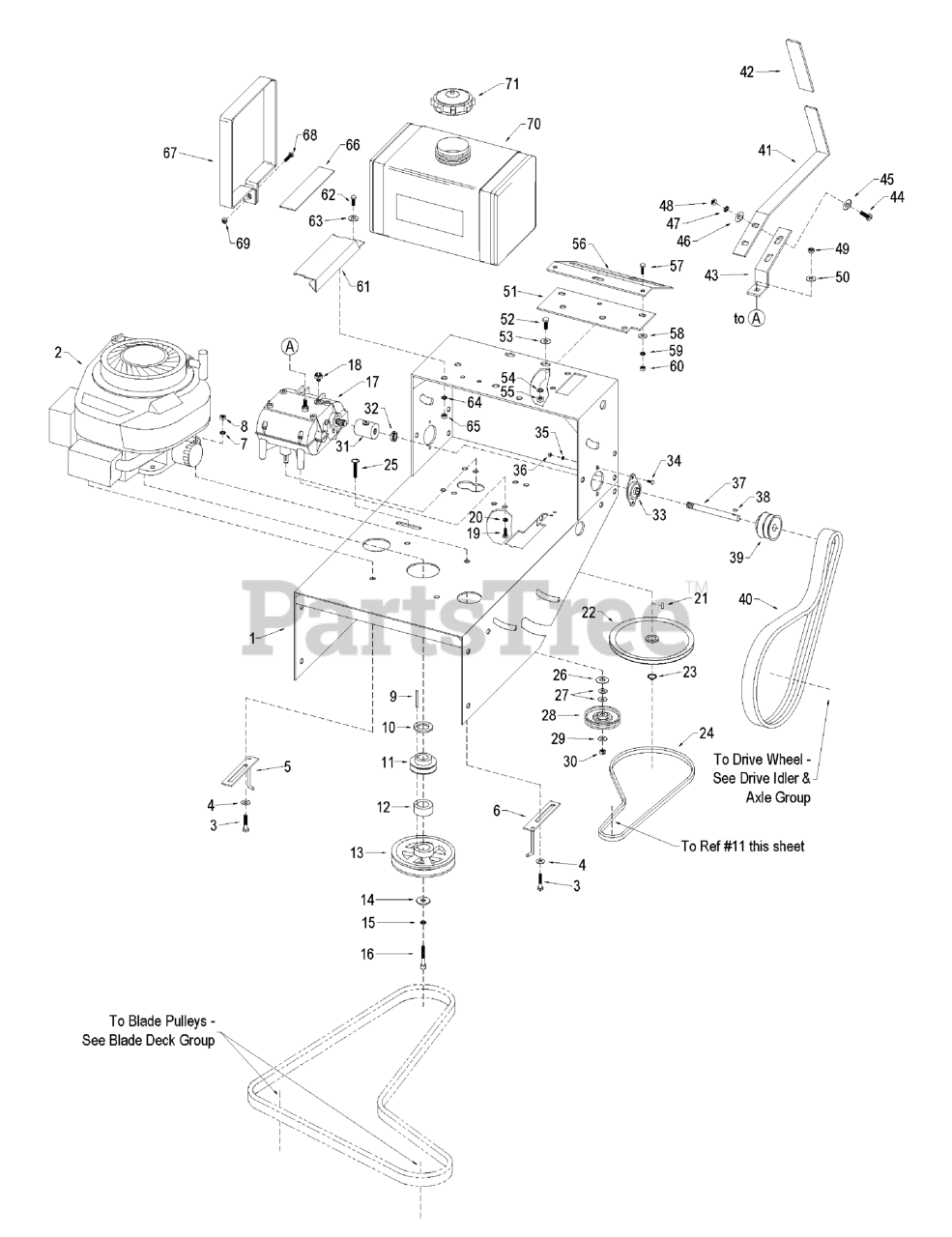

UltraBelt GD (5901094) - Ferris UltraBelt GD Series 32" Walk-Behind Mower, 13.5hp Briggs & Stratton Engine & PTO Group Parts Diagram

UltraBelt GD Series 32" Walk-Behind Mower, 13.5hp Briggs & Stratton

Engine & PTO Group Parts Diagram

  • Title

1

Ferris 5048099B

Engine deck

$

$

Currently unavailable

2

ENGINE, 13.5HP Briggs & Stratton Intek

$

$

Not available

2

ENGINE, 12.5HP Kawasaki

$

$

Not available

3

Ferris 5025011X12

BOLT, 5/16-18 x 1-1/2
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

3

Ferris 5025237X25

BOLT, M8-1.25 X 25MM GR 8.8
(Superseded to 5025237X25YP)

Note: (Kawasaki only)

$3.99

$

Usually ships in 2-12 days

0

---

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

Note: (Kawasaki only)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Ferris 5048020

Belt guide - engine right front

$

$

Currently unavailable

6

Ferris 5048021

Belt guide - engine left rear

$

$

Currently unavailable

7

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

Note: (Briggs & Stratton Intek only)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5050407X4

KEY, 1/4 SQ. X 2-3/4

$

$

Currently unavailable

10

Ferris 5048022

1/4" spacer

$

$

Currently unavailable

11

Ferris 5048023

Engine-to-trans pulley

$

$

Currently unavailable

12

Ferris 5048024

3/4" spacer

$17.99

$

Usually ships in 2-12 days

0

13

Ferris 5048025

Blade drive pulley

$

$

Currently unavailable

14

Ferris 5048026

7/16" heavy duty washer

$8.99

$

Usually ships in 2-12 days

0

15

Ferris 5025172

WASHER, 7/16" Lock

$2.49

$

Usually ships in 2-12 days

0

16

Ferris 5025363

BOLT, Socket Head, 7/16-20 x 2

Note: (Briggs & Stratton Intek only)

$

$

Currently unavailable

16

Ferris 5025358

BOLT, M10 x 30MM
(Superseded to 5025358FS)

Note: (Kawasaki only)

$2.49

$

Usually ships in 2-12 days

0

17

Ferris 5022246

5 SPEED GEARBOX

$912.99

$

Usually ships in 2-12 days

0

18

Ferris 5021843

SWITCH, NEUTRAL SAFETY

$99.99

$

Usually ships in 2-12 days

0

19

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

20

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5020051

KEY, #9 Woodruff

$

$

Currently unavailable

22

Ferris 5048027

Transmission pulley

$

$

Currently unavailable

---

Ferris 5025061X2

SET SCREW, 5/16-18 X 1/4"

$

$

Not available

23

Ferris 5025371

5/8" snap ring

$

$

Currently unavailable

24

Ferris 5048028

Transmission belt

$

$

Currently unavailable

25

Ferris 5048029

Trans idler bolt

$8.49

$

Usually ships in 2-12 days

0

26

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

28

Ferris 5048030

Trans idler pulley

$

$

Currently unavailable

29

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

30

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

31

Ferris 5022248

COUPLER

$40.99

$

Usually ships in 2-12 days

0

---

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

32

Ferris 5020441

COLLAR, 5/8" Split
(Superseded to 5020441SM)

$14.99

$

In Stock, Qty 20+

0

33

Ferris 5021846

FLANGE BEARING

$14.99

$

Usually ships in 2-12 days

0

34

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

35

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

In Stock, only 4 left!

0

36

Ferris 5025030

NUT, 1/4-20 Hex
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

37

Ferris 5022247

SHAFT

$45.99

$

Usually ships in 2-12 days

0

38

Ferris 5022058

KEY, #9 Hi Pro Woodruff

$3.99

$

Usually ships in 2-12 days

0

39

Ferris 5021445

PULLEY, Double-A Section

$109.99

$

Usually ships in 2-12 days

0

---

Ferris 5025061X2

SET SCREW, 5/16-18 X 1/4"

$

$

Not available

40

Ferris 5021447

BELT, Double-A Section

$101.99

$

Usually ships in 2-12 days

0

41

Ferris 5044640B

GEAR SELECTOR HANDLE

$30.99

$

Usually ships in 2-12 days

0

42

Ferris 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, Qty 12

0

43

Ferris 5044638B

LEVER, Gear Selector

$22.99

$

Usually ships in 2-12 days

0

44

Ferris 5025011X10

BOLT, 5/16-18 x 1-1/4
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

45

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

46

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

47

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

48

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

49

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

50

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

51

Ferris 5048031

Shift indicator mounting plate

$

$

Currently unavailable

52

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

53

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

54

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

55

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

56

Ferris 5044641B

GUIDE, Gear Selector

$30.99

$

Usually ships in 2-12 days

0

---

Ferris 5048032

Shift decal

$

$

Currently unavailable

57

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

58

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

59

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

In Stock, only 4 left!

0

60

Ferris 5025030

NUT, 1/4-20 Hex
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

61

Ferris 5048033

Fuel tank mount - right

$

$

Currently unavailable

---

Ferris 5048034

Fuel tank mount - left

$

$

Currently unavailable

62

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

63

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

64

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

65

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

66

Ferris 5021877

RUBBER PAD
(Superseded to 5021877SM)

$7.49

$

Usually ships in 2-12 days

0

67

Ferris 5044694B

FUEL TANK STRAP

$31.99

$

Usually ships in 2-12 days

0

68

Ferris 5025010X12

BOLT, 1/4-20 X 1-1/2
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

69

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

70

Ferris 5410708

TANK, FUEL, PLASTIC, 5 GALLON W/ FUEL LINE

$240.99

$

Usually ships in 2-12 days

0

71

Ferris 5101651

CAP, GASOLINE, VENTED
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

---

Ferris 5050831X20

1/4" Fuel Line, 20" Long
(Superseded to 5050831X20YP)

Note: (Briggs)

$7.99

$

Usually ships in 2-12 days

0

---

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

---

Ferris 5050831X10

1/4" Fuel Line, 10" Long

Note: (Kawasaki)

$

$

Currently unavailable

---

Ferris 5021178X3

FUEL FILTER
(Superseded to 5021178X3FS)

$12.99

$

In Stock, Qty 15

0

---

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

---

Ferris 5048035

Decal, Shut Off Fuel When Not In Use

Note: (applied to upper engine deck)

$

$

Currently unavailable
