UltraBelt GD (5901015) - Ferris UltraBelt GD Series 52" Walk-Behind Mower, 15hp Kawasaki Electrical Schematic - Kawasaki V-Twin (S/N: 3079 - 5408) Parts Diagram

UltraBelt GD Series 52" Walk-Behind Mower, 15hp Kawasaki

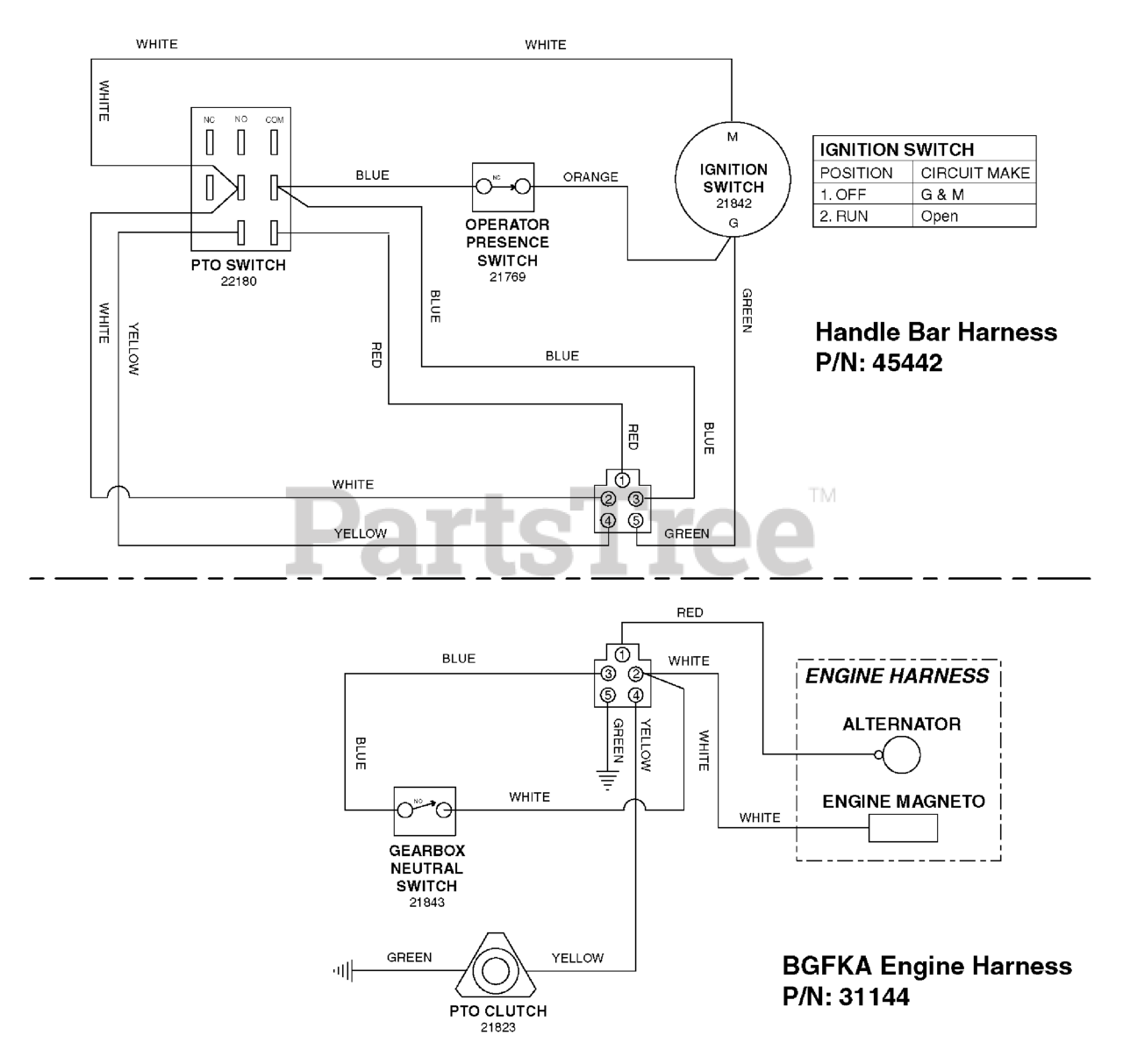

Electrical Schematic - Kawasaki V-Twin (S/N: 3079 - 5408) Parts Diagram
