Ultra Vac - Exmark Ultra Vac QDS Bagger for Mower (SN: 370000 - 439999) (2003) Completing Kit Assembly 60" PN 103-2976 Parts Diagram

Ultra Vac QDS Bagger for Mower

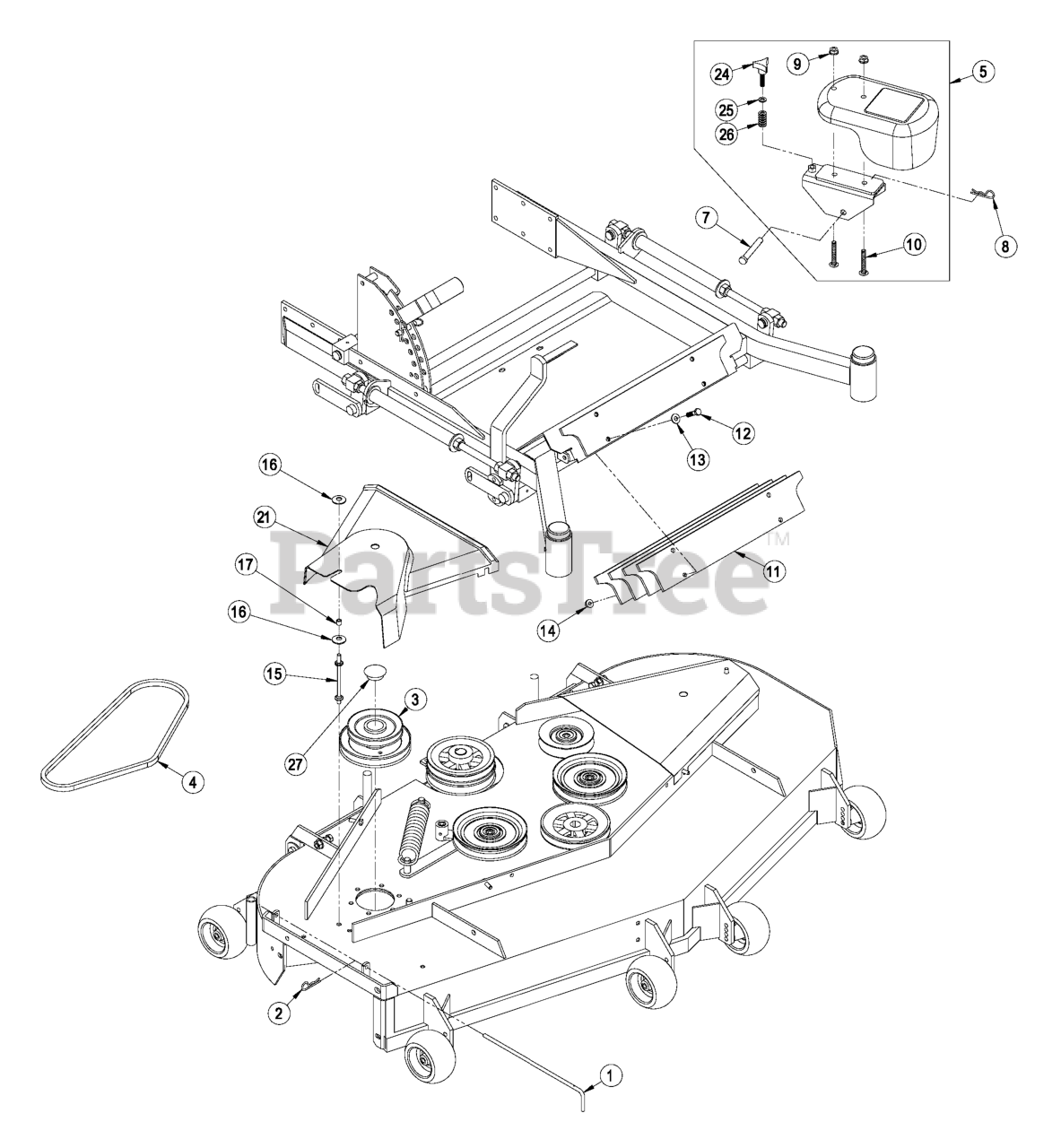

Completing Kit Assembly 60" PN 103-2976 Parts Diagram

  • Title

1

Exmark 103-0453

PIN, CHUTE PIVOT

$8.49

$

Usually ships in 3-6 days

0

2

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

3

Exmark 103-2792

JACKSHAFT, LZUV60

$239.99

$

Usually ships in 3-6 days

0

4

Exmark 103-0866

BELT, BLOWER DRIVE 60
(Superseded to 103-0866-SL)

$35.99

$

In Stock, Qty 5

0

5

Exmark 103-0902

ASM, WEIGHT 2.0" 43 POUND

Note: Includes items 6, 9, 10, weight and decal.

$480.99

$

Usually ships in 3-6 days

0

6

Exmark 103-2180-01

WLD, BRACKET 2.0 ARM

$85.99

$

Usually ships in 3-6 days

0

7

Exmark 283-69

PIN-CLEVIS

$10.99

$

In Stock, only 3 left!

0

8

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

9

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Exmark 103-2189

BOLT, SQUARE HEAD YZ

$5.49

$

Usually ships in 3-6 days

0

11

Exmark 103-1425-01

PLATE, WEIGHT

$42.99

$

Usually ships in 3-6 days

0

12

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Exmark 103-1028

STUD,BELT SHIELD 4 INCH

$24.99

$

Usually ships in 3-6 days

0

16

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

17

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

21

Exmark 103-0735

COVER, BELT 60

$221.99

$

Usually ships in 3-6 days

0

22

Exmark 1-543610

WASHER-CLUTCH

Note: Items Not Shown. Used for mounting the bagger mount weldment to the rear of the units with Serial Numbers less than 190,000

$6.49

$

In Stock, Qty 6

0

23

Exmark 323-49

BOLT-TAP

Note: Items Not Shown. Used for mounting the bagger mount weldment to the rear of the units with Serial Numbers less than 190,000

$5.49

$

Usually ships in 3-6 days

0

24

Exmark 103-2187

KNOB

$6.49

$

In Stock, Qty 12

0

25

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Exmark 103-2188

SPRING

$6.49

$

In Stock, Qty 12

0

27

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$11.99

$

Usually ships in 3-6 days

0

Exmark 103-2976

Completing Kit Assembly 60" (Lazer Xp)

$

$

Currently unavailable
