Ultra Vac - Exmark Ultra Vac QDS Bagger for LHP Mower (SN: 440000 - 509999) (2004) Lower Hopper Assembly Parts Diagram

Ultra Vac QDS Bagger for LHP Mower

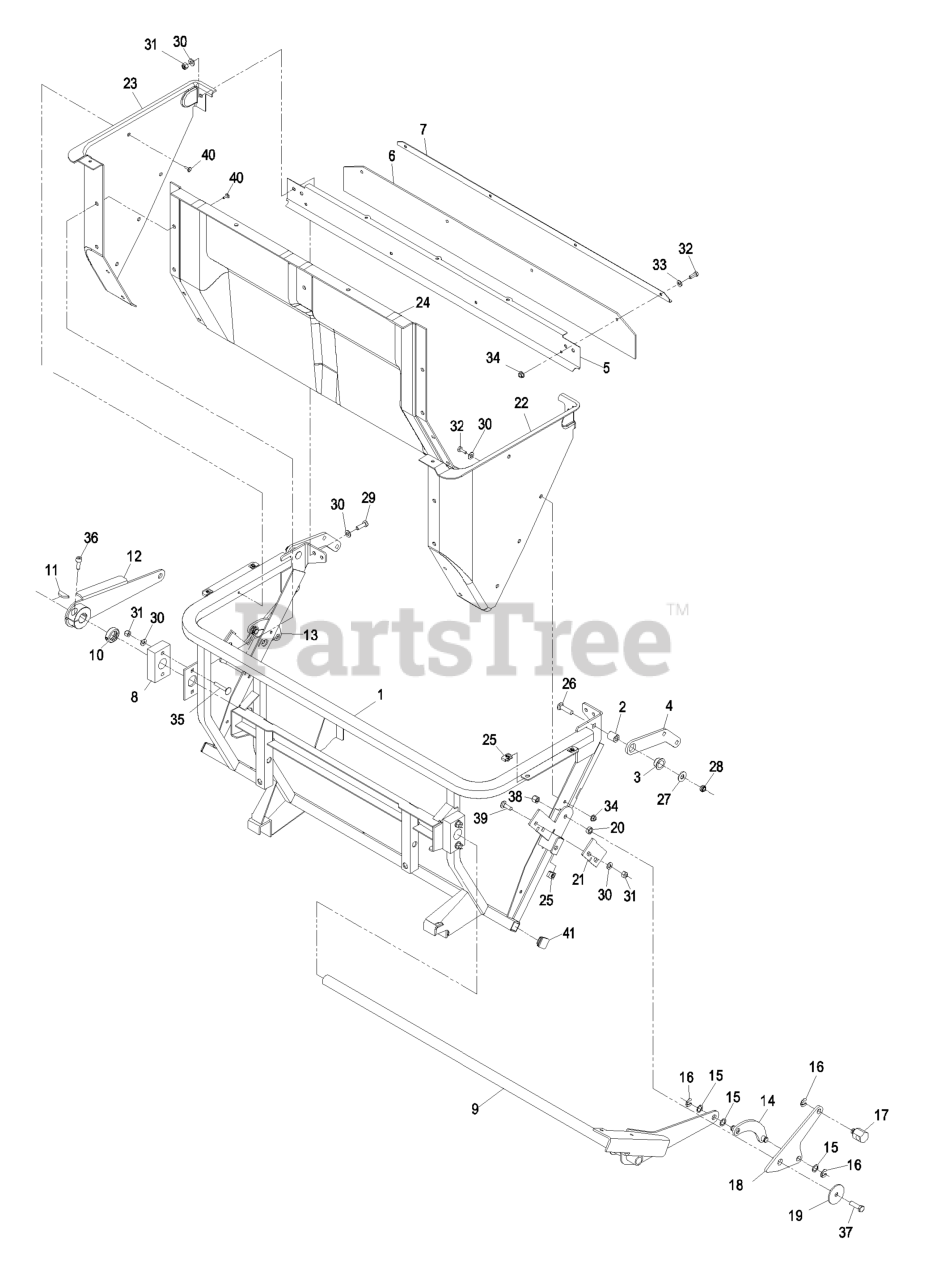

Lower Hopper Assembly Parts Diagram

  • Title

1

Exmark 103-4419-03

WLD,QDS FRAME

$805.99

$

Usually ships in 3-6 days

0

2

Exmark 103-6294

PIN-PIVOT, HINGE

$26.99

$

Usually ships in 3-6 days

0

3

Exmark 103-6295

BEARING

$15.99

$

Usually ships in 3-6 days

0

4

Exmark 103-4820-03

PLATE-HINGE

$60.99

$

Usually ships in 3-6 days

0

5

Exmark 103-4412-03

PLATE-REAR

$64.99

$

Usually ships in 3-6 days

0

6

Exmark 103-4832

SEAL-DOOR

$23.99

$

Usually ships in 3-6 days

0

7

Exmark 103-4834-03

STRAP-HOLD DOWN

$29.99

$

Usually ships in 3-6 days

0

8

Exmark 103-4402

BEARING

$45.99

$

Usually ships in 3-6 days

0

9

Exmark 103-5114-03

BELLCRANK

$232.99

$

Usually ships in 3-6 days

0

10

Exmark 103-4433

SHAFT-COLLAR

$6.99

$

Usually ships in 3-6 days

0

11

Exmark 103-6296

KEY, HYPRO

$19.99

$

Usually ships in 3-6 days

0

12

Exmark 103-4802-03

Wld, Link Rh

$

$

Currently unavailable

13

Exmark 103-5111

LINK-RH

$62.99

$

Usually ships in 3-6 days

0

14

Exmark 103-5112

LINK-LH

$62.99

$

Usually ships in 3-6 days

0

15

Exmark 94-8196

WASHER-NYLON

$6.99

$

In Stock, only 3 left!

0

16

Exmark 103-4409

E-Ring

$

$

Currently unavailable

17

Exmark 103-4848

TRUNNION-LINK

$39.99

$

Usually ships in 3-6 days

0

18

Exmark 103-4424

ARM-LINKAGE, DOOR

$34.99

$

Usually ships in 3-6 days

0

19

Exmark 103-4431

WASHER

$5.49

$

Usually ships in 3-6 days

0

20

Exmark 103-4415

BEARING-LINKAGE, PIVOT

$26.99

$

Usually ships in 3-6 days

0

21

Exmark 103-4408-03

STOP-LINKAGE

$19.99

$

Usually ships in 3-6 days

0

22

Exmark 103-4436

103-7828
(Superseded to 103-7828)

$185.99

$

Usually ships in 3-6 days

0

23

Exmark 103-5107

103-7829
(Superseded to 103-7829)

$185.99

$

Usually ships in 3-6 days

0

24

Exmark 103-5102

PANEL-BAGGER

$241.99

$

Usually ships in 3-6 days

0

25

Exmark 10706-9

Nut, Retainer 1/4-20

$2.99

$

In Stock, Qty 20+

0

26

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

27

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

28

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

29

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

33

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

35

Exmark 3230-5

BOLT-CAR

$0.99

$

In Stock, only 3 left!

0

36

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

37

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

38

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

39

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

40

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

41

Exmark 103-3202

CAP

$1.49

$

In Stock, only 1 left!

0
