Ultra Vac - Exmark Ultra Vac QDS Bagger for LHP Mower (SN: 440000 - 509999) (2004) Blower Assembly (Part 1) Parts Diagram

Ultra Vac QDS Bagger for LHP Mower

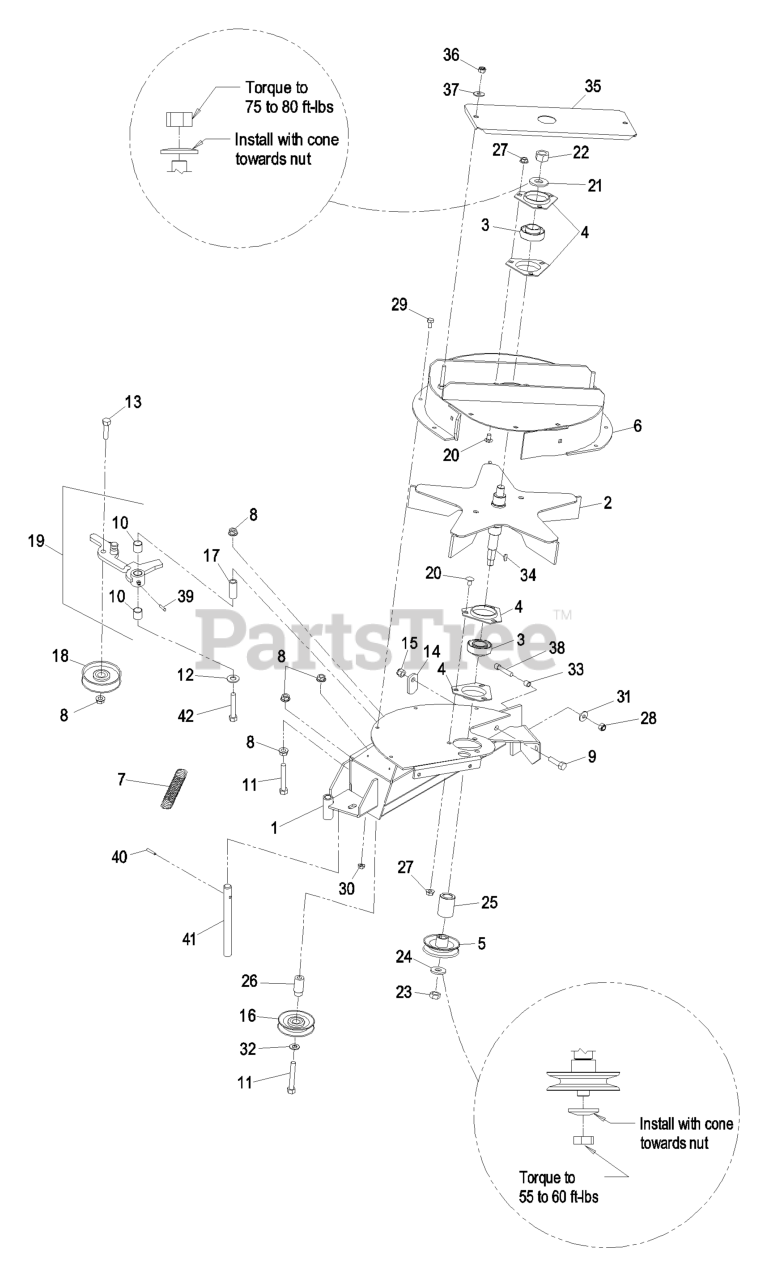

Blower Assembly (Part 1) Parts Diagram

  • Title

1

Exmark 103-2874-03

WLD, BLOWER MOUNT

Note: Includes items 40 and 41.

$868.99

$

Usually ships in 3-6 days

0

Exmark 103-2875-03

109-1119-03
(Superseded to 109-1119-03)

Note: Includes items 40 and 41.

$748.99

$

Usually ships in 3-6 days

0

2

Exmark 103-3815

IMPELLER

$310.99

$

In Stock, Qty 5

0

3

Exmark 1-653346

BEARING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) on bore of sheave and bearings.

$71.99

$

In Stock, Qty 9

0

4

Exmark 1-513013

HOUSING-FLANGE

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 103-1047

SHEAVE-BLOWER

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) on bore of sheave and bearings.

$75.99

$

In Stock, Qty 6

0

6

Exmark 103-3589

ASM,UPPER HOUSING

$674.99

$

Usually ships in 3-6 days

0

7

Exmark 1-653331

SPRING-IDLER

$12.99

$

In Stock, only 3 left!

0

8

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Exmark 1-653600

BUSHING

$20.99

$

In Stock, only 1 left!

0

11

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 14

0

12

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Exmark 1-353054

LATCH-CATCHER, GRASS

$7.99

$

In Stock, only 3 left!

0

15

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

16

Exmark 1-653322

IDLER-INSIDE

$64.99

$

In Stock, only 2 left!

0

17

Exmark 103-0130

BUSHING-PIVOT, IDLER

$18.99

$

In Stock, Qty 6

0

18

Exmark 103-1103

IDLER-FLAT

$68.99

$

In Stock, only 1 left!

0

19

Exmark 103-2876

ASM, IDLER ARM - SERVICE

$164.99

$

In Stock, only 3 left!

0

20

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 7

0

21

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

22

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

23

Exmark 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

24

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

25

Exmark 1-653365

SPACER

$27.99

$

Usually ships in 3-6 days

0

26

Exmark 1-653366

HUB

$25.99

$

In Stock, only 1 left!

0

27

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

29

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

31

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

32

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Exmark 103-0126

BUSHING, LOCATOR

$6.99

$

In Stock, Qty 11

0

34

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

35

Exmark 103-3585

ASM, BEARING COVER

$119.99

$

In Stock, only 1 left!

0

36

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

39

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

40

Exmark 1-806323

PIN-ROLL

$1.49

$

In Stock, only 3 left!

0

41

Exmark 1-353050

SHAFT-CATCHER, GRASS

$17.99

$

In Stock, only 2 left!

0

42

Exmark 3274-107

SCREW-HSBH

$5.49

$

In Stock, only 4 left!

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0

Exmark 103-0583

KIT,ACCY TUBE REPLACEMENT

Note: Available to add or repair the welded-on accessory mounting tube on all 44"-72" decks.

$

$

Not available

Exmark 103-5217

PACK,LUBE MOBIL HTS GREAS

$9.49

$

In Stock, only 1 left!

0

Exmark 1-652345-03

103-3589
(Superseded to 103-3589)

$674.99

$

Usually ships in 3-6 days

0

Exmark 103-3586-03

Cover, Bearing With Decal

$

$

Currently unavailable
