Ultra Vac - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 510000 - 599999) (2005) Hitch And Handle Assembly Parts Diagram

Ultra Vac QDS Bagger for Lazer Z Mower

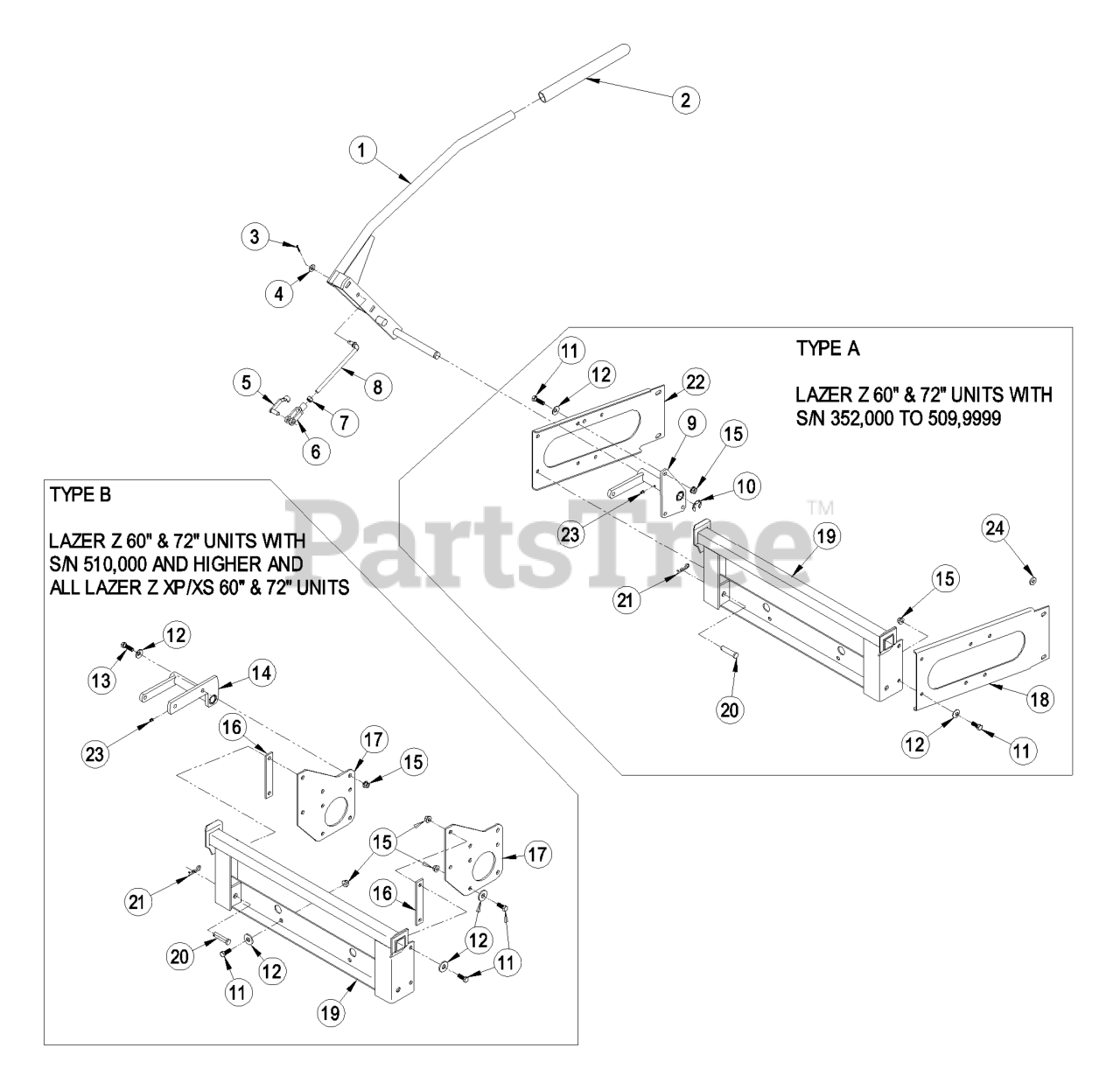

Hitch And Handle Assembly Parts Diagram

  • Title

1

Exmark 103-4745

HANDLE AND GRIP ASM

$264.99

$

In Stock, only 1 left!

0

2

Exmark 103-3005

GRIP-HANDLE

$17.99

$

Usually ships in 3-6 days

0

3

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

4

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

5

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 11

0

6

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 5

0

7

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

8

Exmark 103-2413

LINK-HANDLE

$13.99

$

Usually ships in 3-6 days

0

9

Exmark 103-5615-03

WLD, HANDLE MOUNT

$129.99

$

Usually ships in 3-6 days

0

10

Exmark 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

11

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

13

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Exmark 103-5636-03

WLD, HANDLE MOUNT - XP

$147.99

$

Usually ships in 3-6 days

0

15

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

16

Exmark 103-1155-03

SPACER

$9.49

$

Usually ships in 3-6 days

0

17

Exmark 103-2975-03

PLATE-MOUNT, BAGGER

$60.99

$

Usually ships in 3-6 days

0

18

Exmark 103-0399-03

BRACKET-FRAME, RH

$119.99

$

Usually ships in 3-6 days

0

19

Exmark 103-0429-03

MOUNT-BAGGER

$522.99

$

Usually ships in 3-6 days

0

20

Exmark 283-69

PIN-CLEVIS

$10.99

$

In Stock, only 3 left!

0

21

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

22

Exmark 103-5612-03

BRACKET-FRAME, LH

$99.99

$

Usually ships in 3-6 days

0

23

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

24

Exmark 71-9310

SPACER

$2.99

$

Usually ships in 3-6 days

0
