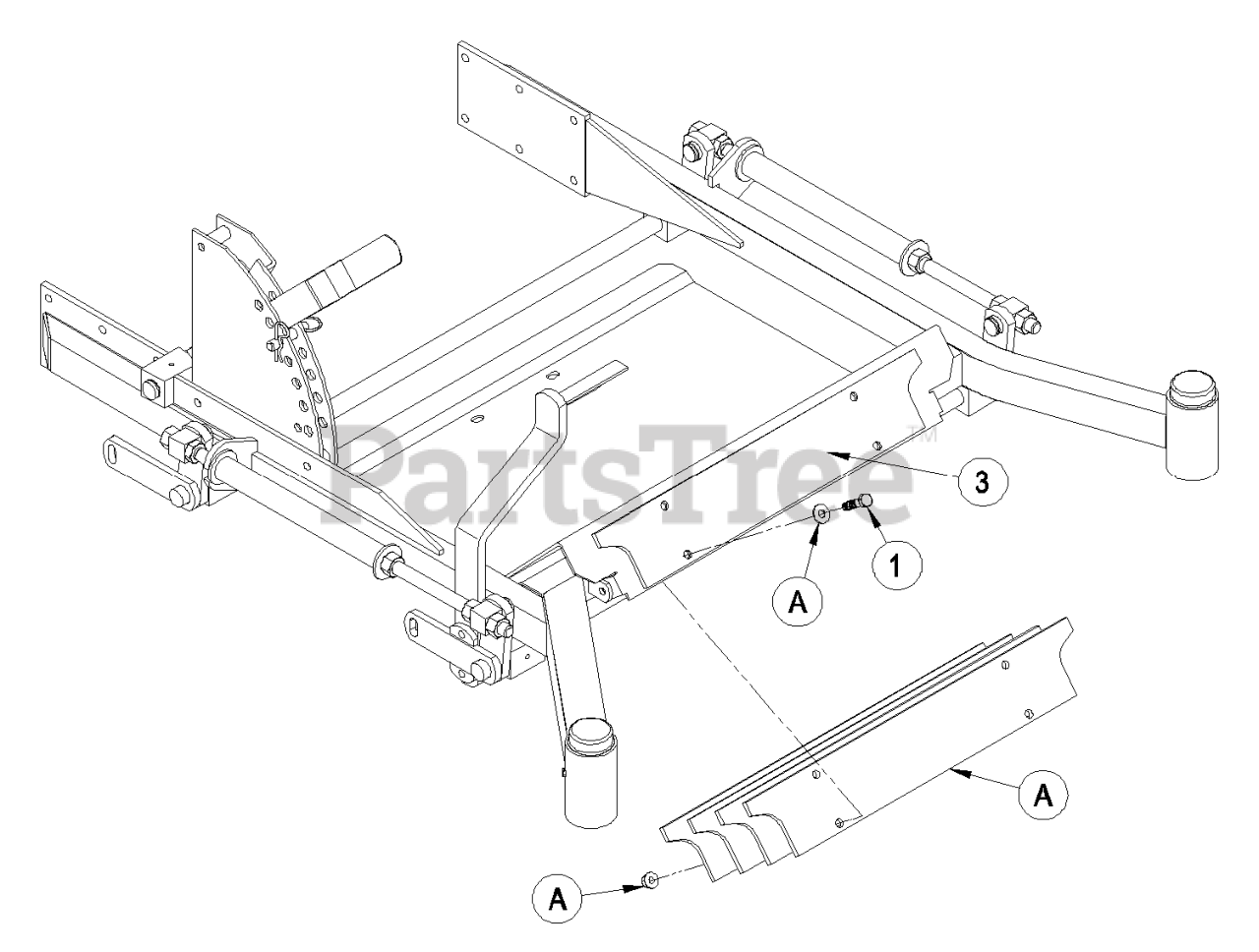

Ultra Vac - Exmark Ultra Vac QDS Bagger for Conversion Lazer Z Mower (SN: 440000 - 509999) (2004) Completing Kit Assembly Parts Diagram

Ultra Vac QDS Bagger for Conversion Lazer Z Mower

Completing Kit Assembly Parts Diagram

  • Title

1

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

A

Exmark 3256-23

WASHER-PLAIN

Note: A Items labeled with an "A" are existing components shown for reference.

$2.49

$

In Stock, Qty 20+

0

3

Exmark 103-1425-01

PLATE, WEIGHT

Note: One plate included with the conversion kit. Four (4) are existing plates which came with the existing Ultra Vac

$42.99

$

Usually ships in 3-6 days

0

A

Exmark 32128-20

NUT-HF

Note: A Items labeled with an "A" are existing components shown for reference.

$1.49

$

In Stock, Qty 20+

0

Exmark 103-2973

Completing Kit Assembly, 60" Lazer

$

$

Currently unavailable

Exmark 103-2974

Completing Kit Assembly, 72" Lazer

$

$

Currently unavailable

Exmark 103-2976

Completing Kit Assembly, 60" Lazer Xp

$

$

Currently unavailable

Exmark 103-2977

Completing Kit Assembly, 72" Lazer Xp

$

$

Currently unavailable
