Ultra Vac - Exmark Ultra Vac Bagger (SN: 320000 - 369999) (2002) Completing Kit Assembly 60" Lazer Parts Diagram

Ultra Vac Bagger

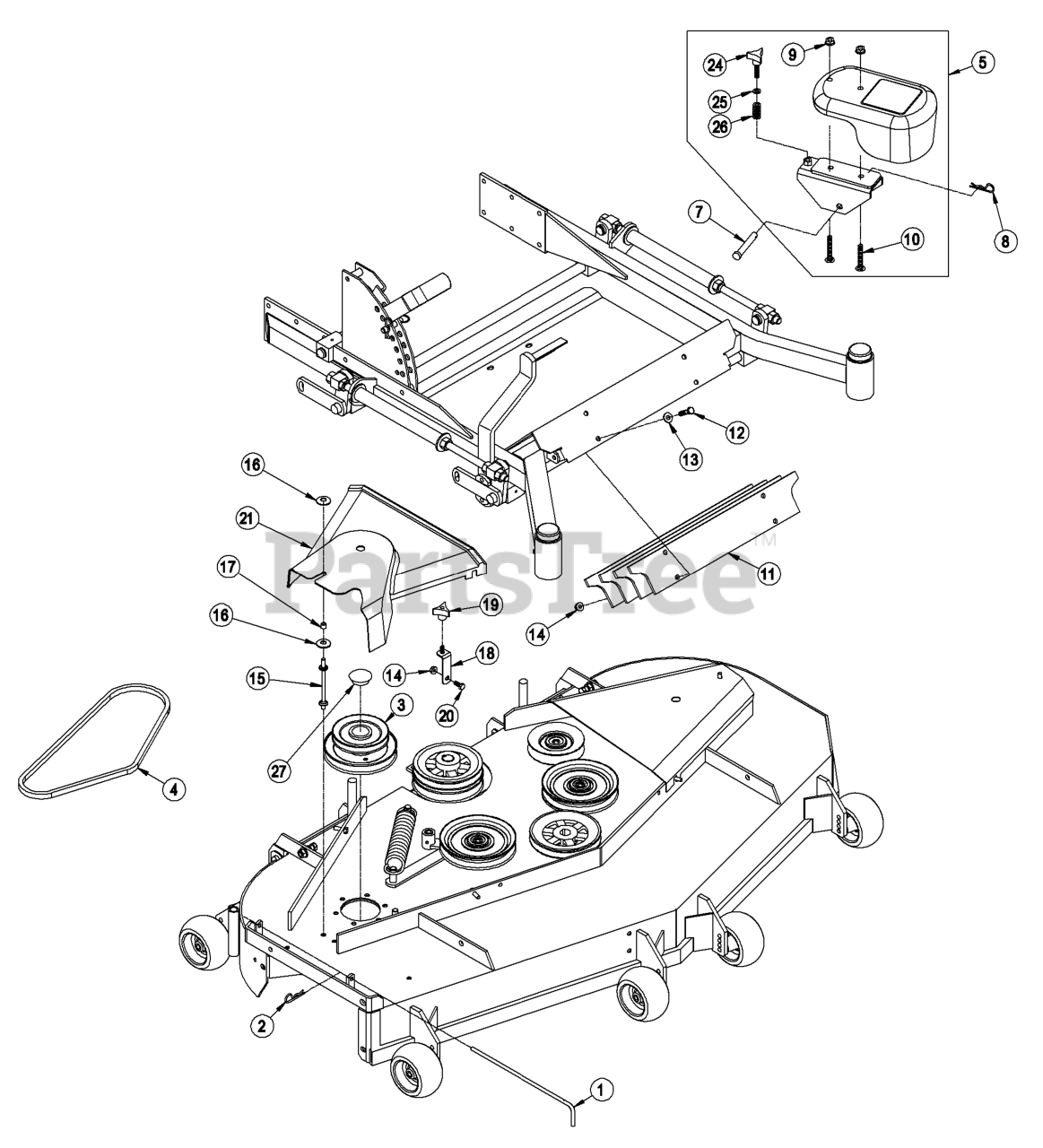

Completing Kit Assembly 60" Lazer Parts Diagram

  • Title

1

Exmark 103-0453

PIN, CHUTE PIVOT

$8.49

$

Usually ships in 3-6 days

0

2

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

3

Exmark 103-0576

JACKSHAFT, LZUV 60

$

$

Not available

4

Exmark 103-0866

BELT, BLOWER DRIVE 60
(Superseded to 103-0866-SL)

$35.99

$

In Stock, Qty 9

0

5

Exmark 103-0899

ASM, WEIGHT 1.5" 70 POUND

Note: Includes items 6, 9, 10 weight and decal.

$

$

Not available

5

Exmark 103-0900

ASM, WEIGHT 2.0" 70 POUND

Note: Includes items 6, 9, 10 weight and decal.

$612.99

$

Usually ships in 3-6 days

0

6

Exmark 103-2180-01

WLD, BRACKET 2.0 ARM

$94.99

$

Usually ships in 3-6 days

0

6

Exmark 103-2181-01

WLD, BRACKET 1.5 ARM

$

$

Not available

7

Exmark 283-69

PIN-CLEVIS

$10.99

$

In Stock, only 3 left!

0

8

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

9

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Exmark 103-2189

BOLT, SQUARE HEAD YZ

$5.99

$

Usually ships in 3-6 days

0

11

Exmark 103-1425-03

103-1425-01
(Superseded to 103-1425-01)

$47.99

$

Usually ships in 3-6 days

0

12

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Exmark 103-1028

STUD,BELT SHIELD 4 INCH

$25.99

$

Usually ships in 3-6 days

0

16

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

17

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

18

Support, Belt Cover

Note: NOT USED ON THIS MODEL

$

$

Not available

19

Knob

Note: NOT USED ON THIS MODEL

$

$

Not available

20

Screw, Hh 5/16-18x.75

Note: NOT USED ON THIS MODEL

$

$

Not available

21

Exmark 103-0735

COVER, BELT 60

$245.99

$

Usually ships in 3-6 days

0

22

Exmark 1-543610

WASHER-CLUTCH

Note: Items Not Shown. Used for mounting the bagger mount weldment to the rear of the units with S/N's less than 190,000

$6.49

$

In Stock, Qty 16

0

23

Exmark 323-49

BOLT-TAP

Note: Items Not Shown. Used for mounting the bagger mount weldment to the rear of the units with S/N's less than 190,000

$5.99

$

Usually ships in 3-6 days

0

24

Exmark 103-2187

KNOB

$6.99

$

In Stock, Qty 12

0

25

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Exmark 103-2188

SPRING

$6.99

$

In Stock, Qty 12

0

27

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$12.99

$

Usually ships in 3-6 days

0

Exmark 103-0466

Completing Kit Assembly

$

$

Currently unavailable
