Ultra Vac - Exmark Ultra Vac Bagger (SN: 320000 - 369999) (2002) Blower Assembly (Lazer Z HP 44, 48, 52 & Lazer Z 52) Parts Diagram

Ultra Vac Bagger

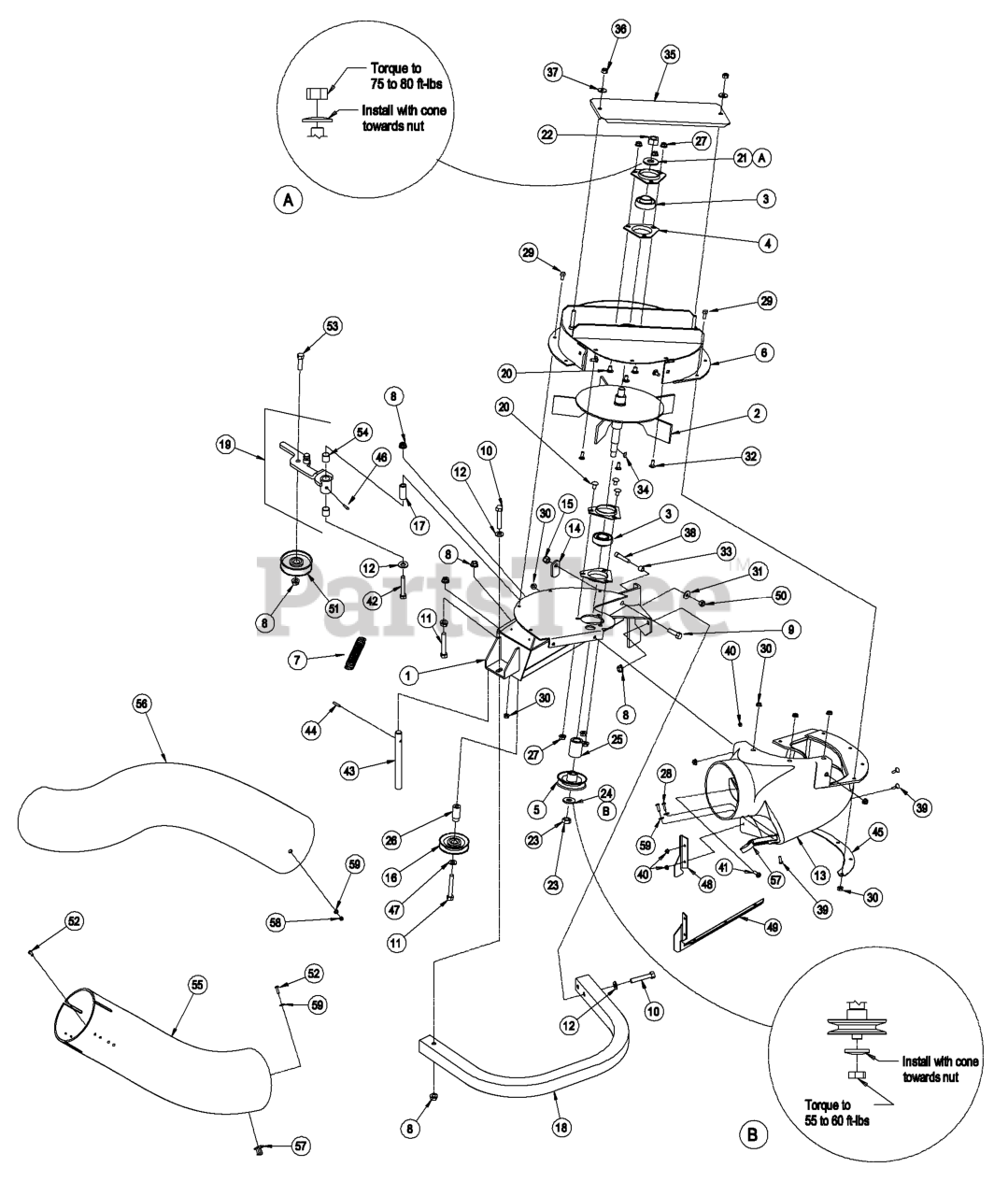

Blower Assembly (Lazer Z HP 44, 48, 52 & Lazer Z 52) Parts Diagram

  • Title

1

Exmark 1-652340-03

BLOWER MOUNT WLDMT

Note: Includes items 43 and 44

$

$

Not available

Exmark 1-652444-03

WLD, BLOWER MOUNT

Note: Includes items 43 and 44

$626.99

$

Usually ships in 3-6 days

0

2

Exmark 1-652351

103-3815
(Superseded to 103-3815)

$310.99

$

In Stock, Qty 5

0

3

Exmark 1-653346

BEARING

$71.99

$

In Stock, Qty 9

0

4

Exmark 1-513013

HOUSING-FLANGE

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 103-1047

SHEAVE-BLOWER

Note: Use grease on bore of sheave.

$75.99

$

In Stock, Qty 6

0

6

Exmark 1-654459

103-3598
(Superseded to 103-3598)

$

$

Not available

7

Exmark 1-653331

SPRING-IDLER

$12.99

$

In Stock, only 3 left!

0

8

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 14

0

12

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Exmark 1-653356

103-4234
(Superseded to 103-4234)

$534.99

$

Usually ships in 3-6 days

0

14

Exmark 1-353054

LATCH-CATCHER, GRASS

$7.99

$

In Stock, only 3 left!

0

15

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

16

Exmark 1-653322

IDLER-INSIDE

$64.99

$

In Stock, only 2 left!

0

17

Exmark 103-0130

BUSHING-PIVOT, IDLER

$18.99

$

In Stock, Qty 6

0

18

Exmark 1-653352-01

BUMPER

$

$

Not available

19

Exmark 1-654559

103-2876
(Superseded to 103-2876)

$164.99

$

In Stock, only 3 left!

0

20

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 7

0

21

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

22

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

23

Exmark 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

24

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

25

Exmark 1-653365

SPACER

$27.99

$

Usually ships in 3-6 days

0

26

Exmark 1-653366

HUB

$25.99

$

In Stock, only 1 left!

0

27

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

29

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

31

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

32

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

33

Exmark 103-0126

BUSHING, LOCATOR

$6.99

$

In Stock, Qty 11

0

34

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

35

Exmark 1-654560

103-3585
(Superseded to 103-3585)

$119.99

$

In Stock, only 1 left!

0

36

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

39

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

Lhp 44 & 48 Units.

$

$

Not available

Lhp 52 Units

$

$

Not available

Lz 52 Units

$

$

Not available

40

Exmark 1-809112

3290-148
(Superseded to 3290-148)

$0.99

$

In Stock, Qty 11

0

41

Exmark 1-803076

SCREW

$1.49

$

Usually ships in 3-6 days

0

42

Exmark 3274-107

SCREW-HSBH

$5.49

$

In Stock, only 4 left!

0

43

Exmark 1-353050

SHAFT-CATCHER, GRASS

$17.99

$

In Stock, only 2 left!

0

44

Exmark 1-806323

PIN-ROLL

$1.49

$

In Stock, only 3 left!

0

45

Exmark 1-653596-03

PLATE-BACKING, BLOWER

$50.99

$

In Stock, only 1 left!

0

46

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 8

0

47

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

48

Exmark 1-653443-03

PLATE, FILLER

$55.99

$

In Stock, only 1 left!

0

49

Exmark 103-1042-03

PLATE, BLOCKER

$70.99

$

In Stock, only 1 left!

0

50

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

51

Exmark 103-1103

IDLER-FLAT

$68.99

$

In Stock, only 1 left!

0

52

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

53

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

54

Exmark 1-653600

BUSHING

$20.99

$

In Stock, only 1 left!

0

55

Exmark 1-653407

103-4235
(Superseded to 103-4235)

$304.99

$

Usually ships in 3-6 days

0

Exmark 103-0812

103-4236
(Superseded to 103-4236)

$

$

Not available

56

Exmark 1-653406

109-2033
(Superseded to 109-2033)

$230.99

$

Usually ships in 3-6 days

0

Exmark 1-653540

109-2034
(Superseded to 109-2034)

Note: Also used in Adapter Kit 103-0328 on 48" deck Lazer HP model LHP4818KC Serial Number 176621 & below.

$225.99

$

Usually ships in 3-6 days

0

Exmark 103-0811

109-2036
(Superseded to 109-2036)

Note: Also used in Adapter Kit 103-0328 on 48" deck Lazer HP model LHP4818KC Serial Number 176621 & below.

$287.99

$

Usually ships in 3-6 days

0

57

Exmark 1-653429

LATCH DRAW

$70.99

$

In Stock, only 2 left!

0

58

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

59

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

Exmark 103-0401

ASM,BLOWER 44/48 - SERVIC

Note: (Includes items 1-54)

$1757.99

$

Usually ships in 3-6 days

0

Exmark 103-0400

ASM,BLOWER 52 SERVICE ONL

Note: (Includes items 1-54)

$1806.99

$

Usually ships in 3-6 days

0

Exmark 103-1209

ASM, BLOWER LZUV52 - SERV

Note: (Includes items 1-54)

$1918.99

$

In Stock, only 1 left!

0
