Ultra Vac - Exmark Ultra Vac Bagger (SN: 220000 - 259999) (2000) Blower Assembly - Lazer Z 60 & 72 and Lazer Z XP 60 & 72 Parts Diagram

Ultra Vac Bagger

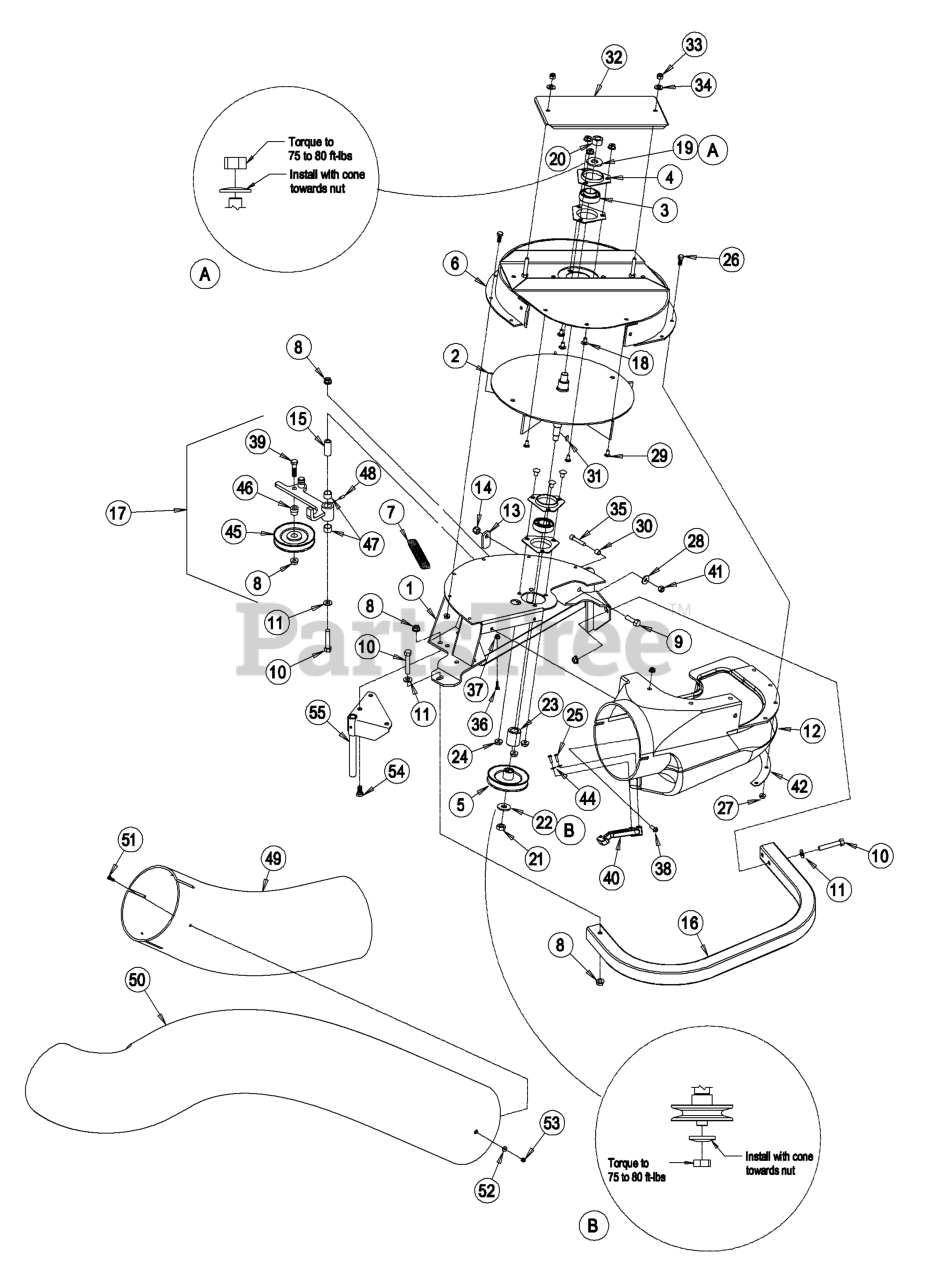

Blower Assembly - Lazer Z 60 & 72 and Lazer Z XP 60 & 72 Parts Diagram

  • Title

1

Exmark 103-0454-03

109-1133-03
(Superseded to 109-1133-03)

$644.99

$

Usually ships in 3-6 days

0

2

Exmark 103-0455-03

103-0455
(Superseded to 103-0455)

$441.99

$

Usually ships in 3-6 days

0

3

Exmark 1-653346

BEARING

$71.99

$

In Stock, Qty 9

0

4

Exmark 1-513013

HOUSING-FLANGE

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 103-0456

SHEAVE

Note: Use antiseize on bore of sheave.

$53.99

$

In Stock, only 3 left!

0

6

Exmark 103-0449

DISCONTINUED

Note: P/N (103-0457-03) with decals

$

$

Not available

7

Exmark 1-653331

SPRING-IDLER

$12.99

$

In Stock, only 3 left!

0

8

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

12

Exmark 103-0426

CHUTE, BLOWER

$332.99

$

Usually ships in 3-6 days

0

13

Exmark 1-353054

LATCH-CATCHER, GRASS

$7.99

$

In Stock, only 3 left!

0

14

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

15

Exmark 1-603044

BUSHING

$14.99

$

In Stock, Qty 5

0

16

Exmark 103-0458-01

BUMPER

$123.99

$

Usually ships in 3-6 days

0

17

Exmark 103-0448

ASM, IDLER ARM - SERVICE

Note: P/N (103-0462-03) zerk, & decal

$154.99

$

In Stock, only 1 left!

0

18

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 7

0

19

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

20

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

21

Exmark 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

22

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

23

Exmark 103-0460

SPACER

$20.99

$

In Stock, only 1 left!

0

24

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

26

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

28

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

29

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

30

Exmark 103-0126

BUSHING, LOCATOR

$6.99

$

In Stock, Qty 11

0

31

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

32

Exmark 103-1094

103-3583
(Superseded to 103-3583)

Note: P/N (103-1030-03) with decal

$98.99

$

Usually ships in 3-6 days

0

33

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

36

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

37

Exmark 1-809112

3290-148
(Superseded to 3290-148)

$0.99

$

In Stock, Qty 11

0

38

Exmark 1-803076

SCREW

$1.49

$

Usually ships in 3-6 days

0

39

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Exmark 1-653429

LATCH DRAW

$70.99

$

In Stock, only 2 left!

0

41

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

42

Exmark 103-0461-03

PLATE-BACKING, BLOWER

$15.99

$

In Stock, only 1 left!

0

44

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45

Exmark 103-0483

IDLER

$53.99

$

In Stock, only 4 left!

0

46

Exmark 1-653367

HUB,SPACER

$23.99

$

Usually ships in 3-6 days

0

47

Exmark 1-653600

BUSHING

$20.99

$

In Stock, only 1 left!

0

48

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

49

Exmark 103-0427

103-2420
(Superseded to 103-2420)

$

$

Not available

50

Exmark 103-0424

109-3525
(Superseded to 109-3525)

$466.99

$

Usually ships in 3-6 days

0

Exmark 103-0425

109-1968
(Superseded to 109-1968)

$354.99

$

Usually ships in 3-6 days

0

51

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

52

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

53

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

54

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

55

Exmark 103-0445-03

PIN-MOUNT

$72.99

$

In Stock, only 2 left!

0

56

Exmark 103-0450

103-2991
(Superseded to 103-2991)

Note: (Includes items 1-48 & decals)

$1730.99

$

Usually ships in 3-6 days

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0
