Ultra Vac Bagger for LHP Mower

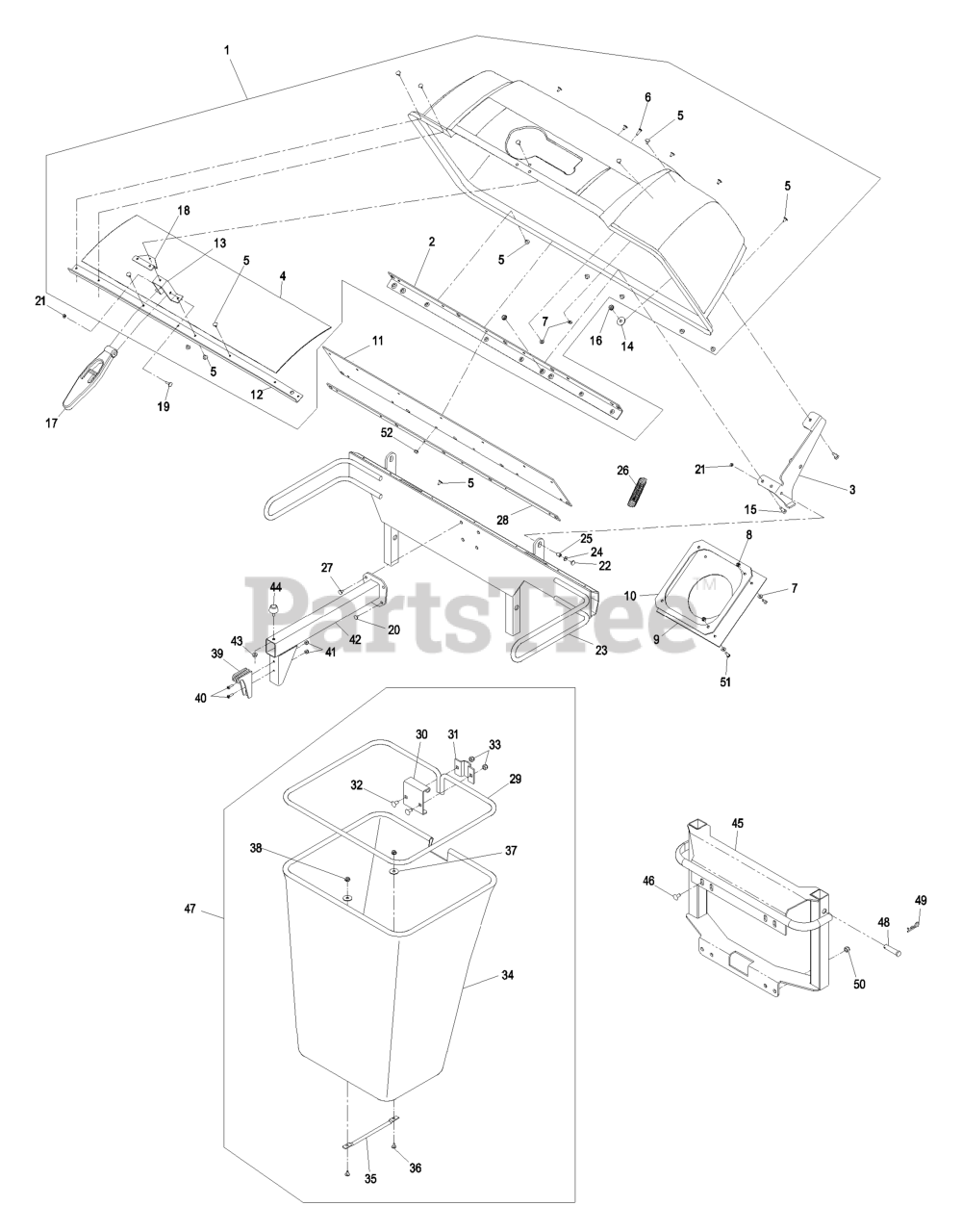

Hood And Bag Assembly Parts Diagram

  • Title

1

Exmark 1-654597

ASM, HOOD

Note: Includes items 2,4,7,12,13,18 riveted together and Decal.

$684.99

$

Usually ships in 3-6 days

0

2

Exmark 1-653397-03

STIFFENER-BAGGER, TOP

$83.99

$

Usually ships in 3-6 days

0

3

Exmark 1-652395-03

HINGE ASM

$95.99

$

Usually ships in 3-6 days

0

4

Exmark 114967

SCREEN-BAGGER

$38.99

$

In Stock, only 3 left!

0

5

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

6

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

7

Exmark 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

8

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Exmark 1-653561

SEAL-CHUTE

$19.99

$

In Stock, only 4 left!

0

10

Exmark 1-653598-03

CLAMP-SEAL

$80.99

$

Usually ships in 3-6 days

0

11

Exmark 1-653425

SEAL

$78.99

$

Usually ships in 3-6 days

0

12

Exmark 1-653400-03

SUPPORT-SCREEN

$87.99

$

Usually ships in 3-6 days

0

13

Exmark 1-653519

ANCHOR-LATCH

$88.99

$

Usually ships in 3-6 days

0

14

Exmark 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

0

15

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

17

Exmark 1-653403

LATCH

$80.99

$

In Stock, Qty 6

0

18

Exmark 1-653535

REINFORCEMENT-LATCH

$49.99

$

Usually ships in 3-6 days

0

19

Exmark 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

21

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

22

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Exmark 103-4738-03

BAGGER UPRIGHT ASM

$713.99

$

Usually ships in 3-6 days

0

24

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

25

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

26

Exmark 1-653544

SPRING-EXTENSION

$8.49

$

In Stock, only 2 left!

0

27

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

28

Exmark 1-653528-03

PLATE-BACKING

$68.99

$

Usually ships in 3-6 days

0

29

Exmark 1-653529-03

FRAME-BAG

$120.99

$

Usually ships in 3-6 days

0

30

Exmark 114973-03

HANGER-BAG

$26.99

$

In Stock, only 1 left!

0

31

Exmark 114974-03

CLAMP

$14.99

$

Usually ships in 3-6 days

0

32

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

33

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Exmark 1-654389

116-3518
(Superseded to 116-3518)

$115.99

$

Usually ships in 3-6 days

0

35

Exmark 1-653566

HANDLE-BAG

$12.99

$

In Stock, only 2 left!

0

36

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

37

Exmark 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

0

38

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

39

Exmark 1-653404

CATCH

$37.99

$

In Stock, Qty 7

0

40

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

41

Exmark 3290-148

NUT-HF

$0.99

$

In Stock, Qty 11

0

42

Exmark 103-5124-03

SUPPORT-BAG

$165.99

$

Usually ships in 3-6 days

0

43

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

44

Exmark 1-523420

109-2365

$14.99

$

Usually ships in 3-6 days

0

45

Exmark 1-652308-03

BAGGER MOUNT ASM

$520.99

$

In Stock, only 1 left!

0

46

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

47

Exmark 1-654390

116-3519
(Superseded to 116-3519)

$269.99

$

Usually ships in 3-6 days

0

48

Exmark 1-808289

PIN-CLEVIS

$11.99

$

Usually ships in 3-6 days

0

49

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

50

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

51

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

52

Exmark 32153-1

NUT-LOCK, SIDE

$3.99

$

In Stock, only 1 left!

0
