Exmark Ultra Vac - Exmark Ultra Vac Bagger for LHP Mower (SN: 510000 - 599999) (2005) Blower Assembly Parts Lookup with Diagrams

1

Exmark 103-2874-03

WLD, BLOWER MOUNT

Note: Includes items 40 and 41.

$868.99

$

Usually ships in 3-6 days

Exmark 103-2875-03

109-1119-03

(Superseded to 109-1119-03) 

Note: Includes items 40 and 41.

$748.99

$

Usually ships in 3-6 days

2

Exmark 103-3815

IMPELLER

$310.99

$

In Stock, Qty 5

3

Exmark 1-653346

BEARING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) on bore of sheave and bearings.

$71.99

$

In Stock, Qty 7

4

Exmark 1-513013

HOUSING-FLANGE

$5.49

$

Usually ships in 3-6 days

5

Exmark 103-1047

SHEAVE-BLOWER

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) on bore of sheave and bearings.

$75.99

$

In Stock, Qty 6

6

Exmark 103-3589

ASM,UPPER HOUSING

$674.99

$

Usually ships in 3-6 days

7

Exmark 1-653331

SPRING-IDLER

$12.99

$

In Stock, only 3 left!

8

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

9

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

10

Exmark 1-653600

BUSHING

$20.99

$

In Stock, only 1 left!

11

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

12

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

13

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

14

Exmark 1-353054

LATCH-CATCHER, GRASS

$7.99

$

In Stock, only 3 left!

15

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

16

Exmark 1-653322

IDLER-INSIDE

$64.99

$

In Stock, only 2 left!

17

Exmark 103-0130

BUSHING-PIVOT, IDLER

$18.99

$

In Stock, Qty 6

18

Exmark 103-1103

IDLER-FLAT

$68.99

$

Usually ships in 3-6 days

19

Exmark 103-2876

ASM, IDLER ARM - SERVICE

$164.99

$

In Stock, only 3 left!

20

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

21

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

22

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

23

Exmark 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

24

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

25

Exmark 1-653365

SPACER

$27.99

$

Usually ships in 3-6 days

26

Exmark 1-653366

HUB

$25.99

$

In Stock, only 1 left!

27

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

28

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

29

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

30

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

31

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

32

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

33

Exmark 103-0126

BUSHING, LOCATOR

$6.99

$

In Stock, Qty 11

34

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

35

Exmark 103-3585

ASM, BEARING COVER

$119.99

$

In Stock, only 1 left!

36

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

37

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

38

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

39

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

40

Exmark 1-806323

PIN-ROLL

$1.49

$

In Stock, only 3 left!

41

Exmark 1-353050

SHAFT-CATCHER, GRASS

$17.99

$

In Stock, only 2 left!

42

Exmark 3274-107

SCREW-HSBH

$5.49

$

In Stock, only 4 left!

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

Exmark 103-0583

KIT,ACCY TUBE REPLACEMENT

$

Not available 

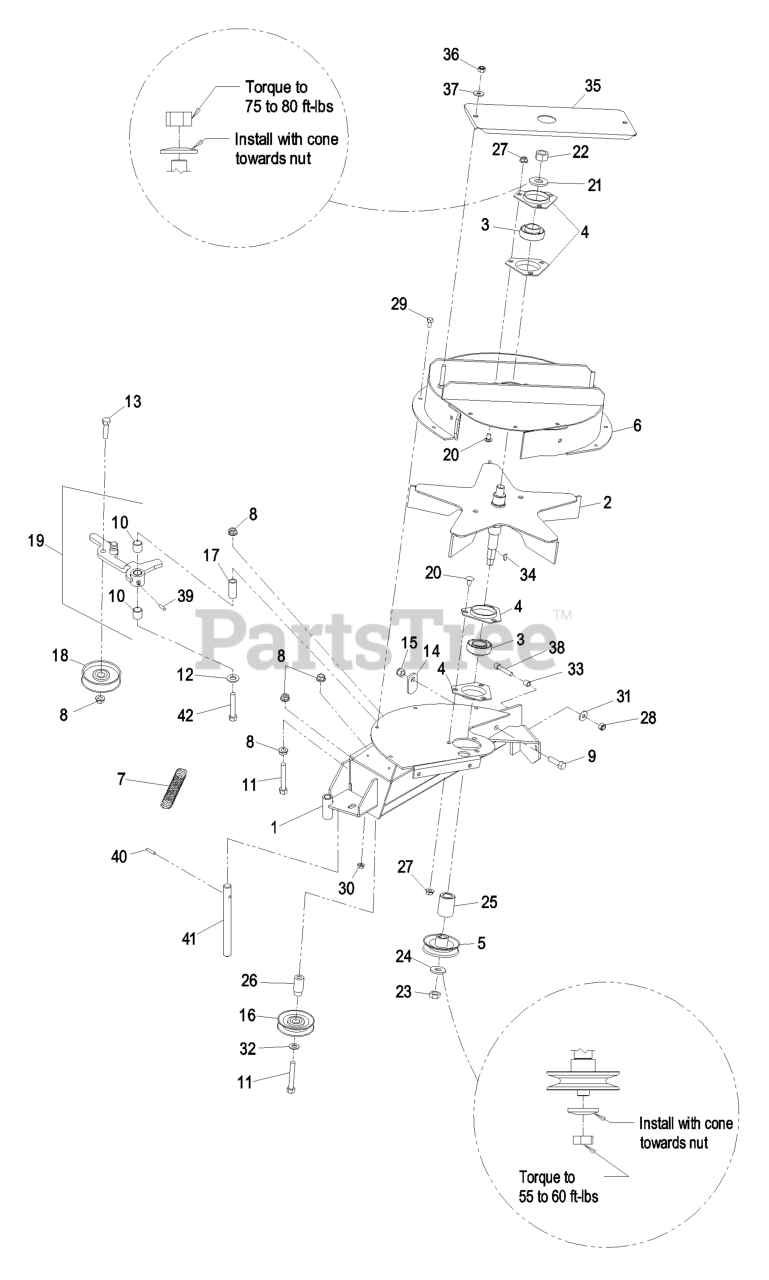

Ultra Vac - Exmark Ultra Vac Bagger for LHP Mower (SN: 510000 - 599999) (2005) Blower Assembly Parts Diagram

Blower Assembly Parts Diagram
