Ultra Vac - Exmark Ultra Vac Bagger for LHP Mower (SN: 440000 - 509999) (2004) Deck Components And Front Weights 44" Parts Diagram

Ultra Vac Bagger for LHP Mower

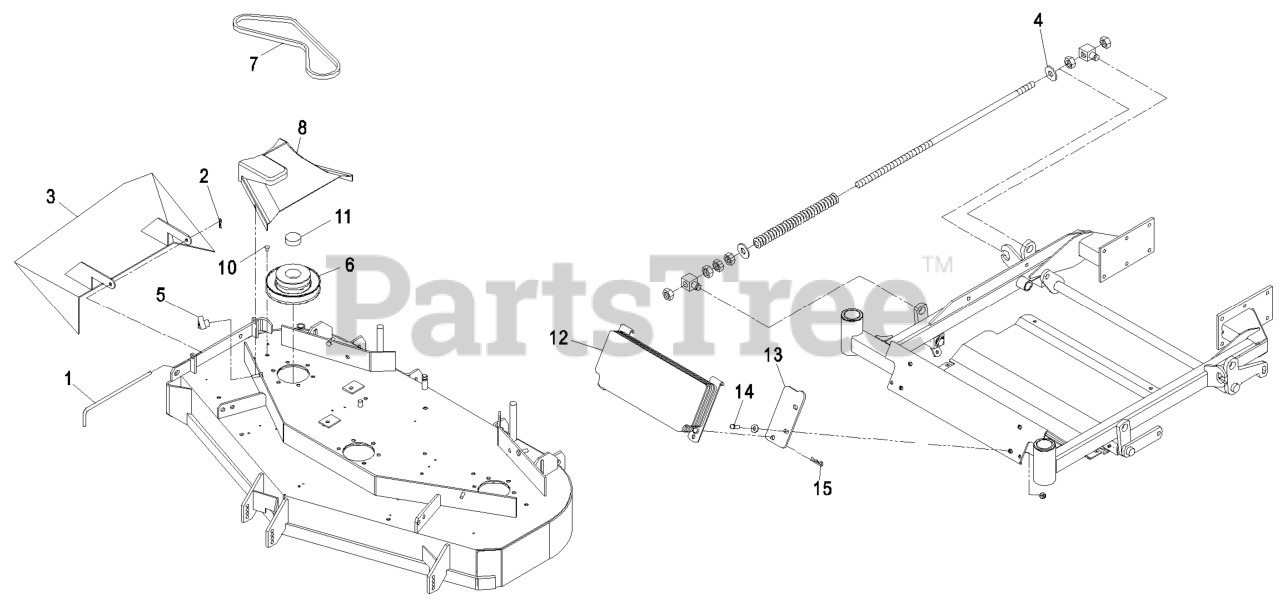

Deck Components And Front Weights 44" Parts Diagram

  • Title

Exmark 103-1315

Deck Kit 44"

$

$

Currently unavailable

1

Exmark 1-653363

PIN, CHUTE PIVOT PLTD

$

$

Not available

2

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

3

Wld, Chute 48" Sd

Note: NOT USED ON THIS APPLICATION

$

$

Not available

4

Washer, 5/8 Type B Wide

Note: NOT USED ON THIS APPLICATION

$

$

Not available

5

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

6

Exmark 1-653309

SHEAVE, BLOWER DRIVE

$336.99

$

Usually ships in 3-6 days

0

7

Exmark 1-653332

BELT-BLOWER
(Superseded to 1-653332-SL)

$29.99

$

In Stock, only 4 left!

0

8

Exmark 103-1316

COVER, BELT 44/48

$218.99

$

Usually ships in 3-6 days

0

9

Spacer, Counterweight

Note: NOT USED ON THIS APPLICATION

$

$

Not available

10

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

11

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$12.99

$

Usually ships in 3-6 days

0

Exmark 103-5629

Front Weight Kit

Note: Includes items 12, 13, 14 and 15. Kit is used only when an Ultra Vac is installed on any Lazer Z HP with a 2 post ROPS.

$435.99

$

Usually ships in 0 days

0

12

Exmark 103-5651

Asm, Weight (103-5608-01) W/Decals

$

$

Not available

13

Exmark 103-5609-01

PLATE-WEIGHT MOUNTING

$

$

Not available

14

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Exmark 995124

Hairpin, Cotter

$

$

Currently unavailable

Exmark 103-5651-01

Asm, Weight

$

$

Currently unavailable

Exmark 103-0328

Adapter Kit

Note: For Lazer HP model LHP4818KC before serial number 176,621.

$

$

Currently unavailable

Exmark 103-0325-03

TUBE,SPACER

$

$

Not available

Exmark 1-653540

109-2034
(Superseded to 109-2034)

$250.99

$

Usually ships in 3-6 days

0

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0
