Ultra Vac - Exmark Ultra Vac Bagger for Lazer HP Mower (SN: 370000 - 439999) (2003) Drive Kit Assembly 44" (103-1315) Parts Diagram

Ultra Vac Bagger for Lazer HP Mower

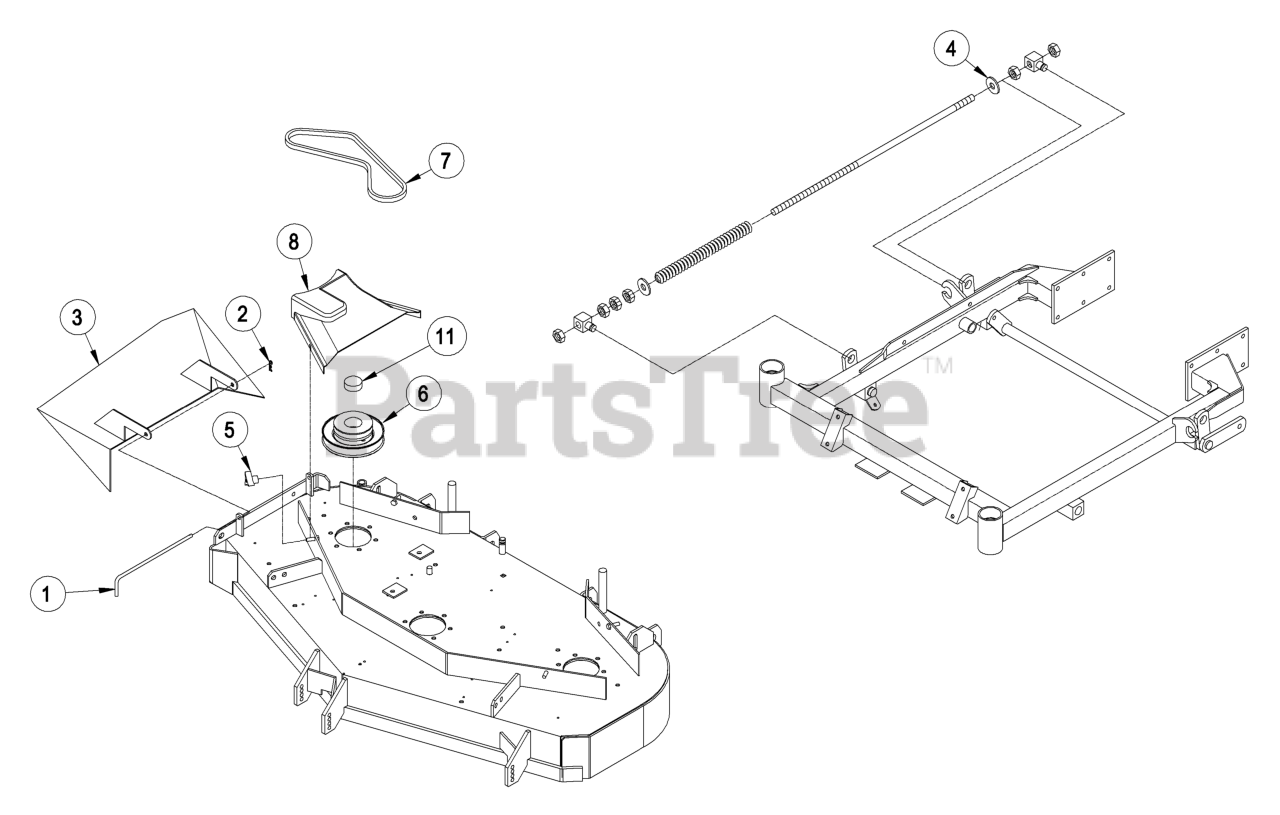

Drive Kit Assembly 44" (103-1315) Parts Diagram

  • Title

1

Exmark 1-653363

PIN, CHUTE PIVOT PLTD

$8.49

$

Usually ships in 3-6 days

0

2

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

3

Wld, Chute 48" Sd

Note: Not used on this application.

$

$

Not available

4

2.25 O.D. Washer

Note: Not used on this application.

$

$

Not available

5

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

6

Exmark 1-653309

SHEAVE, BLOWER DRIVE

$298.99

$

Usually ships in 3-6 days

0

7

Exmark 1-653332

BELT-BLOWER
(Superseded to 1-653332-SL)

$29.99

$

In Stock, only 4 left!

0

8

Exmark 103-1316

COVER, BELT 44/48

$197.99

$

Usually ships in 3-6 days

0

9

Spacer, Counterweight

Note: Not used on this application.

$

$

Not available

10

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

11

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$11.99

$

Usually ships in 3-6 days

0

Exmark 103-1315

Drive Kit Assembly

$

$

Currently unavailable
