Ultra 52 (966690607) - Dixon 52" Ultra Zero-Turn Mower (2013-11) IGNITION SYSTEM Parts Diagram

52" Ultra Zero-Turn Mower

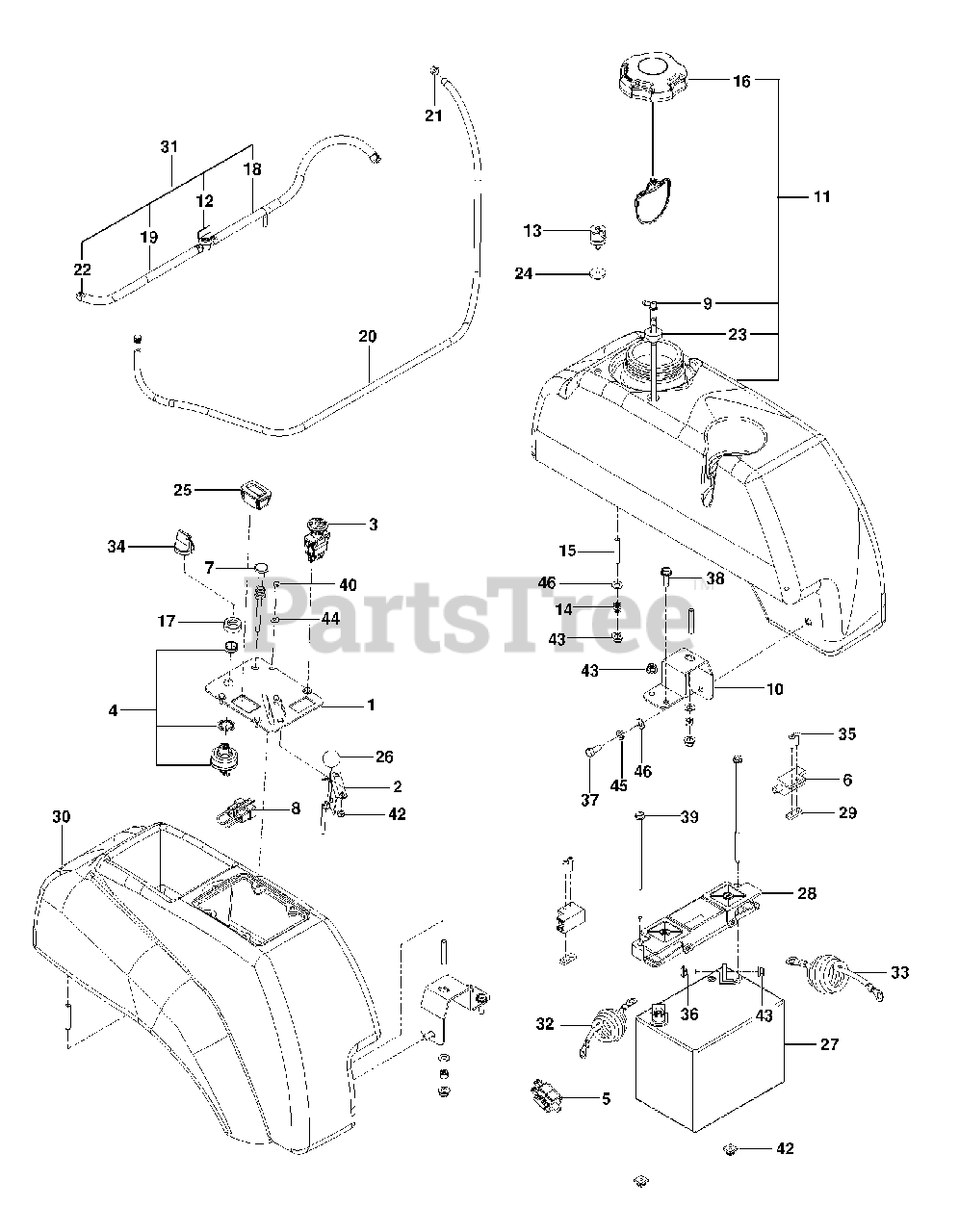

IGNITION SYSTEM Parts Diagram

  • Title

1

Dixon 574841204

PLATE, CONSOLE, BLK
(Superseded to 592877402)

$7.49

$

In Stock, only 1 left!

0

2

Dixon 539112438

THROTTLE CABLE

$

$

Not available

3

Dixon 539131627

SWITCH, PTO 10 AMP
(Superseded to 597520401)

$100.99

$

In Stock, Qty 5

0

4

Dixon 574455401

SWITCH, IGNITION, INDAK

$34.99

$

Usually ships in 3-10 days

0

5

Dixon 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 12

0

6

Dixon 532109553

No Description Available
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

7

Dixon 539112439

CHOKE CABLE

$34.99

$

In Stock, only 1 left!

0

8

Dixon 575321001

PLUG, TIMER

$14.99

$

Usually ships in 3-10 days

0

9

Dixon 576469201

FITTING, FUEL

$31.99

$

In Stock, only 1 left!

0

10

Dixon 539131671

SUPPORT, TANK, BLK

$68.99

$

In Stock, only 1 left!

0

11

Dixon 585722302

No Description Available
(Superseded to 597426518)

$273.99

$

Usually ships in 3-10 days

0

12

Dixon 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

13

Dixon 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 14

0

14

Dixon 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

15

Dixon 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

16

Dixon 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

Usually ships in 3-10 days

0

17

Dixon 539103178

OBSOLETE - CAP IGNITION NUT

$4.99

$

Usually ships in 3-10 days

0

18

Dixon 539107765

HOSE, FUEL .25 ID X 26"

$7.99

$

In Stock, only 2 left!

0

19

Dixon 539932956

GAS LINE 10"

$

$

Not available

20

Dixon 576660609

No Description Available

$10.99

$

Usually ships in 3-10 days

0

21

Dixon 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

22

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

23

Dixon 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 12

0

24

Dixon 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, only 4 left!

0

25

Dixon 532401763

No Description Available
(Superseded to 594919101)

$24.99

$

In Stock, Qty 6

0

26

Dixon 539133049

KNOB ROUND BALL

$18.99

$

Usually ships in 3-10 days

0

27

Dixon 539102436

OBSOLETE - BATTERY, 12 V 330 AMP TBR
(Superseded to 579411601)

$

$

Not available

28

Dixon 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 1 left!

0

29

Dixon 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

30

Dixon 576683701

CONSOLE, RT-BLK

$194.99

$

Usually ships in 3-10 days

0

31

Dixon 576547801

No Description Available

$48.99

$

Usually ships in 3-10 days

0

32

Dixon 539104974

POST.CABLE LONG

$

$

Not available

33

Dixon 539107645

NEG. CABLE, 28"

$40.99

$

Usually ships in 3-10 days

0

34

Dixon 574455501

KEY, IGNITION

$6.99

$

Usually ships in 3-10 days

0

35

Dixon 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

36

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

37

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

38

Dixon 539113226

No Description Available
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

39

Dixon 539107632

BOLT - 1/4-20 X 7.5

$

$

Not available

40

Dixon 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

42

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

43

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

44

Dixon 539107629

PUSH NUT-NYLON

$4.99

$

In Stock, Qty 7

0

45

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

46

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

Dixon 575320901

HARNESS, MAIN

Note: NOT SHOWN

$206.99

$

In Stock, only 1 left!

0
