Ultra 52 (966690606) - Dixon 52" Ultra Zero-Turn Mower (2013-11) FRAME Parts Diagram

52" Ultra Zero-Turn Mower

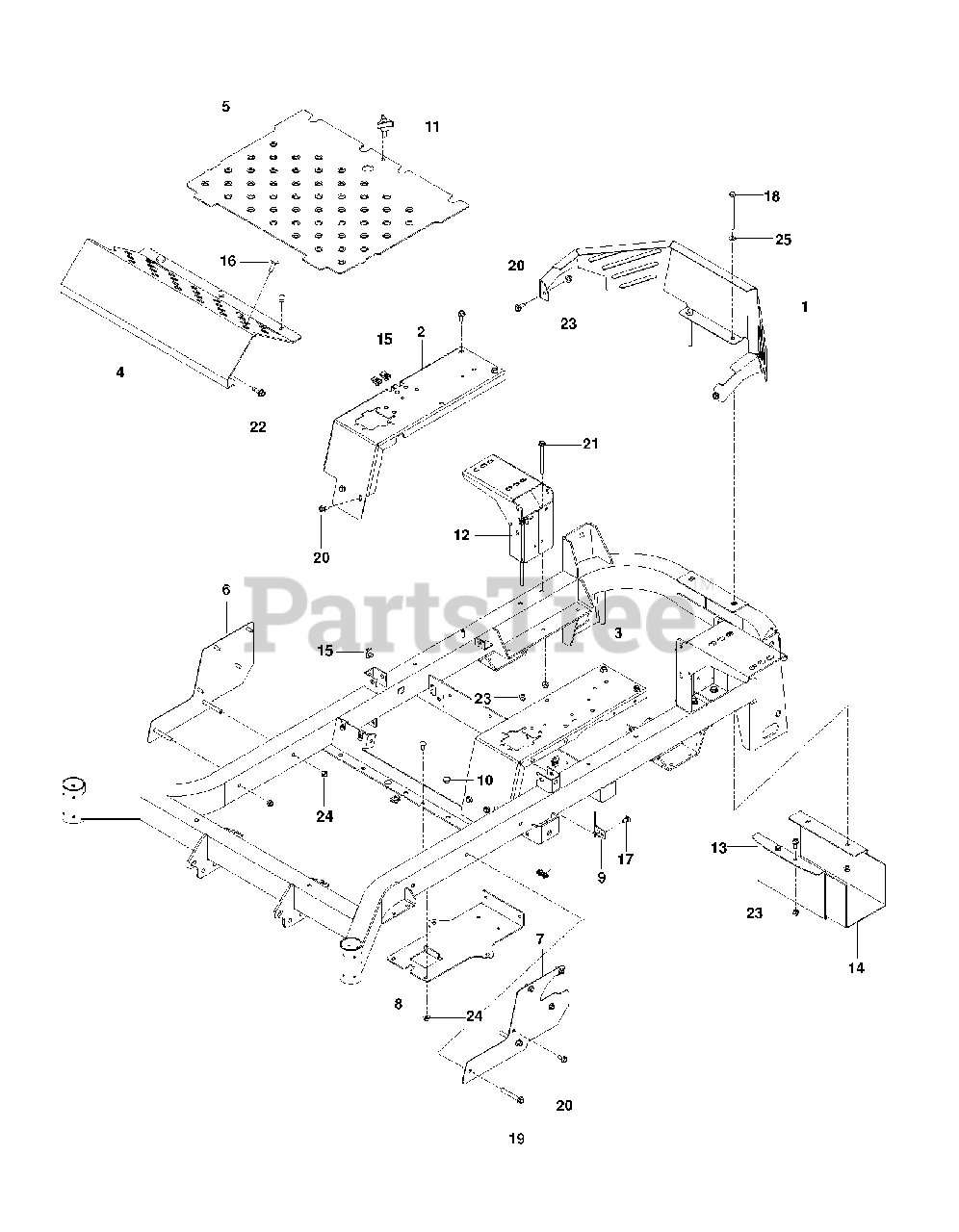

FRAME Parts Diagram

  • Title

1

Dixon 576878502

GUARD, REAR ULTRA, BLUE

$78.99

$

Usually ships in 3-10 days

0

2

Dixon 576694703

PANEL, FILLER RT, BLUE

$26.99

$

Usually ships in 3-10 days

0

3

Dixon 576694803

PANEL, FILLER LT, BLUE

$36.99

$

Usually ships in 3-10 days

0

4

Dixon 521941302

PLATE, FOOT REST - RAM DK BLUE

$121.99

$

Usually ships in 3-10 days

0

5

Dixon 539132845

FLOOR PAN W/DECALS

$80.99

$

Usually ships in 3-10 days

0

6

Dixon 539131687

SIDE, RT, BL

$21.99

$

Usually ships in 3-10 days

0

7

Dixon 539132179

SIDE, LT, BL

$21.99

$

Usually ships in 3-10 days

0

8

Dixon 575017202

PLATE, BATTERY, BLACK

$60.99

$

Usually ships in 3-10 days

0

9

Dixon 505256401

No Description Available

$13.99

$

Usually ships in 3-10 days

0

10

Dixon 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

11

Dixon 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

12

Dixon 575533602

MOUNT, TANK, ZT BLK

$74.99

$

Usually ships in 3-10 days

0

13

Dixon 575230402

No Description Available

$91.99

$

Usually ships in 3-10 days

0

14

Dixon 539132859

HEAT SHIELD

$36.99

$

Usually ships in 3-10 days

0

15

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

16

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

18

Dixon 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

19

Dixon 539131781

HHFS 3/8-16 X 2 3/4

$5.99

$

In Stock, only 2 left!

0

20

Dixon 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

21

Dixon 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

22

Dixon 539113226

No Description Available
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

23

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

24

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

25

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0
