Ultra 52 (966690605) - Dixon 52" Ultra Zero-Turn Mower (2013-11) HYDRAULIC PUMP- MOTOR Parts Diagram

52" Ultra Zero-Turn Mower

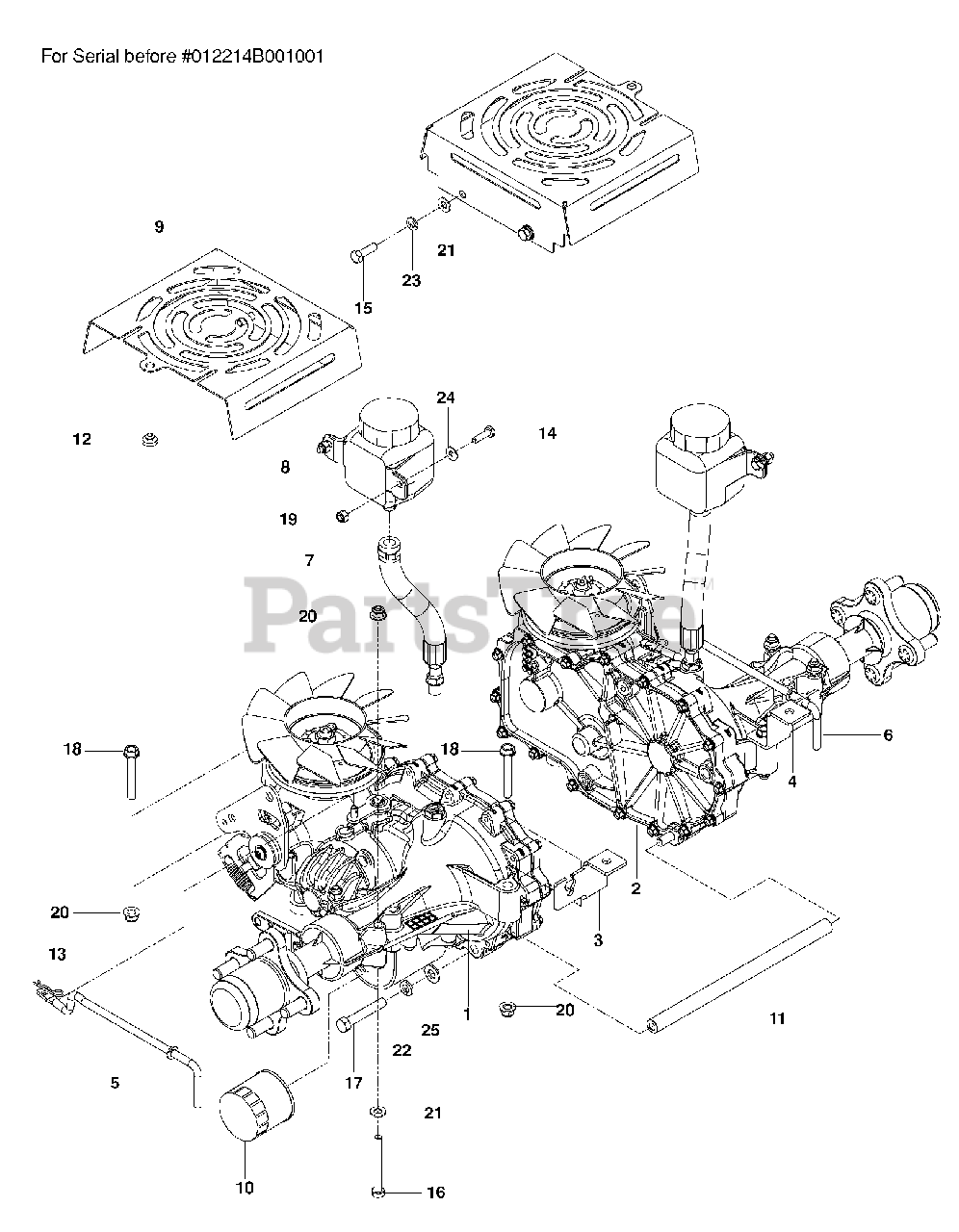

HYDRAULIC PUMP- MOTOR Parts Diagram

  • Title
1

Dixon 577227702

HG_TRANS ZT-3100 LT

$

$

Not available

2

Dixon 577227701

HG_TRANS ZT-3100 RT

$

$

Not available

3

Dixon 575017102

No Description Available
(Superseded to 593279002)

$7.49

$

Usually ships in 3-10 days

0

4

Dixon 575017002

No Description Available
(Superseded to 593278902)

$7.49

$

In Stock, only 2 left!

0

5

Dixon 539131616

LINKAGE, LEFT BYPASS

$10.99

$

Usually ships in 3-10 days

0

6

Dixon 539131618

LINKAGE, RIGHT BYPASS

$9.99

$

Usually ships in 3-10 days

0

7

Dixon 574892101

HOSE ASSY, EXPANSION

$62.99

$

In Stock, only 2 left!

0

8

Dixon 574811301

HG_TANK, EXPANSION, 350ML

$66.99

$

In Stock, only 1 left!

0

9

Dixon 575778202

SHIELD, FAN, BLK
(Superseded to 584994202)

$13.99

$

Usually ships in 3-10 days

0

10

Dixon 539113466

HG_FILTER, ZT4800

$60.99

$

Usually ships in 3-10 days

0

11

Dixon 574868501

TUBE, SPACER, 3400

$

$

Not available

12

Dixon 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

13

Dixon 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539990643

HCS 1/4-20X7/8 GR5

$3.99

$

Usually ships in 3-10 days

0

15

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

16

Dixon 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

17

Dixon 539108551

HCS 3/8-16X2-1/4 LOC PATCH GR8

$6.49

$

Usually ships in 3-10 days

0

18

Dixon 574233801

HHFS 5/16-18 X 2.25 GD 5

$4.99

$

Usually ships in 3-10 days

0

19

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

20

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

21

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

22

Dixon 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

23

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

24

Dixon 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

25

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0
