Ultra 52 (966690603) - Dixon 52" Ultra Zero-Turn Mower (2012-08) SEAT Parts Diagram

52" Ultra Zero-Turn Mower

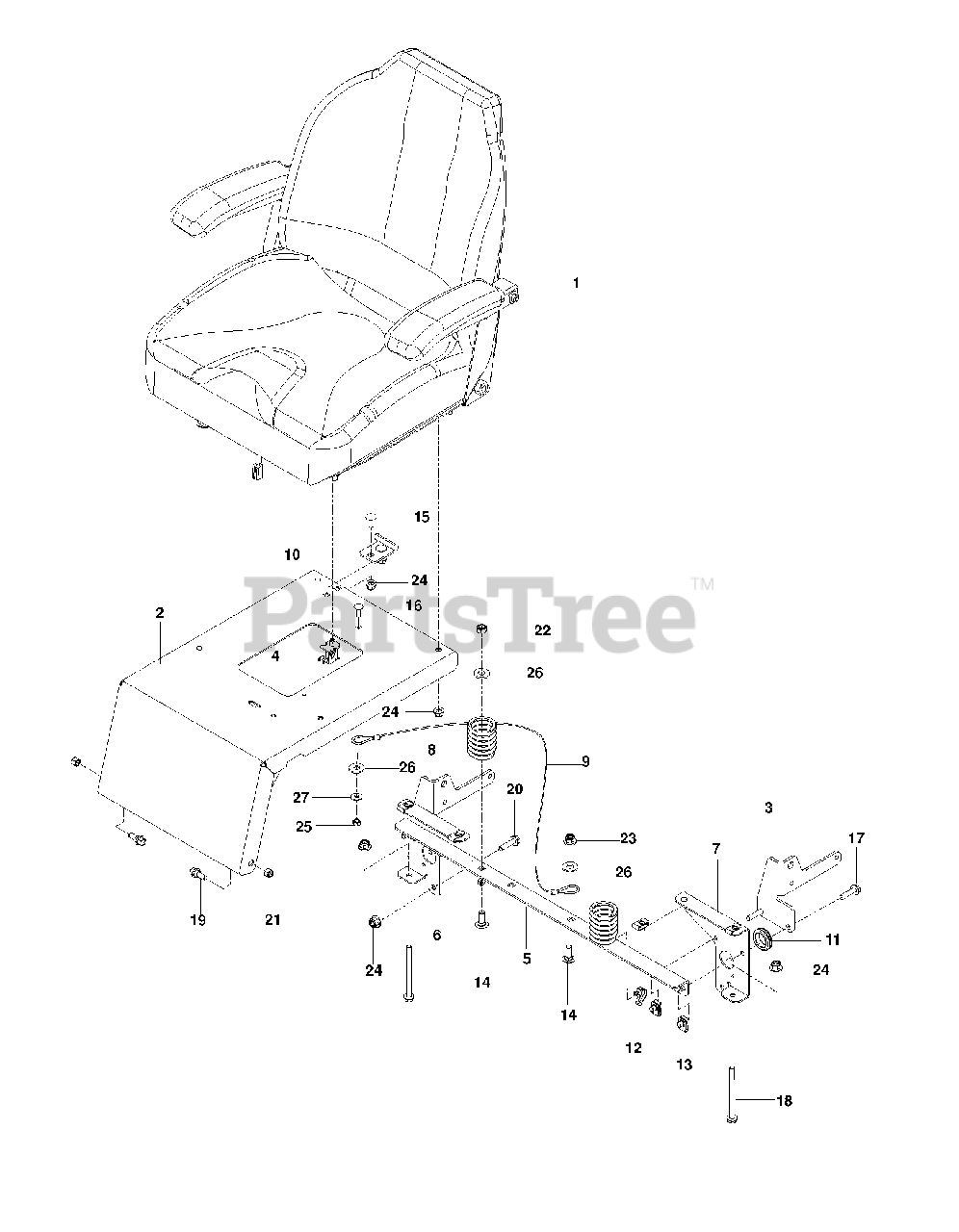

SEAT Parts Diagram

  • Title
1

Dixon 576867401

No Description Available
(Superseded to 586188401)

$683.99

$

Usually ships in 3-10 days

0

2

Dixon 539132846

SEAT MOUNT, W/DECALS

$157.99

$

Usually ships in 3-10 days

0

3

Dixon 575017402

MOUNT, SEAT BELT, BLACK

$30.99

$

Usually ships in 3-10 days

0

4

Dixon 539119741

SEAT SWITCH
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

5

Dixon 539131656

SUPPORT, SEAT

$125.99

$

Usually ships in 3-10 days

0

6

Dixon 575224002

SUPPORT, RT, BLK

$42.99

$

Usually ships in 3-10 days

0

7

Dixon 575224102

SUPPORT, LT, BLK

$36.99

$

Usually ships in 3-10 days

0

8

Dixon 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 3 left!

0

9

Dixon 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

10

Dixon 539130793

STOP, SEAT - BLACK
(Superseded to 539130794)

$4.99

$

Usually ships in 3-10 days

0

11

Dixon 539105974

OBSOLETE - RUBBER GROMMET

$

$

Not available

12

Dixon 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

13

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

14

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

15

Dixon 539109100

RHSNB 5/16-18 X 3/4

$4.99

$

Usually ships in 3-10 days

0

16

Dixon 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

18

Dixon 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

19

Dixon 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

20

Dixon 539113226

No Description Available
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

22

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

23

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

24

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

25

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

26

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 539990598

WASHER 1/4 FLAT

$

$

Not available
