Ultra 52 (966690601) - Dixon 52" Ultra Zero-Turn Mower (2011-05) ENGINE PLATE Parts Diagram

52" Ultra Zero-Turn Mower

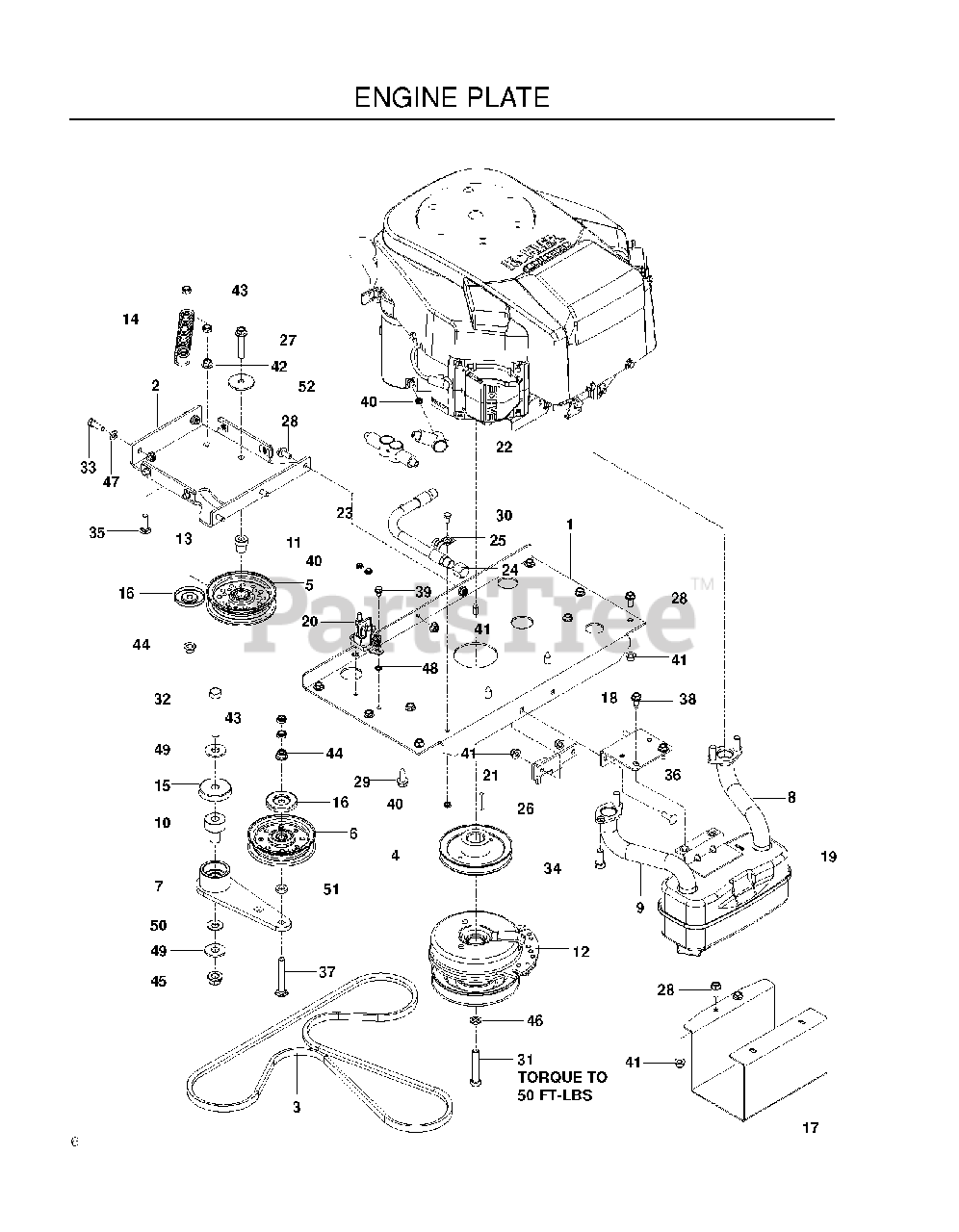

ENGINE PLATE Parts Diagram

  • Title

1

Dixon 574846302

OBSOLETE - PLATE, ENGINE, BLK
(Superseded to 575608801)

$265.99

$

Usually ships in 3-10 days

0

2

Dixon 574846402

PLATE, IDLER, BLK

$91.99

$

In Stock, only 2 left!

0

3

Dixon 574870901

BELT, HYDRO, 3400

$39.99

$

Usually ships in 3-10 days

0

4

Dixon 574811001

PULLEY, V, 1.125 BORE

$53.99

$

Usually ships in 3-10 days

0

5

Dixon 539976688

IDLER PULLEY

$

$

Not available

6

Dixon 539107620

OBSOLETE - FLAT IDLER PULLEY
(Superseded to 532175820)

$

$

Not available

7

Dixon 510041603

ARM, IDLER, STEEL, W/BGS

$56.99

$

Usually ships in 3-10 days

0

8

Dixon 532146699

PIPE-EXHAUST LH
(Superseded to 583954501)

$22.99

$

In Stock, only 1 left!

0

9

Dixon 532146700

PIPE-EXHAUST RH
(Superseded to 583954801)

$20.99

$

In Stock, only 1 left!

0

10

Dixon 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

11

Dixon 525435601

PIVOT, IDLER

$8.99

$

In Stock, only 4 left!

0

12

Dixon 574607001

CLUTCH, 200 FT-LB

$484.99

$

In Stock, only 1 left!

0

13

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

14

Dixon 510254401

SPRING, PUMP

$

$

Not available

15

Dixon 539114662

SHIELD, DUST

$

$

Not available

16

Dixon 510254501

DUST SHIELD

$

$

Not available

17

Dixon 575230402

No Description Available

$91.99

$

Usually ships in 3-10 days

0

18

Dixon 575229902

No Description Available

$34.99

$

Usually ships in 3-10 days

0

19

Dixon 539131604

MUFFLER ASM TWIN

$45.99

$

Usually ships in 3-10 days

0

20

Dixon 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

21

Dixon 575017302

No Description Available

$

$

Not available

22

Dixon 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

23

Dixon 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

24

Dixon 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

25

Dixon 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

26

Dixon 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

27

Dixon 525866201

HHFS 3/8-16 X 2.0 GD 5

$4.99

$

In Stock, only 1 left!

0

28

Dixon 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

29

Dixon 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

$5.99

$

In Stock, Qty 17

0

30

Dixon 539990071

HCS 1/4-20.

$3.99

$

Usually ships in 3-10 days

0

31

Dixon 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 8

0

32

Dixon 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

33

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

34

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

35

Dixon 539100413

RHSNB 3/8-16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

36

Dixon 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 6

0

37

Dixon 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

38

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

39

Dixon 539990302

HWST 1/4C X 3/8

$

$

Not available

40

Dixon 539108120

JAM NUT 1/4C
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

41

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

42

Dixon 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

43

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

44

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

45

Dixon 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

46

Dixon 539990247

WASHER 7/16 LOCK

$

$

Not available

47

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

48

Dixon 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

49

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

50

Dixon 539115528

CONTACT BELLSPR 1/2

$3.99

$

Usually ships in 3-10 days

0

51

Dixon 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 15

0

52

Dixon 539111897

WASHER, 3/8 SPEC

$

$

Not available

Dixon 539102757

CABLE POSITIVE

Note: NOT SHOWN

$15.99

$

Usually ships in 3-10 days

0

Dixon 539107516

KOHLER PIGTAIL-CV490S

Note: NOT SHOWN

$

$

Not available
